Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General
Discontinued model
Data version 1986-05
Carburetor

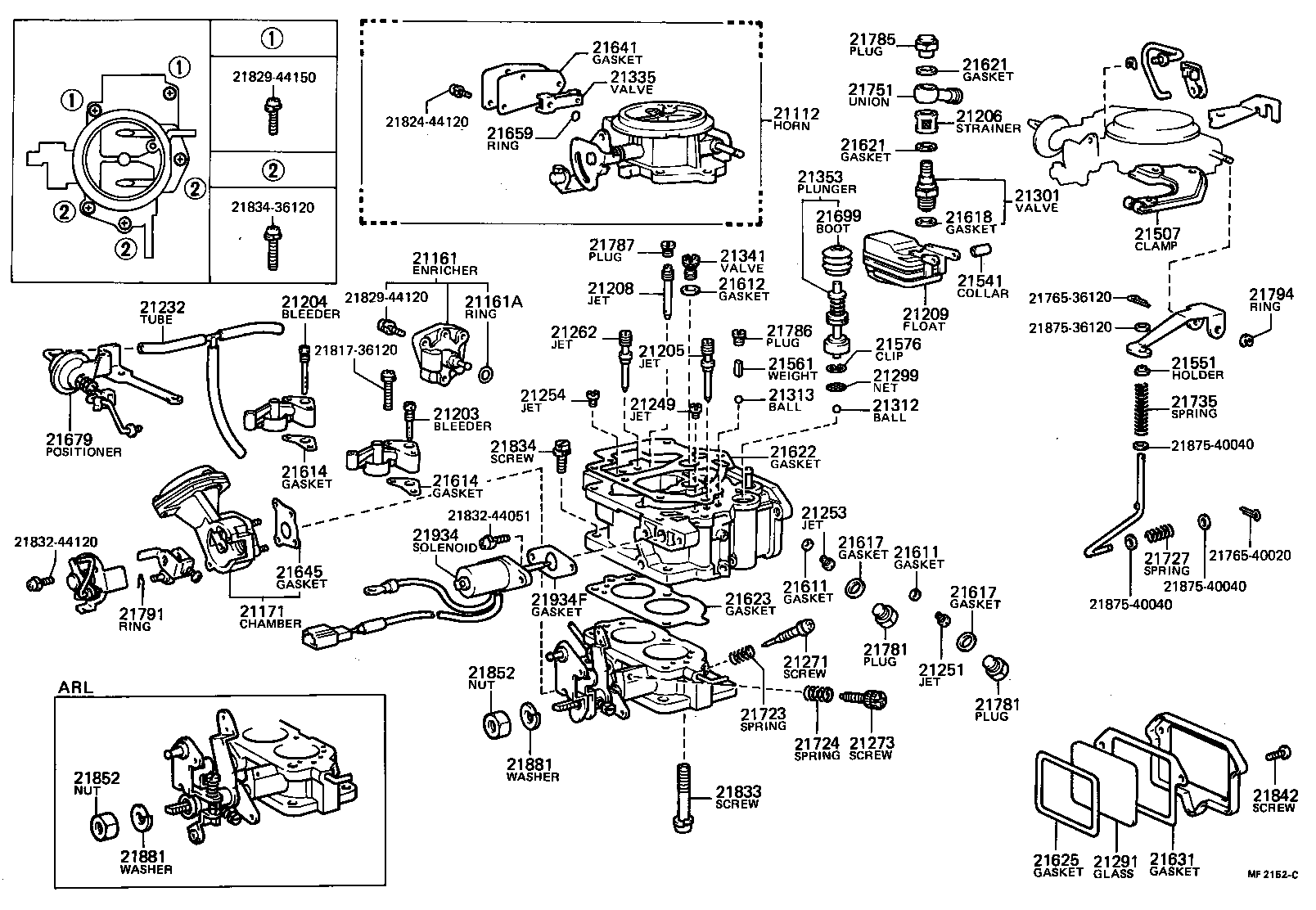

84 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 21112 | Horn, Air |
| 21161 | Enricher, Coasting |
| 21161A | Ring, O(FOR COASTING ENRICHER) |
| 21171 | Chamber, Diaphragm |
| 21203 | Bleeder Sub-assy, 1ST Main Air |
| 21204 | Bleeder Sub-assy, 2ND Main Air |
| 21205 | Jet Sub-assy, Slow |
| 21206 | Strainer Sub-assy |
| 21208 | Jet Sub-assy, Step |
| 21209 | Float Sub-assy |
| 21232 | Tube |
| 21249 | Jet, Air Bleed, NO.2 |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21254 | Jet, Step Air Bleed |
| 21255 | Jet, Power |
| 21262 | Jet, Main Air Bleed |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21291 | Glass, Level Gage |
| 21299 | Net, Pump Filter |
| 21301 | Valve Sub-assy, Needle |
| 21312 | Ball, Steel |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21335 | Valve, Thermostatic |
| 21341 | Valve, Power |
| 21351 | Piston, Power |
| 21353 | Plunger, Pump |
| 21414 | Shaft, Choke |
| 21507 | Clamp Sub-assy, Throttle Choke Wire |
| 21538 | Retainer, Ball Check |
| 21541 | Collar, Float Pin |
| 21551 | Holder, Back Spring |
| 21561 | Weight, Pump Discharge |
| 21575A | Spring(FOR STOPPER, B) |
| 21576 | Clip, Pump Strainer |
| 21611 | Gasket, Main Jet |
| 21612 | Gasket, Power Valve |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21623 | Gasket, Body Flange |
| 21625 | Gasket, Level Gage |
| 21631 | Gasket, Main Guide |
| 21641 | Gasket(FOR THERMOSTATIC VALVE COVER) |
| 21645 | Gasket, Diaphragm, Cap |
| 21647 | Gasket, Diaphragm Housing Cap |
| 21649 | Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER) |
| 21659 | Ring, O(FOR THERMOSTATIC VALVE) |
| 21679 | Positioner |
| 21698 | Diaphragm |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21726 | Spring, 1ST Idle Adjusting |
| 21727 | Spring, Pump Connecting Link Support |
| 21728 | Spring, Throttle Valve Return |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21785 | Plug, Carburetor Fuel Inlet Strainer |
| 21786 | Plug, Pump Passage |
| 21787 | Plug, Pump Jet |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21794 | Ring, Retainer, NO.1(FOR THROTTLE SHAFT) |
| 21826 | Screw, Pump Arm Set |
| 21833 | Screw, Set, NO.1(FOR CARBURETOR BODY SET) |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21842 | Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) |
| 21852 | Nut, Throttle Lever Set |
| 21867 | Spring, Diaphragm |
| 21881 | Washer, Lock(FOR THROTTLE SHAFT) |
| 21897 | Support, Front(FOR CHOKE SHAFT) |
| 21934 | Solenoid, Throttle Valve |
| 21934E | Ring, O(FOR SOLENOID VALVE) |
| 21934F | Gasket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
