Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General
Discontinued model
Data version 1986-05

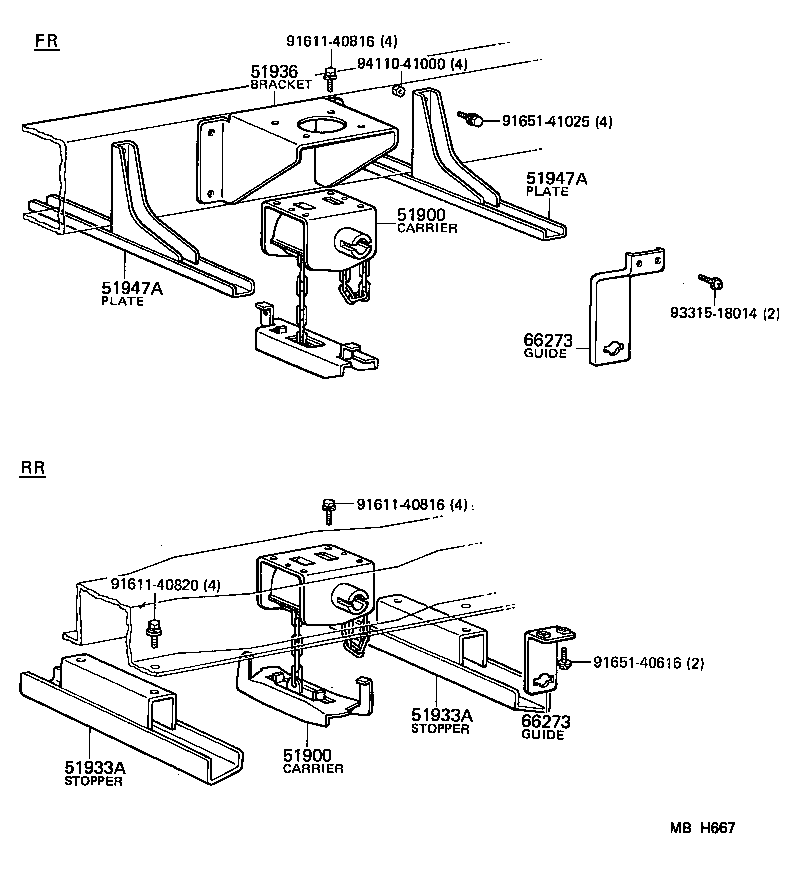

Spare Wheel Carrier
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51900 | Carrier Assy, Spare Wheel |
| 51933A | Stopper, Spare Wheel, NO.1 |
| 51936 | Bracket, Spare Wheel Carrier |
| 51947A | Plate, Spare Wheel Carrier Hinge |
| 66273 | Guide, Spare Tire Carrier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
