Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

16 part groups · 2 illustrations

Illustrations

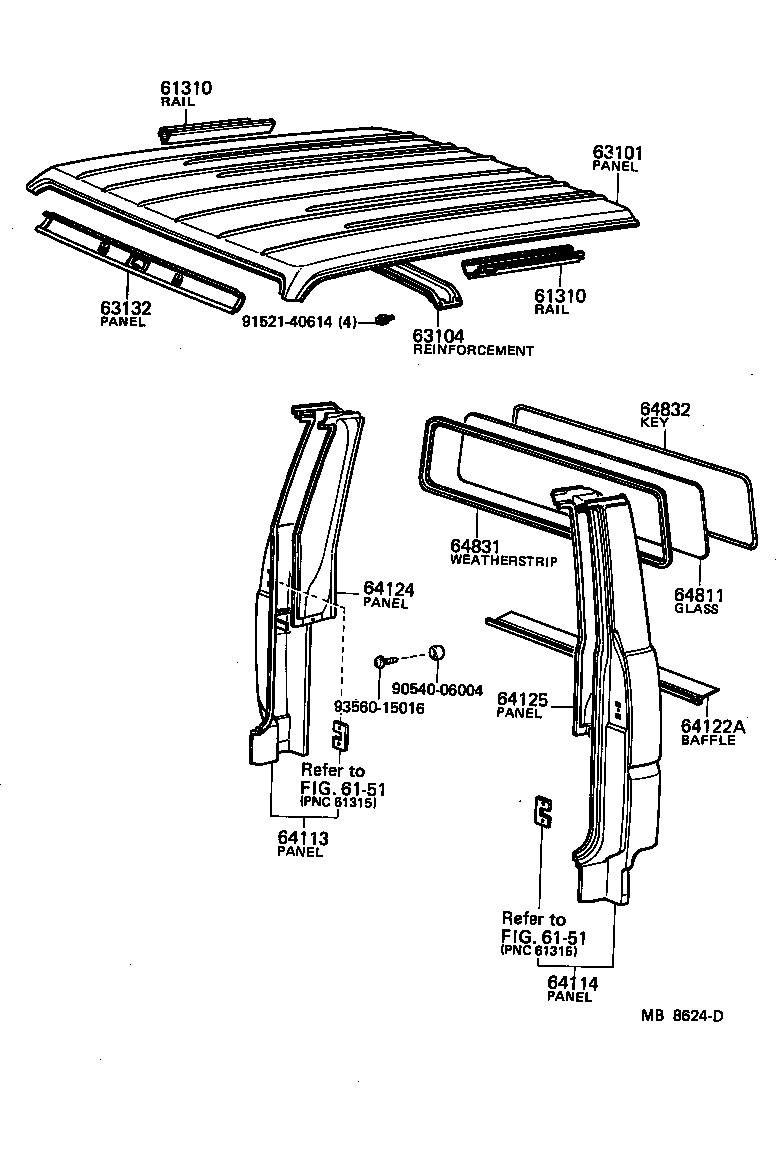

Figure MB8623F MB8623F 1979-03 → — Figure MB8624D MB8624D 1979-03 → —

Part groups

PNCDescription
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
61310 Rail Assy, Roof Side, NO.2
63101 Panel Sub-assy, Roof
63104 Reinforcement Sub-assy, Roof Panel, Center
63132 Panel, Windshield Header, Inner
64113 Panel, Back Corner, Outer RH
64114 Panel, Back Corner, Outer LH
64122A Baffle, Dust Rear Body
64122B Plate, Baffle Dust Rear Body
64122C Packing, Frame Back
64124 Panel, Back Corner, Inside, RH
64125 Panel, Back Corner, Inside, LH
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
64832 Key, Back Window Weatherstrip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
