Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

17 part groups · 4 illustrations

Illustrations

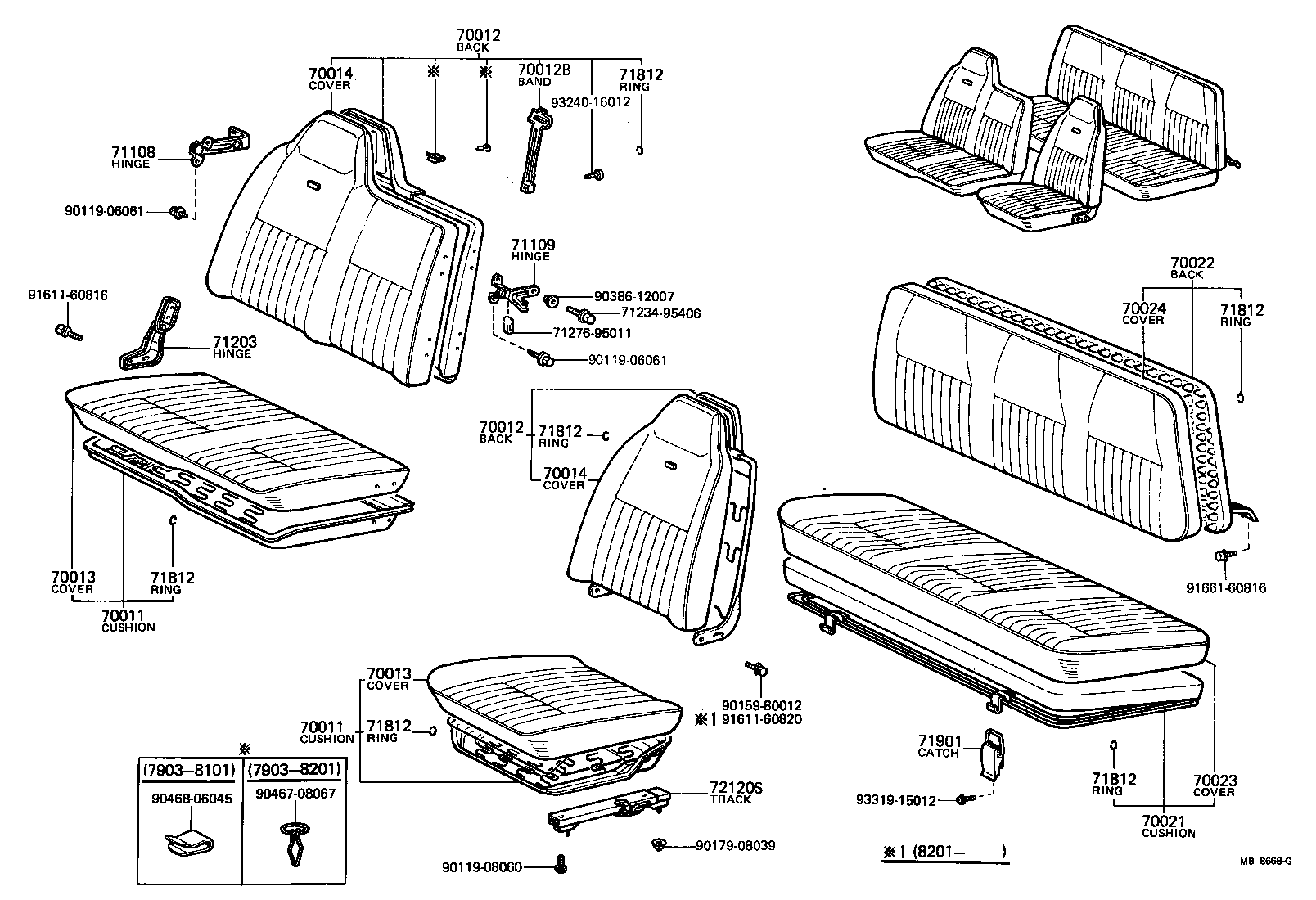

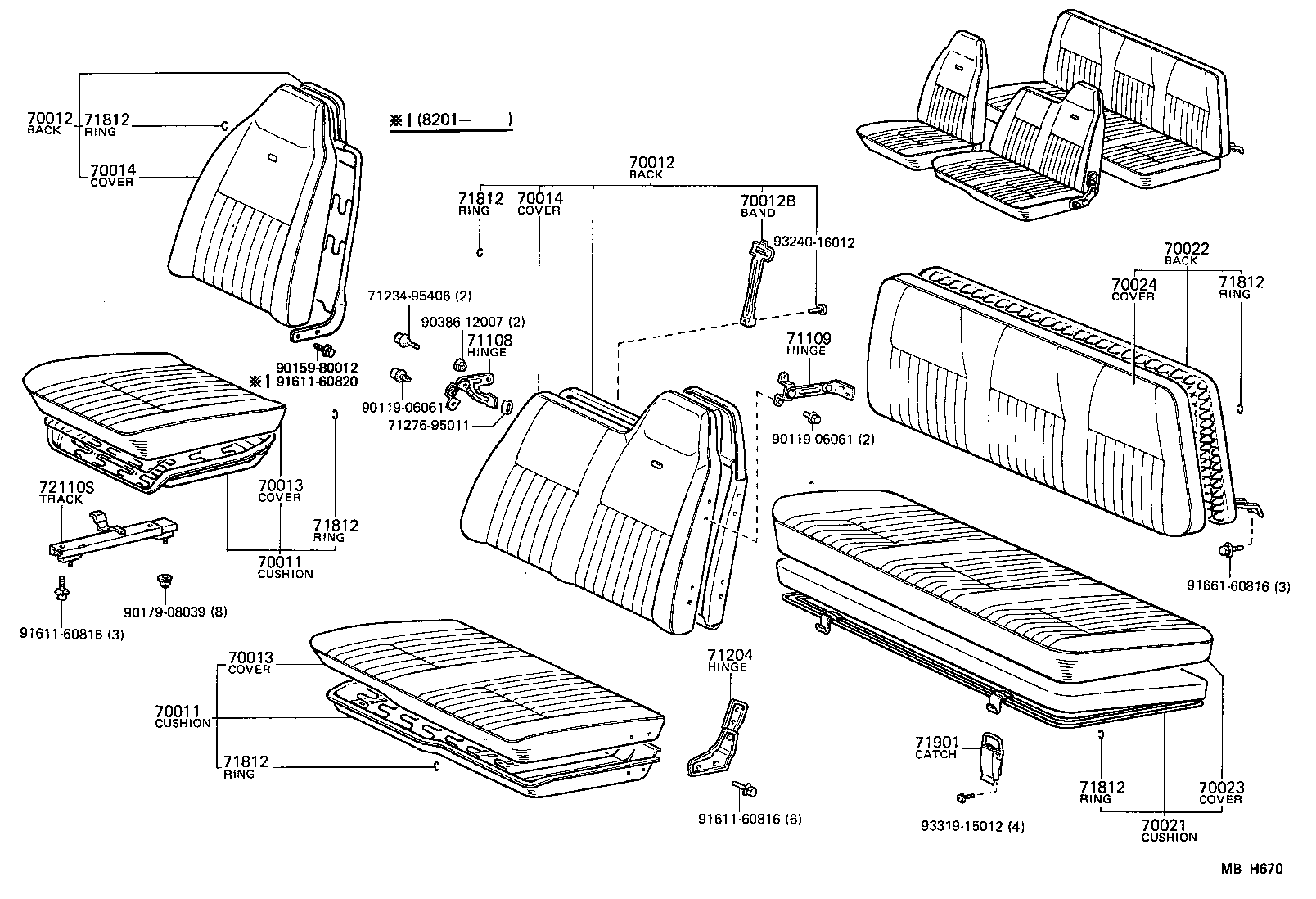

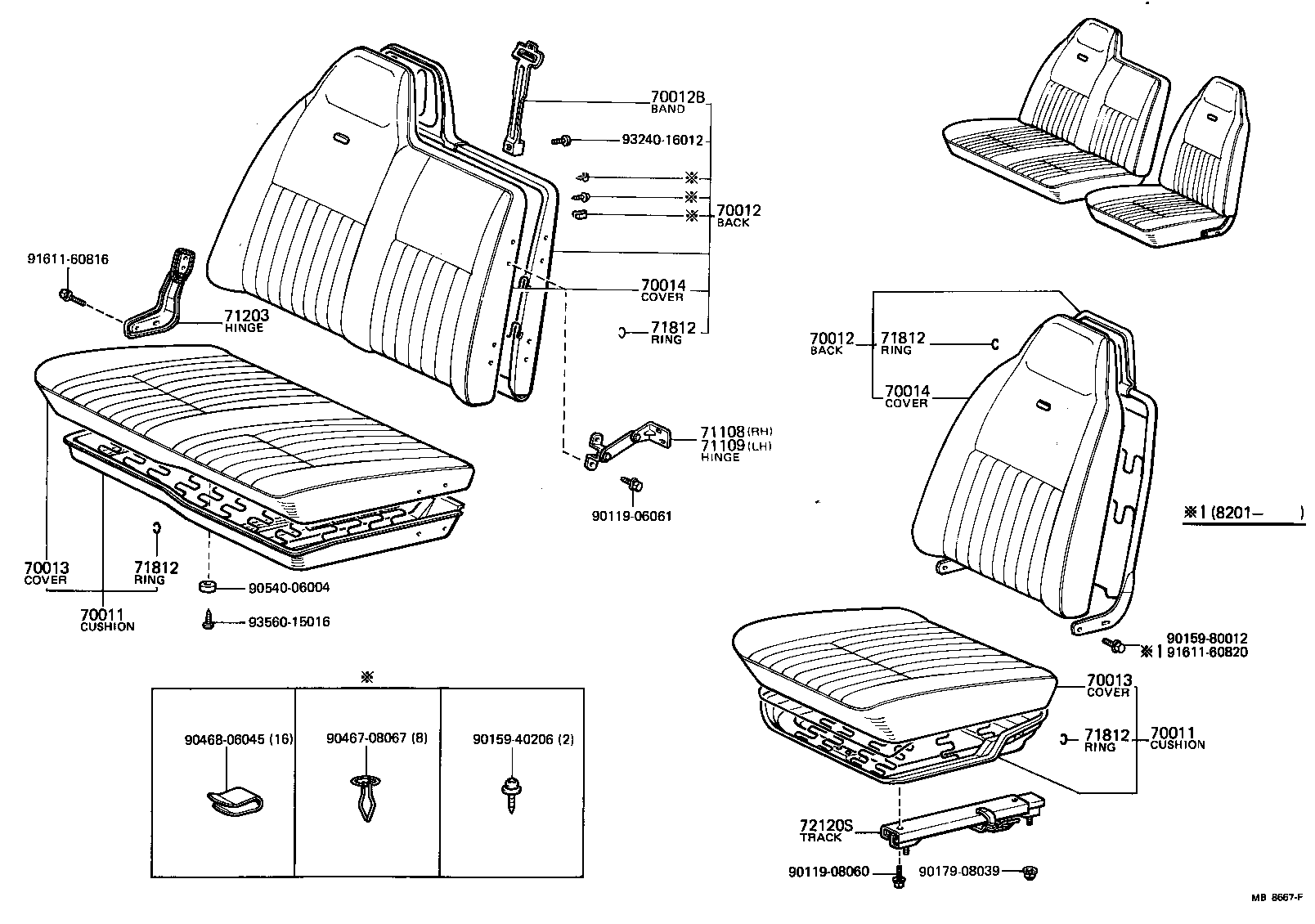

Figure MBH669 MBH669 1979-03 → — Figure MBH670 MBH670 1979-03 → — Figure MB8667F MB8667F 1979-03 → — Figure MB8668G MB8668G 1979-03 → —

Part groups

PNCDescription
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70012B Band, Engine Service Hole Cover Support
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
71108 Hinge Sub-assy, Front Seatback, Upper RH
71109 Hinge Sub-assy, Front Seatback, Upper LH
71203 Hinge Sub-assy, Passenger Seat, RH
71204 Hinge Sub-assy, Passenger Seat, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71901 Catch Sub-assy, Seat Cushion, Rear
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
