Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General
Discontinued model
Data version 1986-05

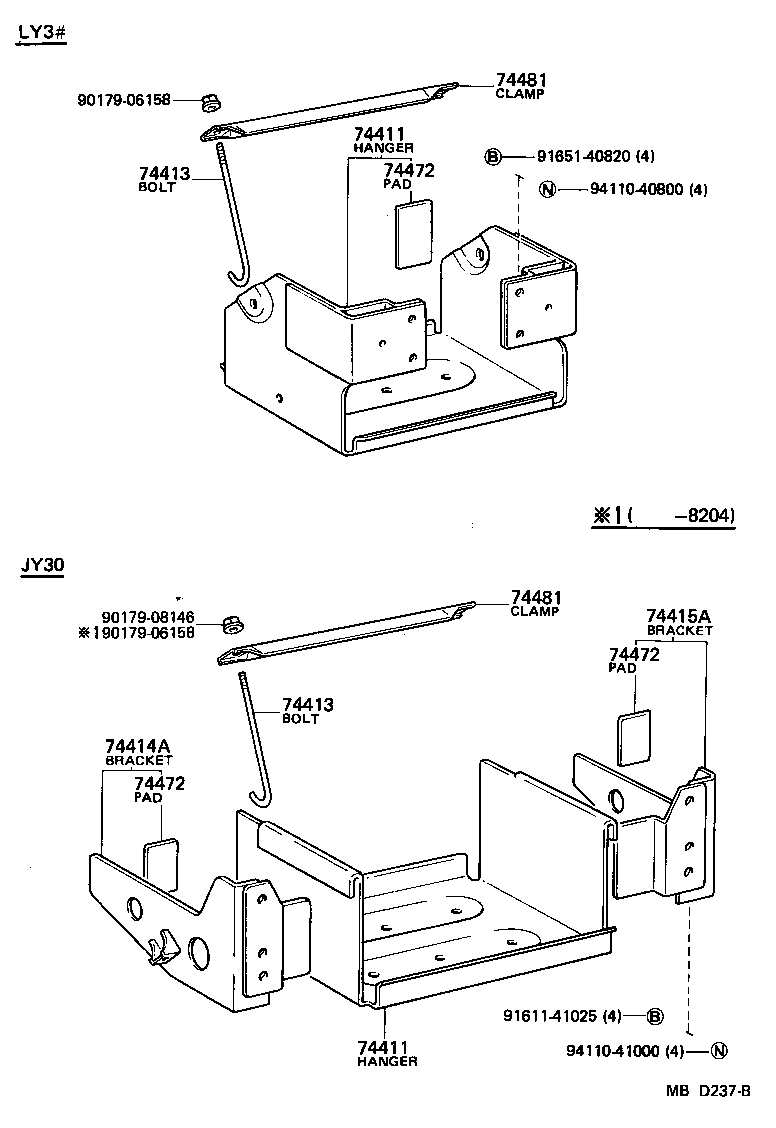

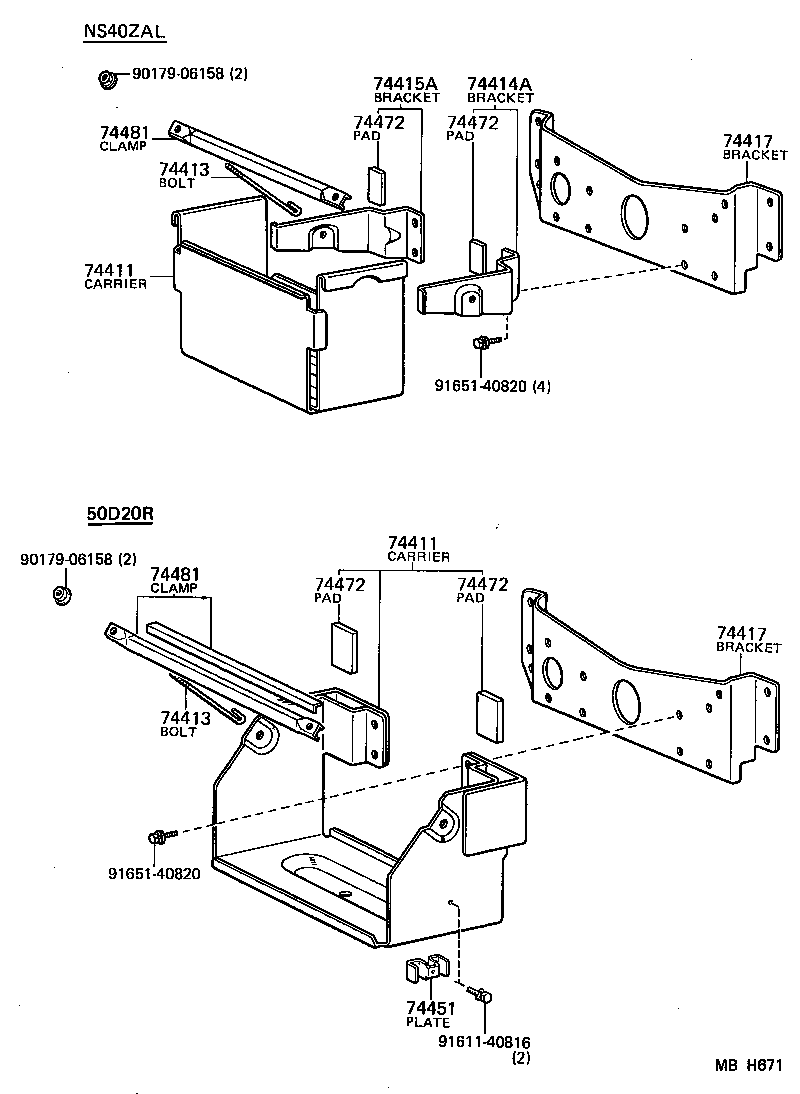

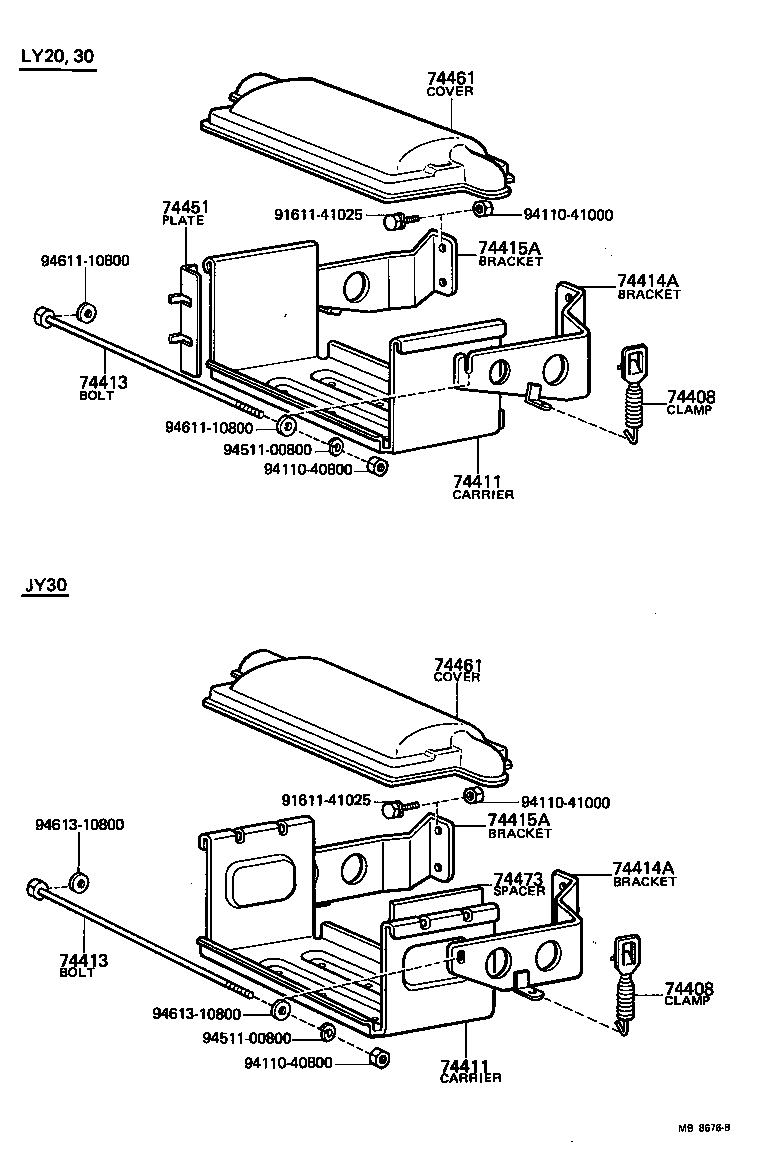

Battery Carrier
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74408 | Clamp Sub-assy, Battery Cover |
| 74411 | Carrier, Battery |
| 74413 | Bolt, Battery Clamp |
| 74414A | Bracket, Battery, NO.1 |
| 74415A | Bracket, Battery, NO.2 |
| 74417 | Bracket, Battery Carrier |
| 74451 | Plate, Battery Carrier Support |
| 74461 | Cover, Battery |
| 74471 | Shim, Battery Set Angle |
| 74472 | Pad, Battery Side |
| 74473 | Spacer, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
