Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · General
Discontinued model
Data version 1986-05

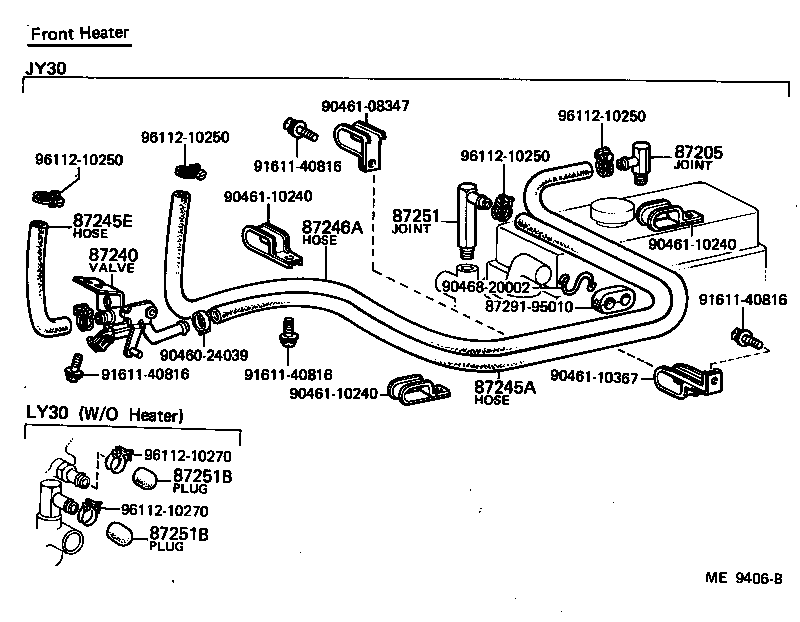

Heating & Air Conditioning - Water Piping
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87240 | Valve Assy, Heater Water |
| 87245A | Hose, Heater Water, Inlet A |
| 87245B | Hose, Heater Water, Inlet B |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87251 | Joint OR Union, Water Hose Through |
| 87251B | Plug, Heater Water |
| 87264 | Bracket, Heater Water Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
