Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · General

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

11 part groups · 2 illustrations

Illustrations

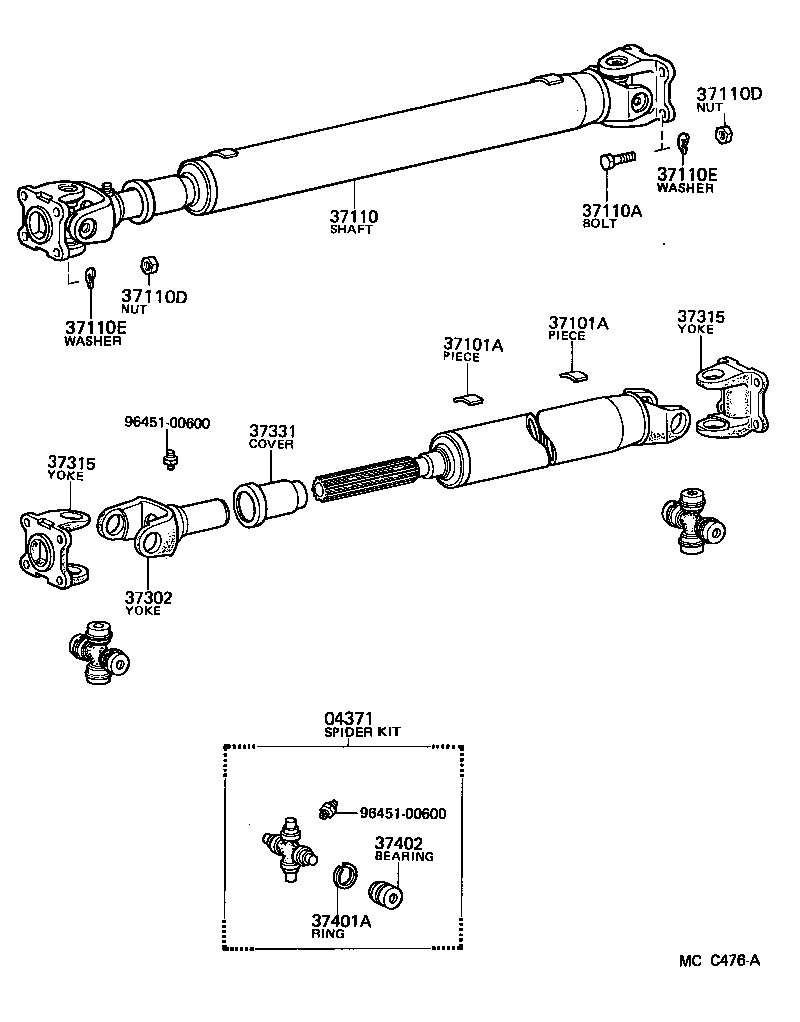

Figure MCC475A MCC475A 1985-08 → — Figure MCC476A MCC476A 1985-08 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37302 Yoke Sub-assy, Universal Joint Sleeve
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
