Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · General

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

18 part groups · 3 illustrations

Illustrations

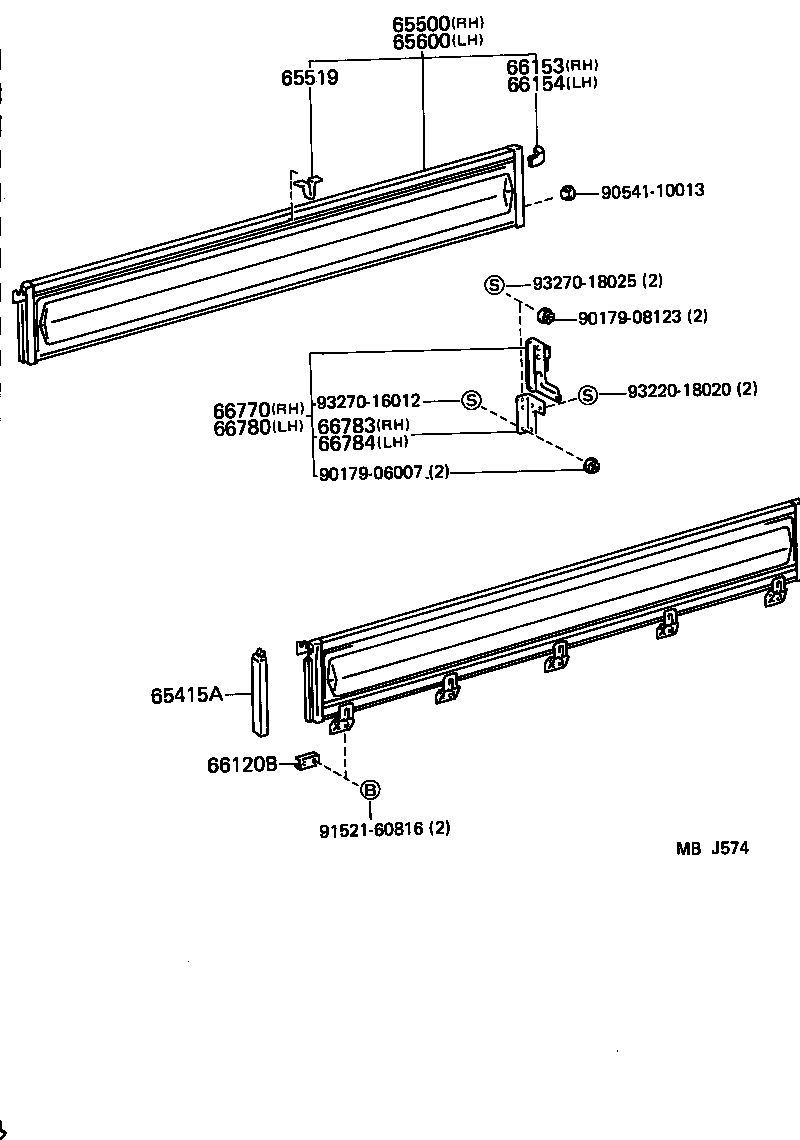

Figure MBJ573 MBJ573 1985-08 → — Figure MBJ574 MBJ574 1985-08 → — Figure MBJ639 MBJ639 1985-08 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65415A Protector, Guard Flame
65500 Panel Assy, Rear Body Side, RH
65519 Bracket, Top Rail
65600 Panel Assy, Rear Body Side, LH
66120 Hinge Assy, Side Gate
66120B Retainer, Side Gate Hinge, Lower
66153 Latch, Tail Gate Female, RH
66154 Latch, Tail Gate Female, LH
66311 Hook, Rope
66332 Cushion, Rubber
66770 Support Sub-assy, Side Gate, RH
66780 Support Sub-assy, Side Gate, LH
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
