Toyota DYNA150
1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · General
Discontinued model
Data version 1987-12
Switch & Relay & Computer
55 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

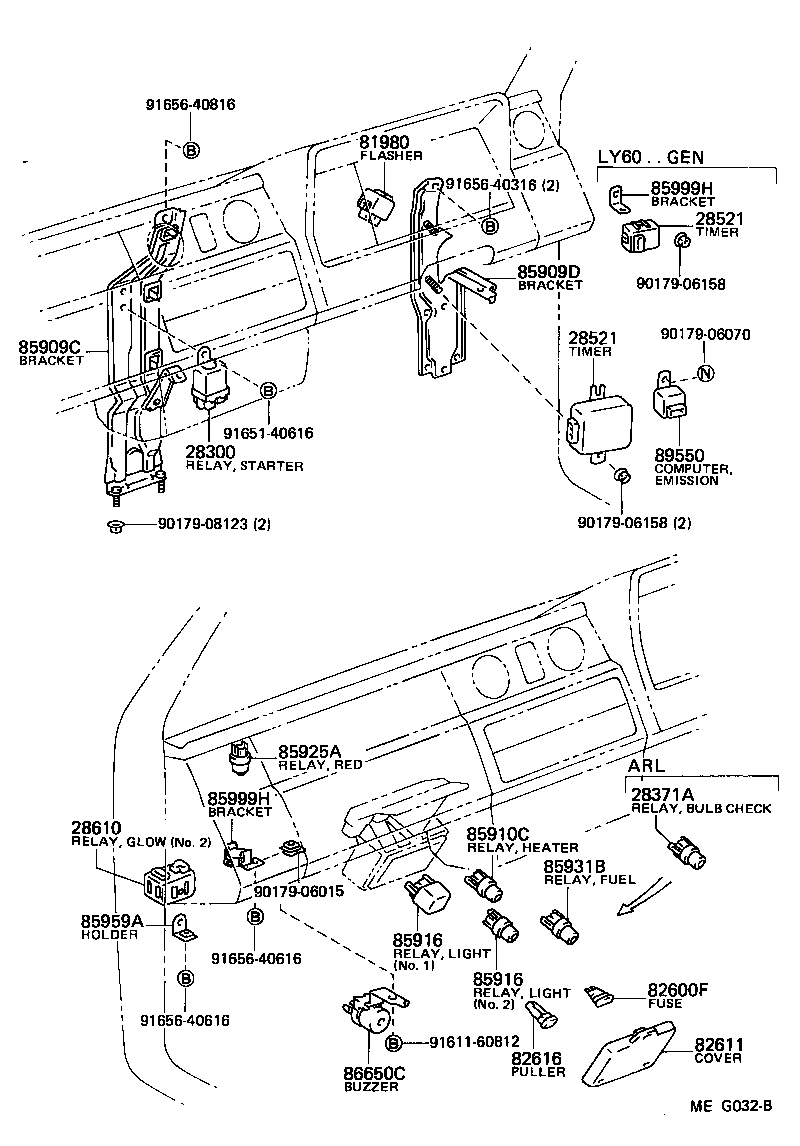

| 28300 | Relay Assy, Starter |
| 28371A | Relay, Bulb Check |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28631 | Sensor, Glow Plug Current |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82611 | Cover, Fuse Block |
| 82616 | Puller, Fuse |

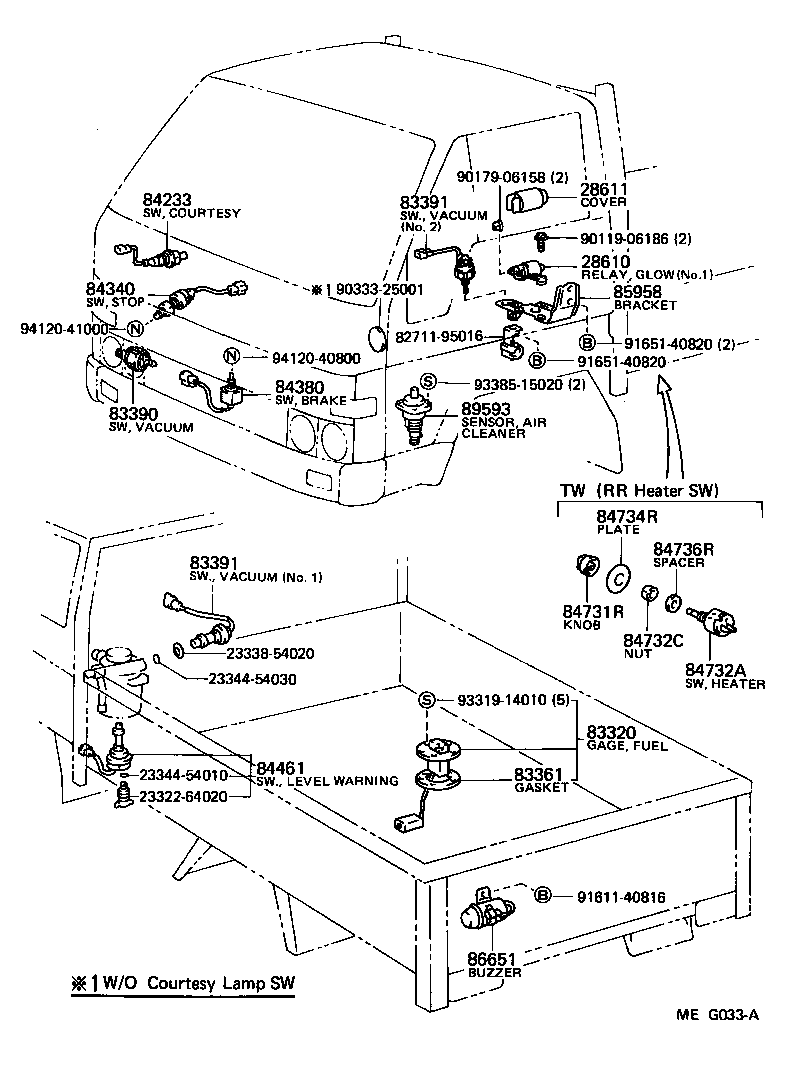

| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

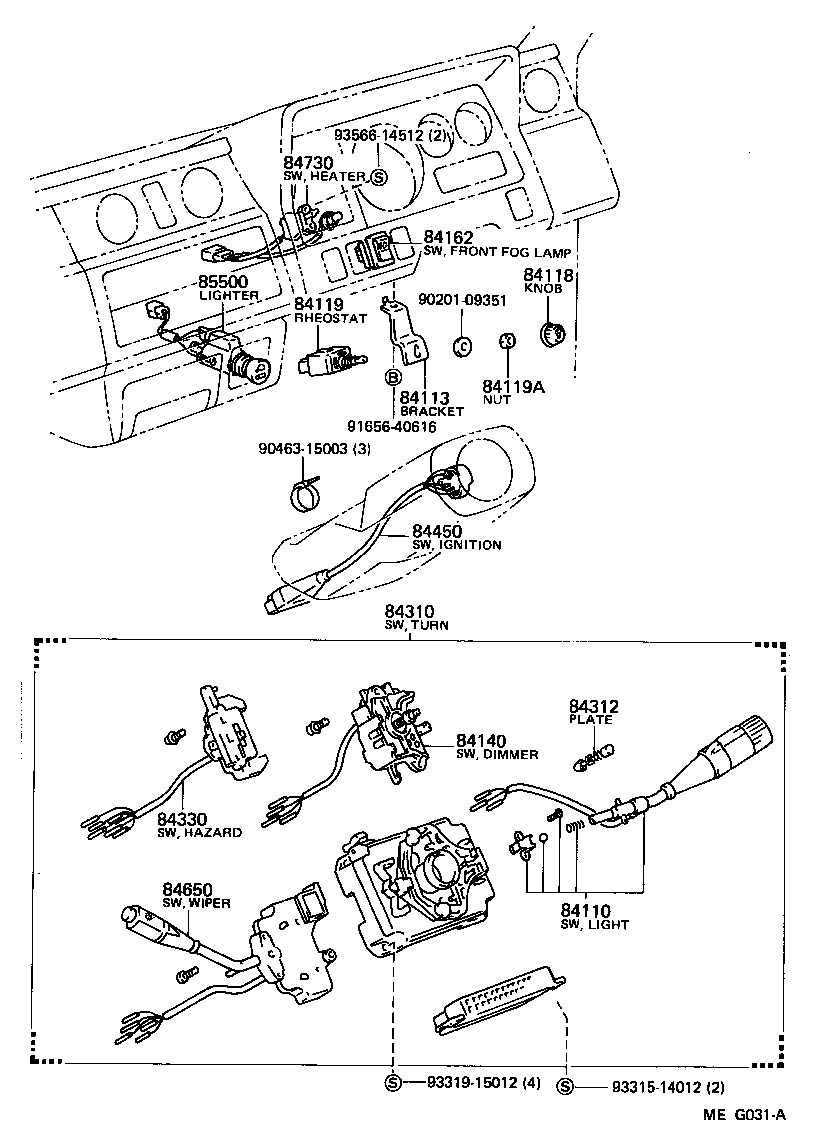

| 84110 | Switch Assy, Light Control, NO.1 |
| 84113 | Bracket, Light Control Rheostat |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84162 | Switch, Front Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84380 | Switch Assy, Brake Warning Test |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84732C | Nut, Rear Heater Blower Switch |
| 84734R | Plate, Rear Heater Blower Switch Caution |
| 84736R | Spacer, Rear Heater Blower Switch |
| 85500 | Lighter Assy, Cigarette |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916 | Relay, Light Control |
| 85925A | Relay, Red Indicator |
| 85931B | Relay, Fuel Heater |
| 85958 | Bracket, Main Relay |
| 85959A | Holder, Relay |
| 85999H | Bracket, Relay |
| 86650C | Buzzer Assy, Sedimenter Warning |
| 86651 | Buzzer Assy, Back |
| 89429 | Sensor, Oil Temperature |
| 89550 | Computer Assy, Emission Control |
| 89593 | Sensor, Air Cleaner Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
