Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · General

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 5 illustrations

Illustrations

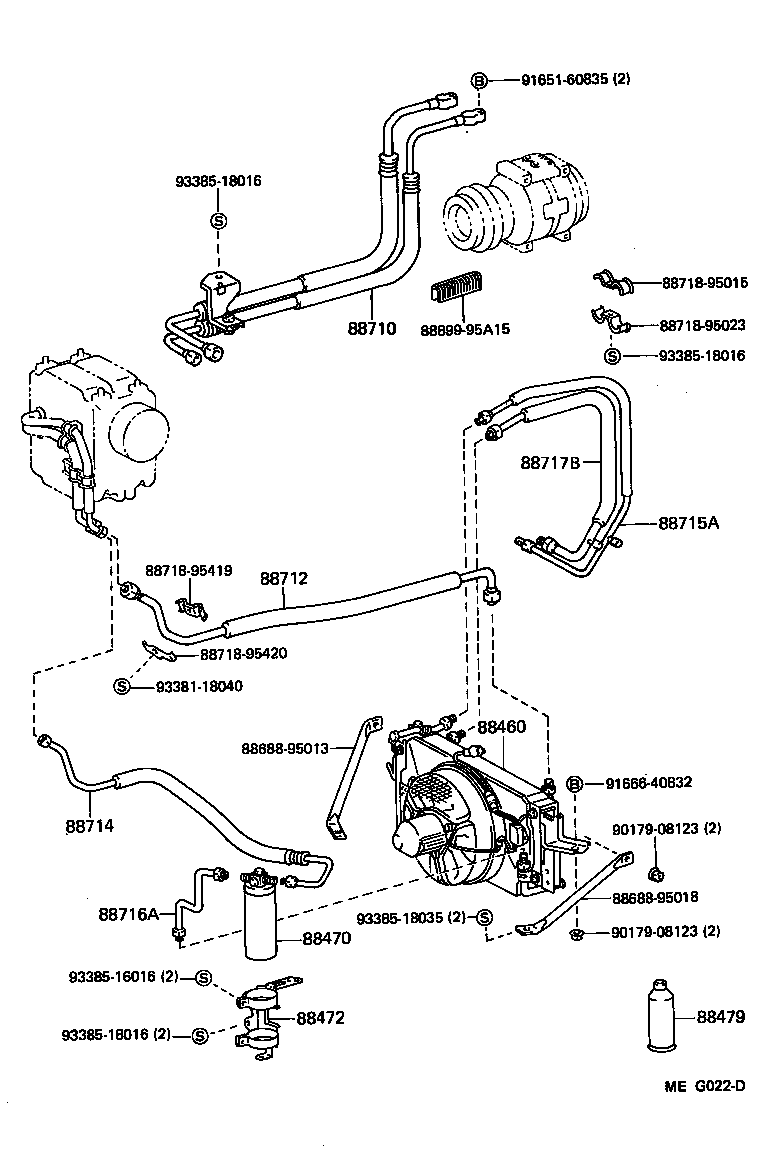

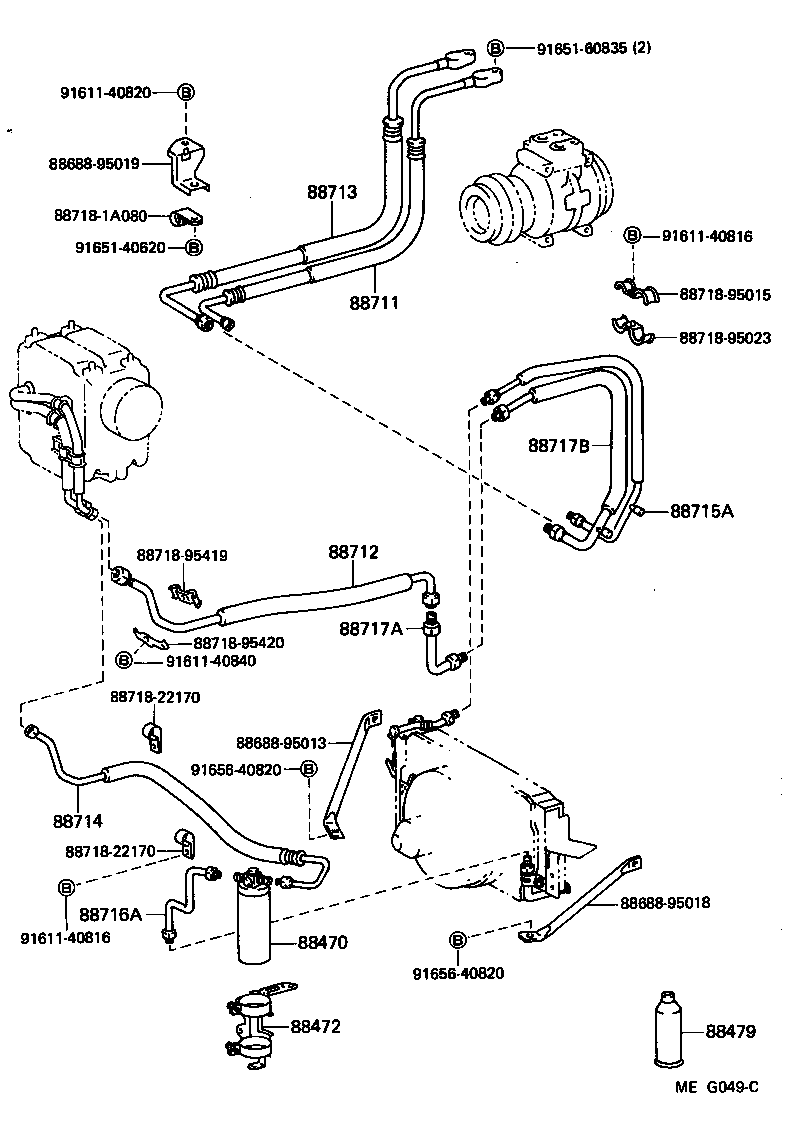

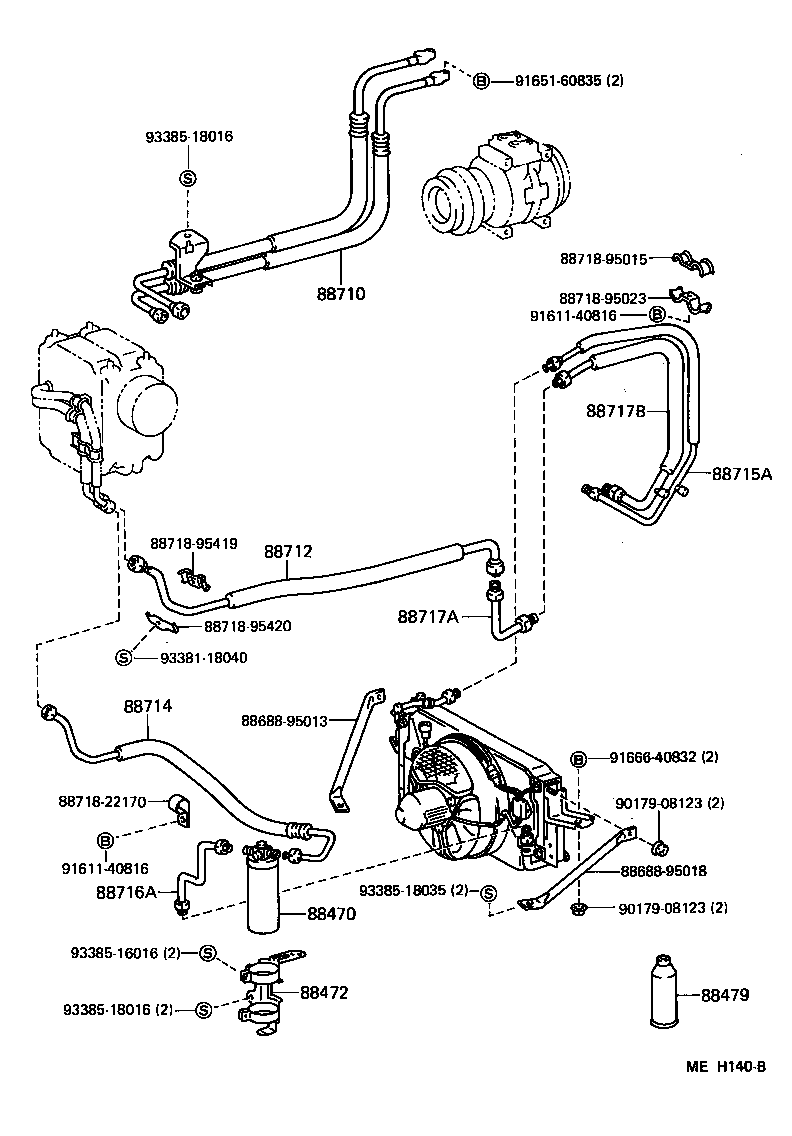

Figure MEG048C MEG048C 1985-08 → — Figure MEG022D MEG022D 1985-08 → — Figure MEG049C MEG049C 1985-08 → — Figure MEH140B MEH140B 1985-08 → — Figure MEG774C MEG774C 1985-08 → —

Part groups

PNCDescription
87138S Resistor, Blower
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88713 Hose, Cooler Refrigerant Suction, NO.2
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
