Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

12 part groups · 3 illustrations

Illustrations

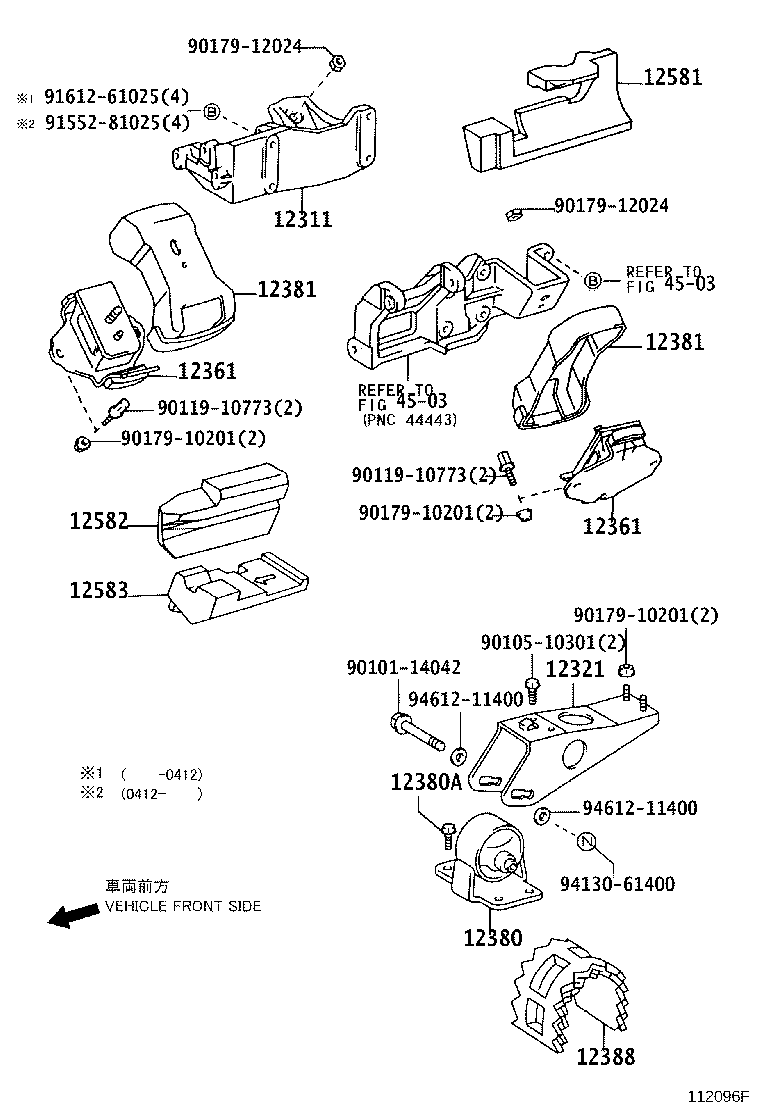

Figure 112166F 112166F 2001-08 → 2006-10 Figure 112166F 112166F 2006-09 → — Figure 112096F 112096F 2001-07 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12380 Insulator Assy, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12388 Stopper, Engine Mounting Bracket, Rear
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
