Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

27 part groups · 3 illustrations

Illustrations

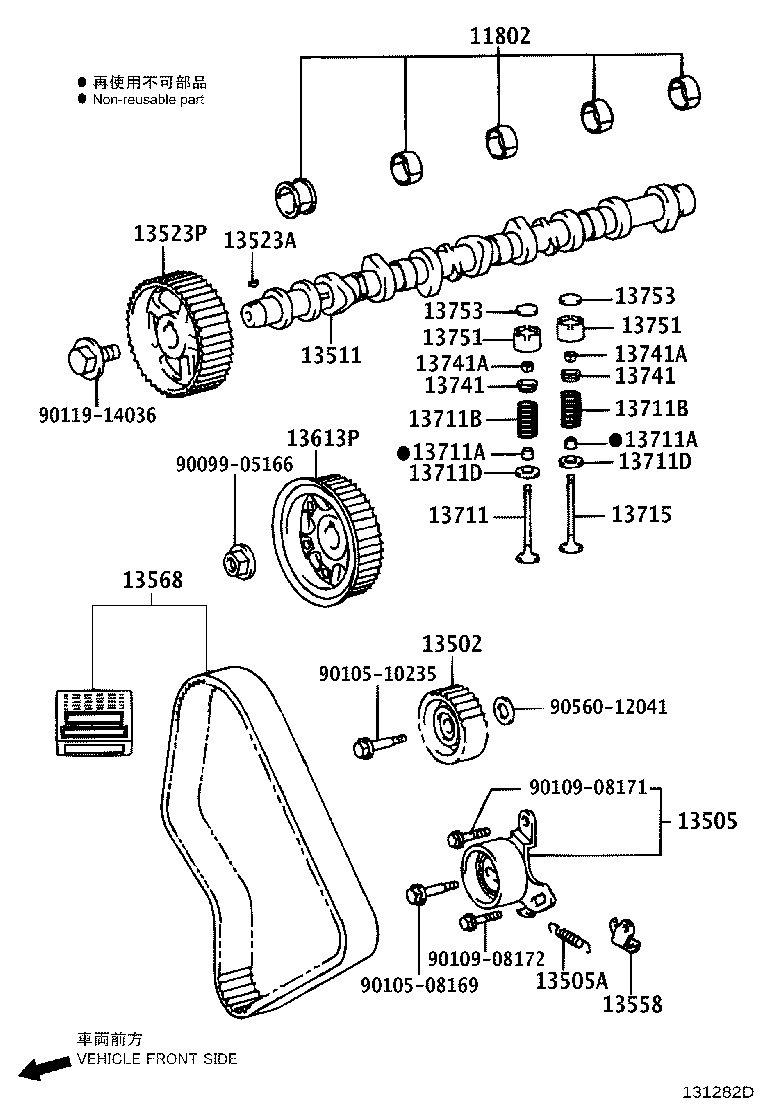

Figure 131932B 131932B 2001-08 → 2006-10 Figure 131932B 131932B 2006-09 → — Figure 131282D 131282D 2001-07 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13511 Camshaft
13512 Camshaft, NO.2
13515A Washer, Plate(FOR DISTRIBUTOR DRIVE GEAR)
13522P Pulley, Pump Drive Shaft
13523A Key, Woodruff(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13556 Shaft, Timing Belt Idler
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13586 Flange, Camshaft Timing Pulley, NO.2
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
