Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

29 part groups · 5 illustrations

Illustrations

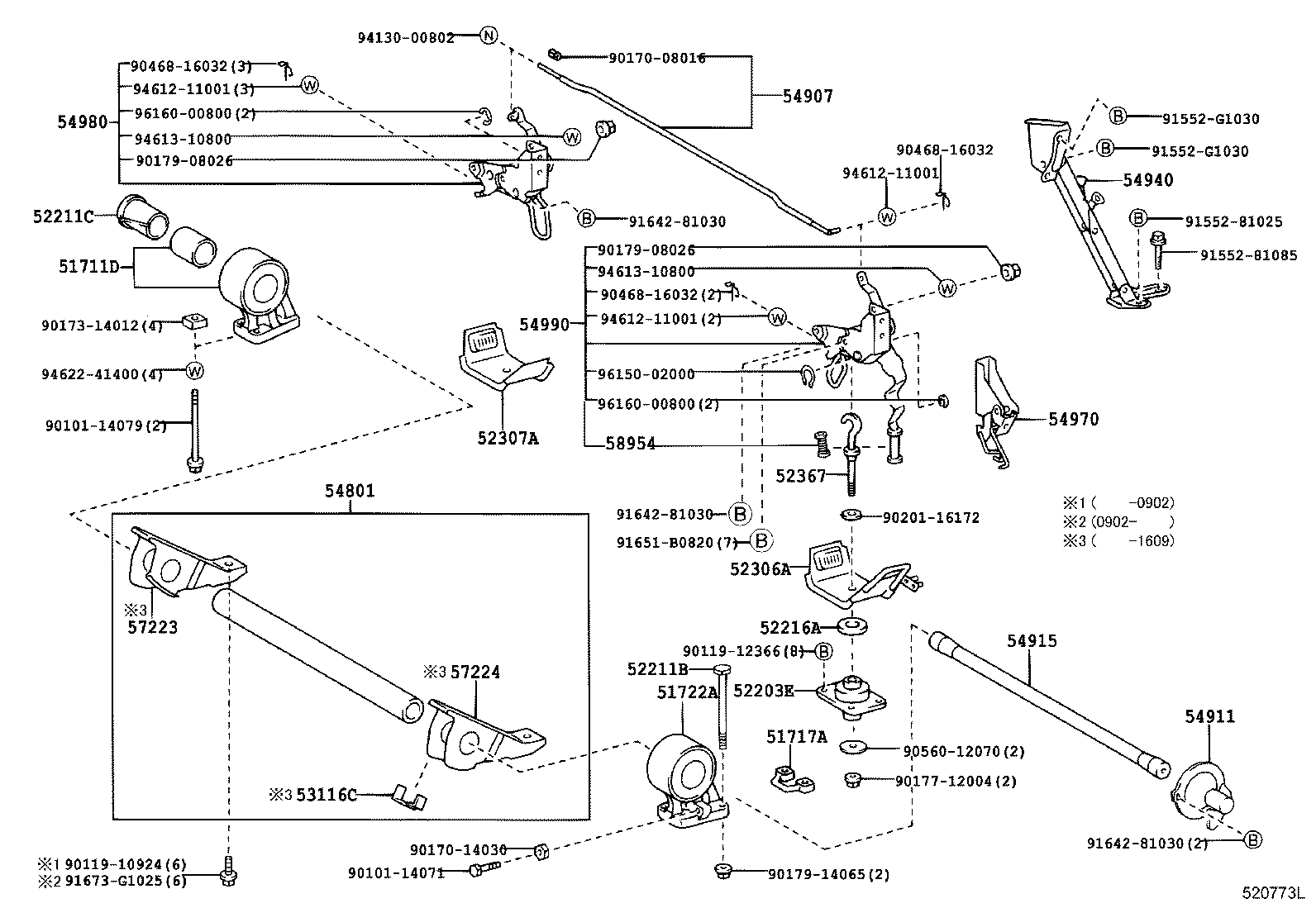

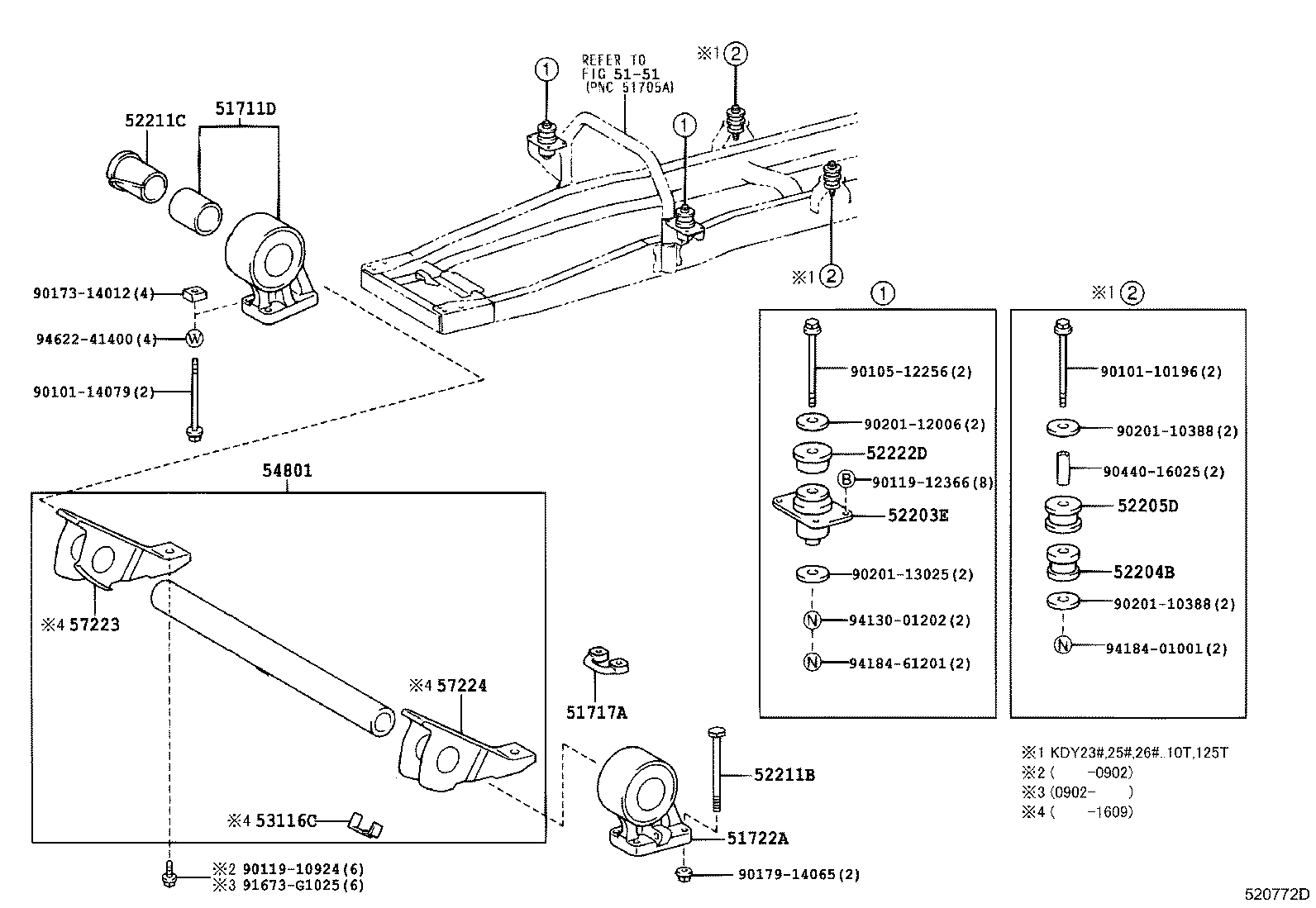

Figure 520736C 520736C 2001-07 → — Figure 520772D 520772D 2001-07 → — Figure 520772D 520772D 2001-08 → — Figure 520773L 520773L 2001-08 → — Figure 520773L 520773L 2001-10 → —

Part groups

PNCDescription
51711D Bracket, Cab Front Mounting
51717A Plate, Body Support Bracket
51722A Bracket Sub-assy, Cab Front Mounting, LH
52201B Cushion Sub-assy, Cab Front Mounting
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52202C Cushion Sub-assy, Cab Front Mounting, Lower
52203E Cushion Sub-assy, Cab Mounting, NO.2
52204B Cushion Sub-assy, Cab Mounting, NO.2 Lower
52205D Cushion Sub-assy, Cab Mounting, NO.3 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52216A Stopper, Cab Mounting Cushion
52222D Spacer, Cab Rear Mounting, Upper
52306A Bracket Sub-assy, Cab Mounting Hook, NO.1
52307A Bracket Sub-assy, Cab Mounting Hook, NO.2
52367 Hook, Cab Rear Mounting
53116C Bracket, Radiator Grille, NO.2
54801 Tube Sub-assy, Tilt Cab, NO.1
54907 Pipe Sub-assy, Tilt Cab Lock Connecting
54911 Arm, Tilt Cab Spring Support, NO.1
54915 Spring, Tilt Cab, NO.1
54940 Stay Assy, Tilt Cab
54970 Latch Assy, Tilt Cab Stopper
54980 Lock Assy, Tilt Cab Mounting, RH
54990 Lock Assy, Tilt Cab Mounting, LH
57223 Bracket, Front Mounting, RH
57224 Bracket, Front Mounting, LH
58954 Cover, Rear Lock Handle Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
