Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

11 part groups · 7 illustrations

Illustrations

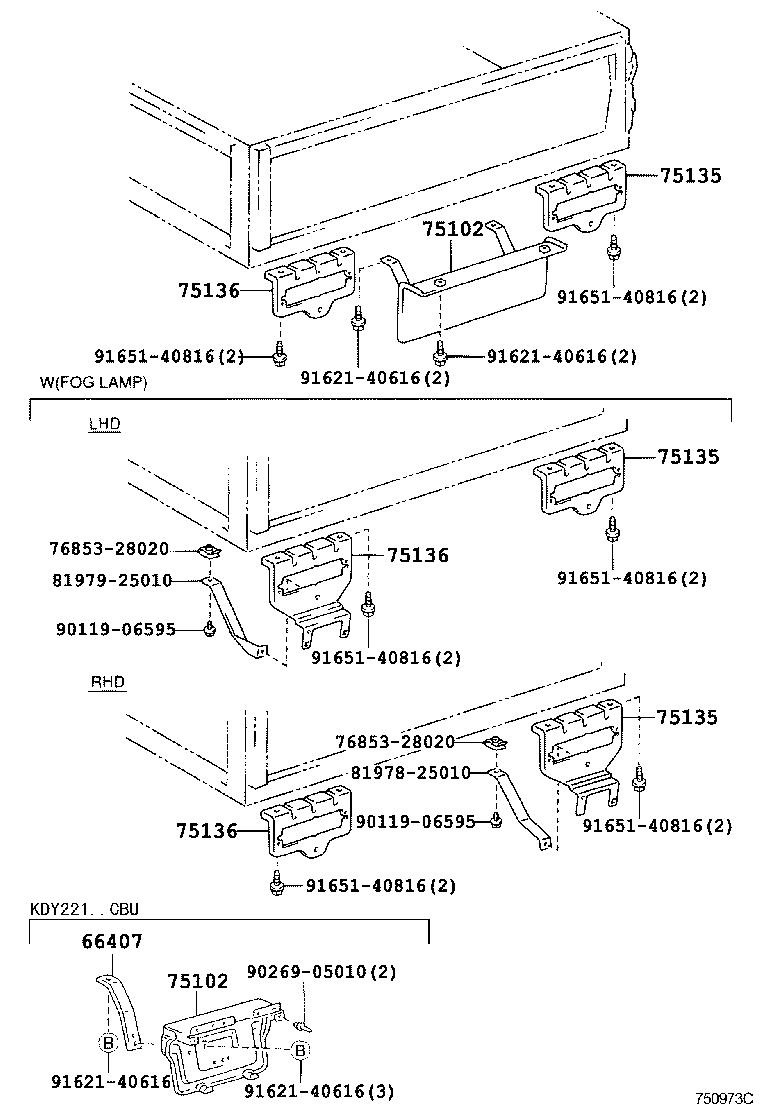

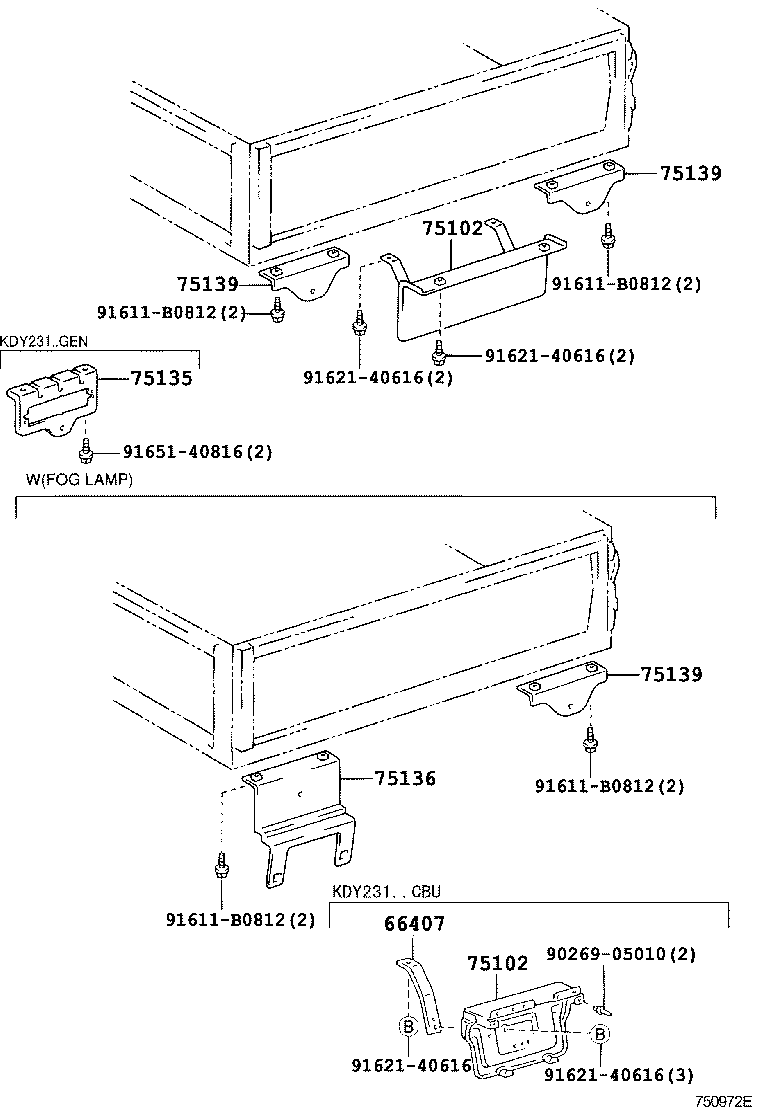

Figure 750968D 750968D 2001-07 → — Figure 750970C 750970C 2001-07 → — Figure 750970C 750970C 2001-08 → — Figure 750971B 750971B 2001-07 → — Figure 750969D 750969D 2001-07 → — Figure 750973C 750973C 2001-08 → — Figure 750972E 750972E 2001-08 → —

Part groups

PNCDescription
58705 Band Sub-assy, Tool Bag
58794B Support, Jack Handle
58797B Band, Jack Clamp
66407 Stay Sub-assy, License Plate Bracket
66491B Hanger, License Plate Bracket
75102 Bracket Sub-assy, Rear License Plate
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75139 Bracket, Reflex Reflector
75298 Plate, Jack Holder
75299A Base, Jack Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
