Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 7 illustrations

Illustrations

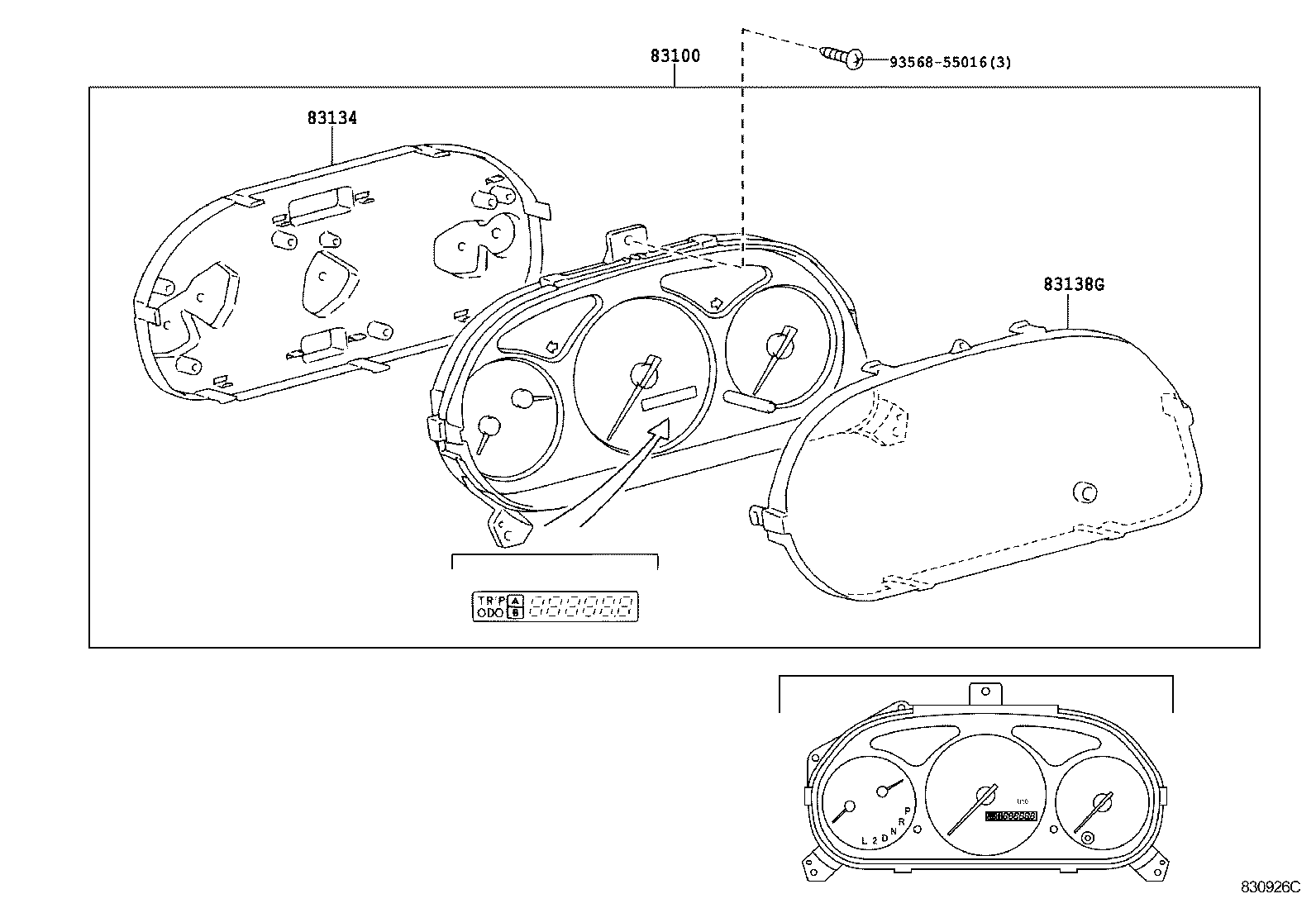

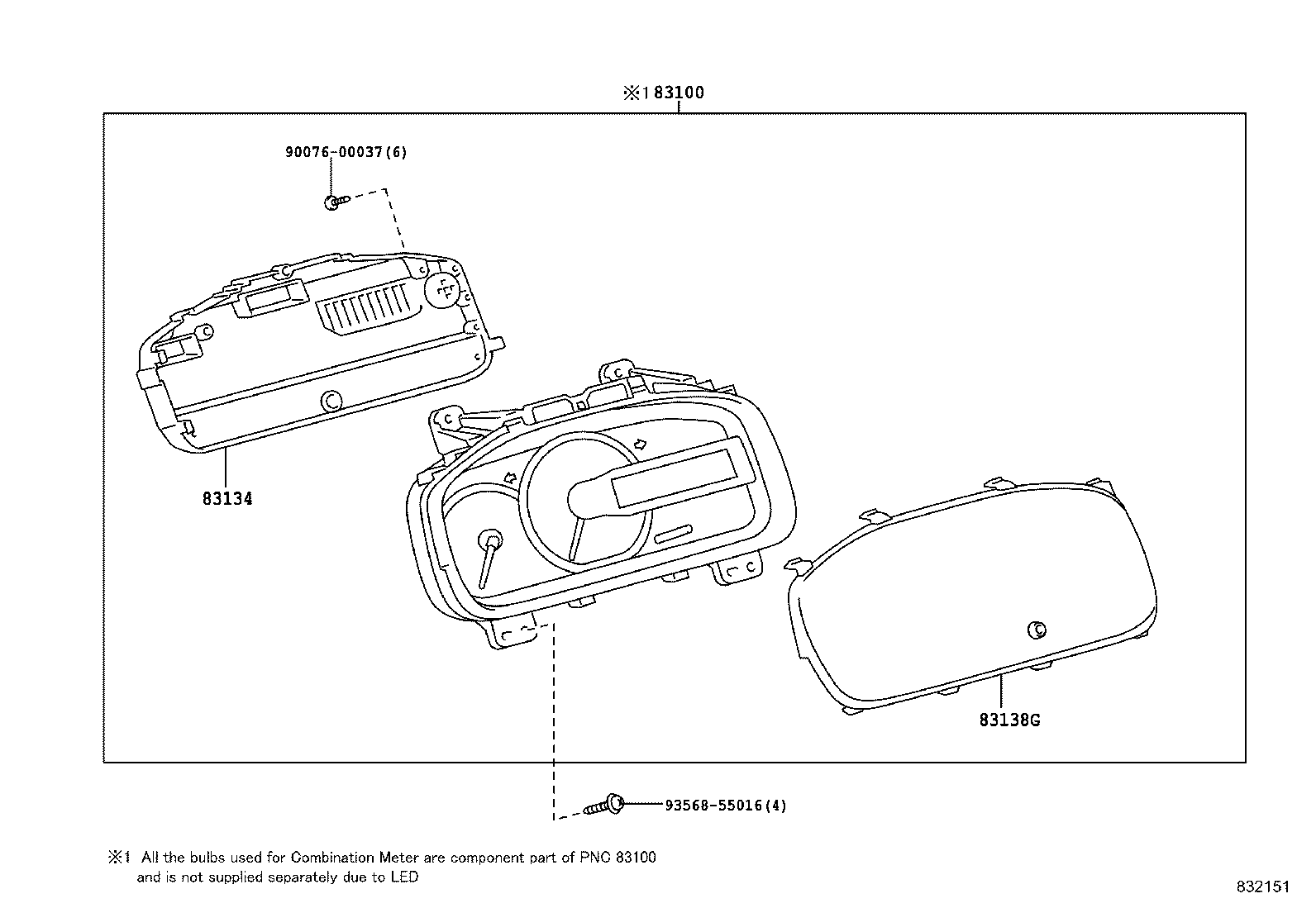

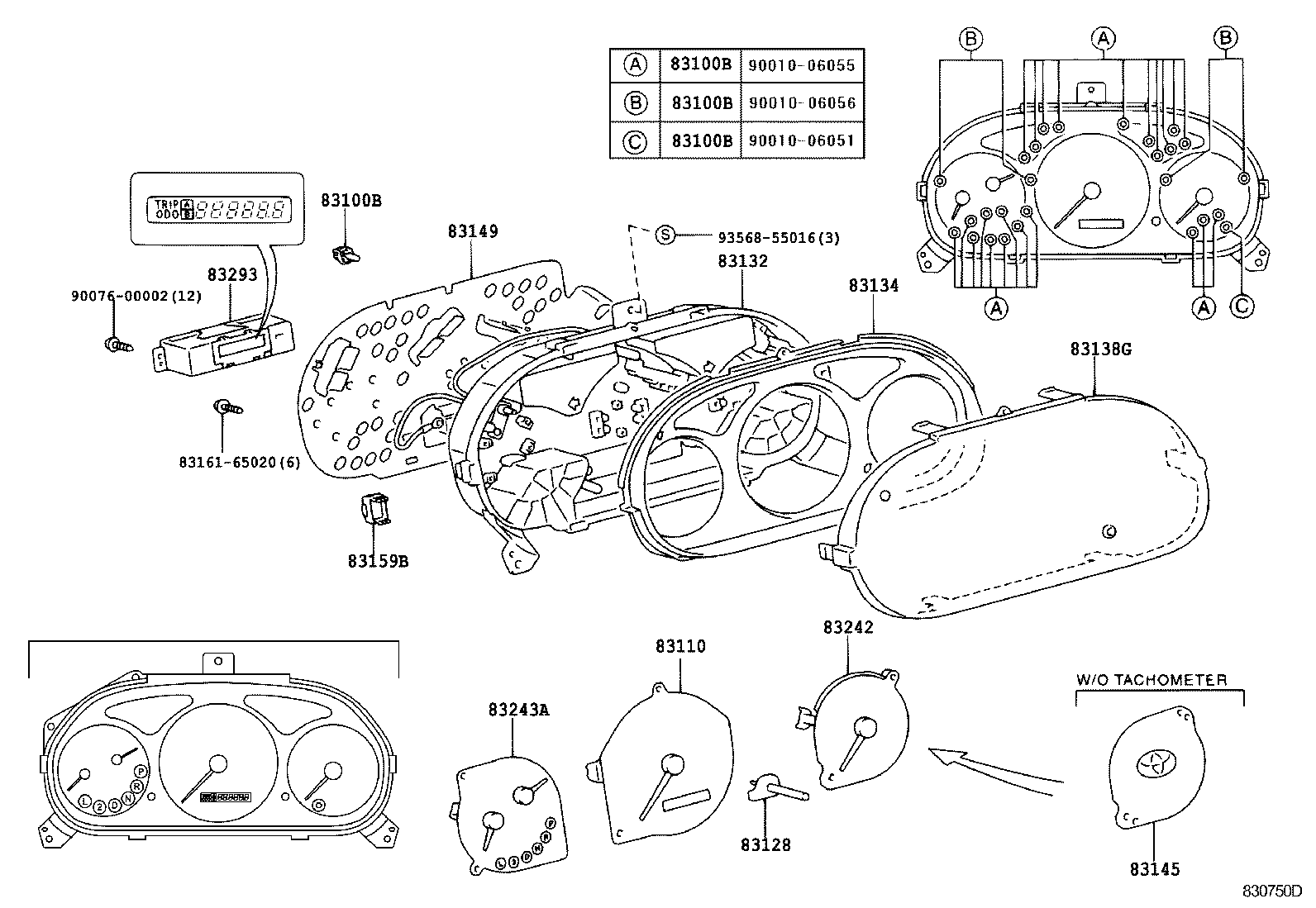

Figure 830723D 830723D 2001-07 → 2003-08 Figure 830723D 830723D 2003-08 → 2016-10 Figure 830750D 830750D 2001-08 → 2016-10 Figure 830926C 830926C 2003-08 → 2006-09 Figure 830926C 830926C 2003-08 → 2016-10 Figure 830926C 830926C 2006-09 → 2016-10 Figure 832151 832151 2016-10 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83110 Speedometer Assy
83128 Knob, Trip Counter
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83145 Lens, Meter, NO.1
83149 Plate, Meter Circuit
83159B Relay Assy, Meter
83242 Tachometer Assy, Engine
83243A Gauge Sub-assy, Fuel Receiver
83293 Computer, Total Counter Module
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
