Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 6 illustrations

Illustrations

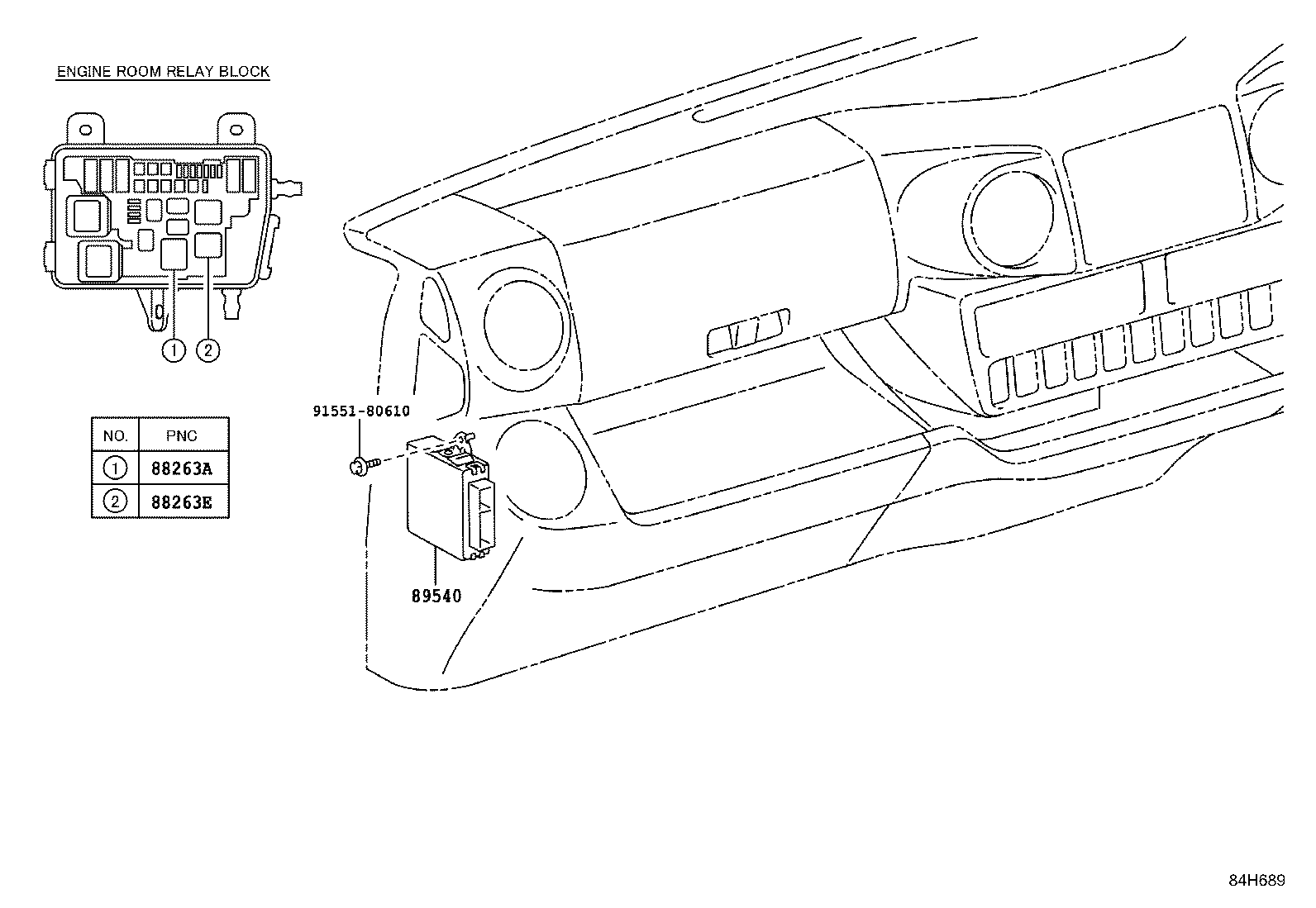

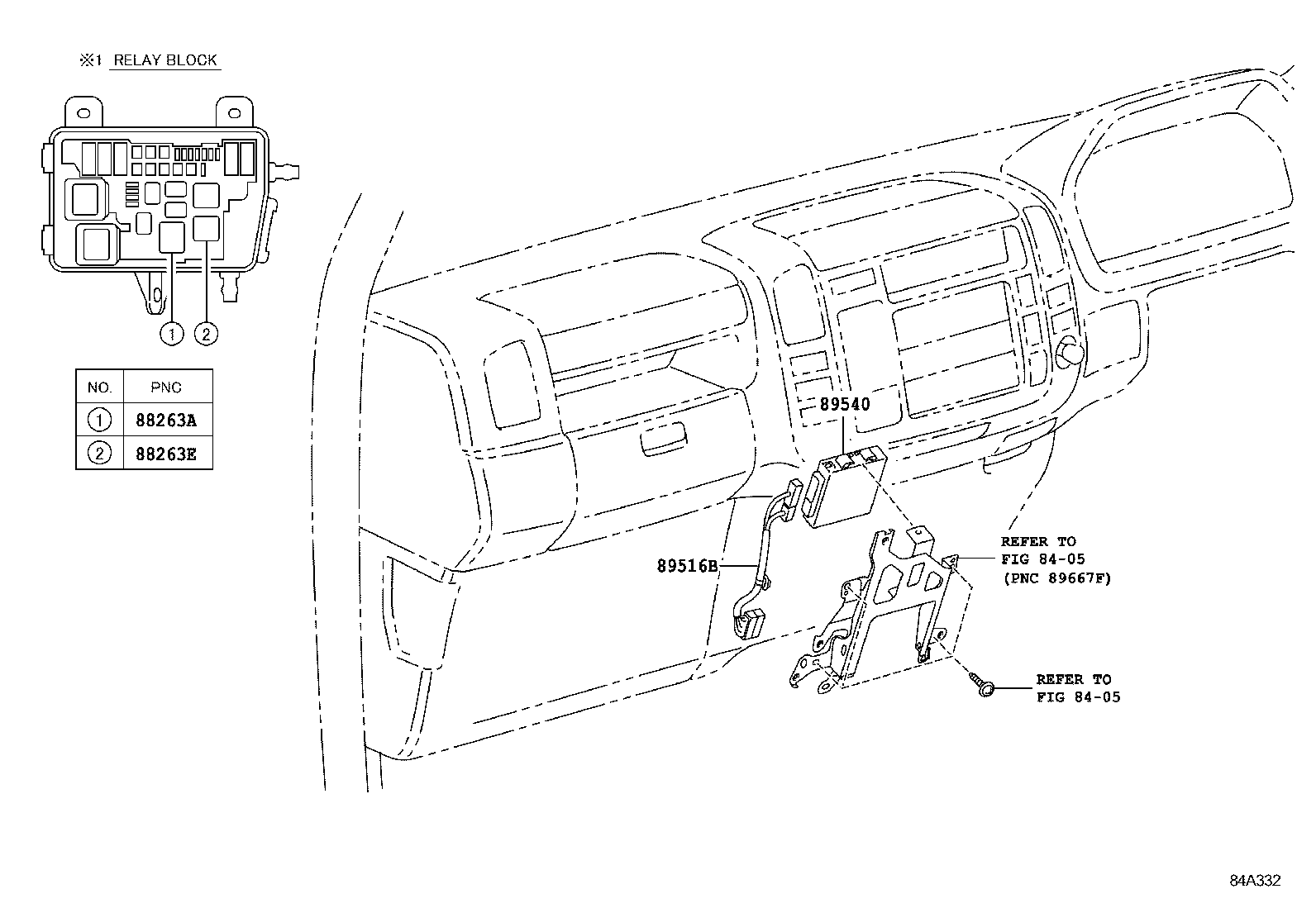

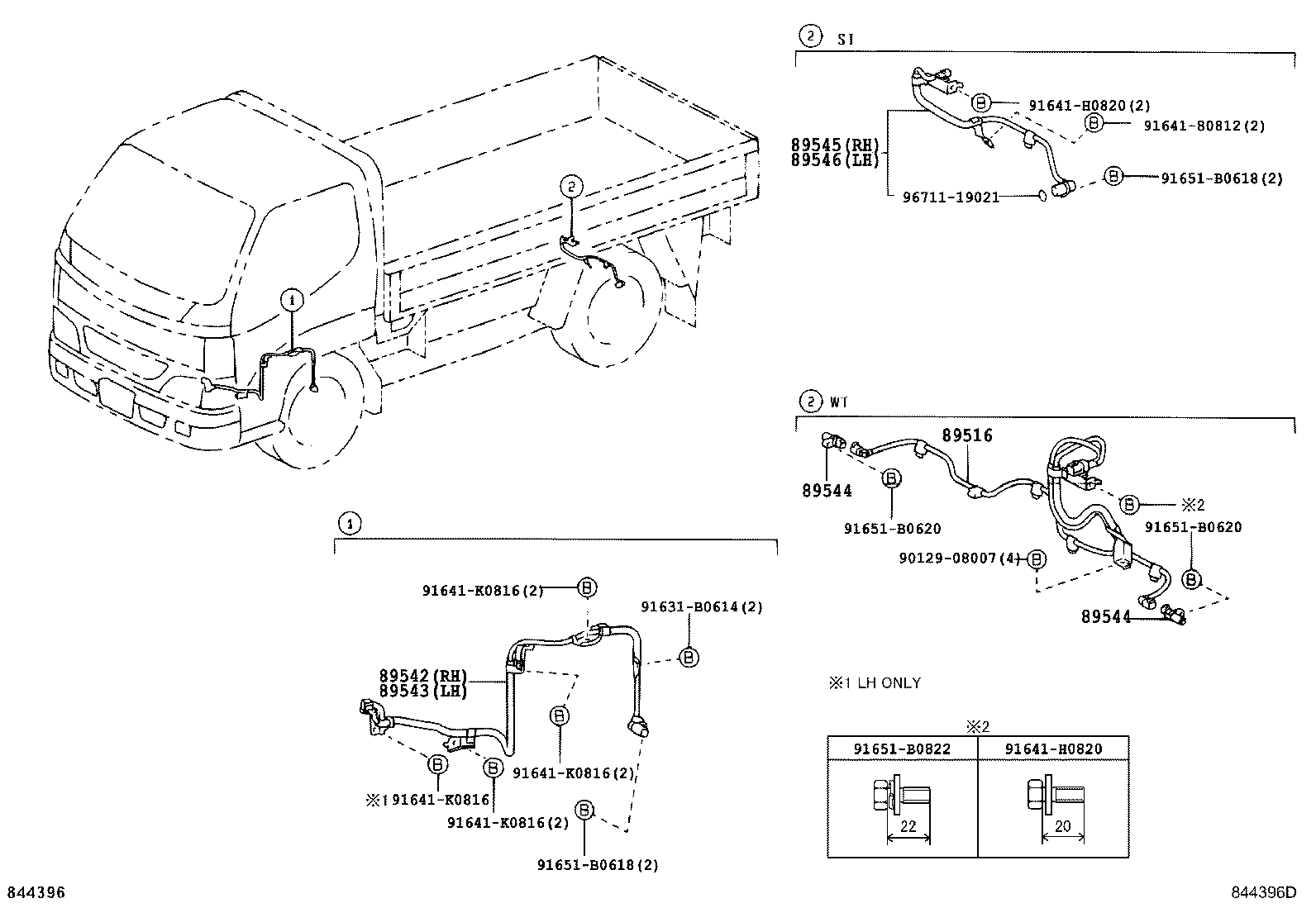

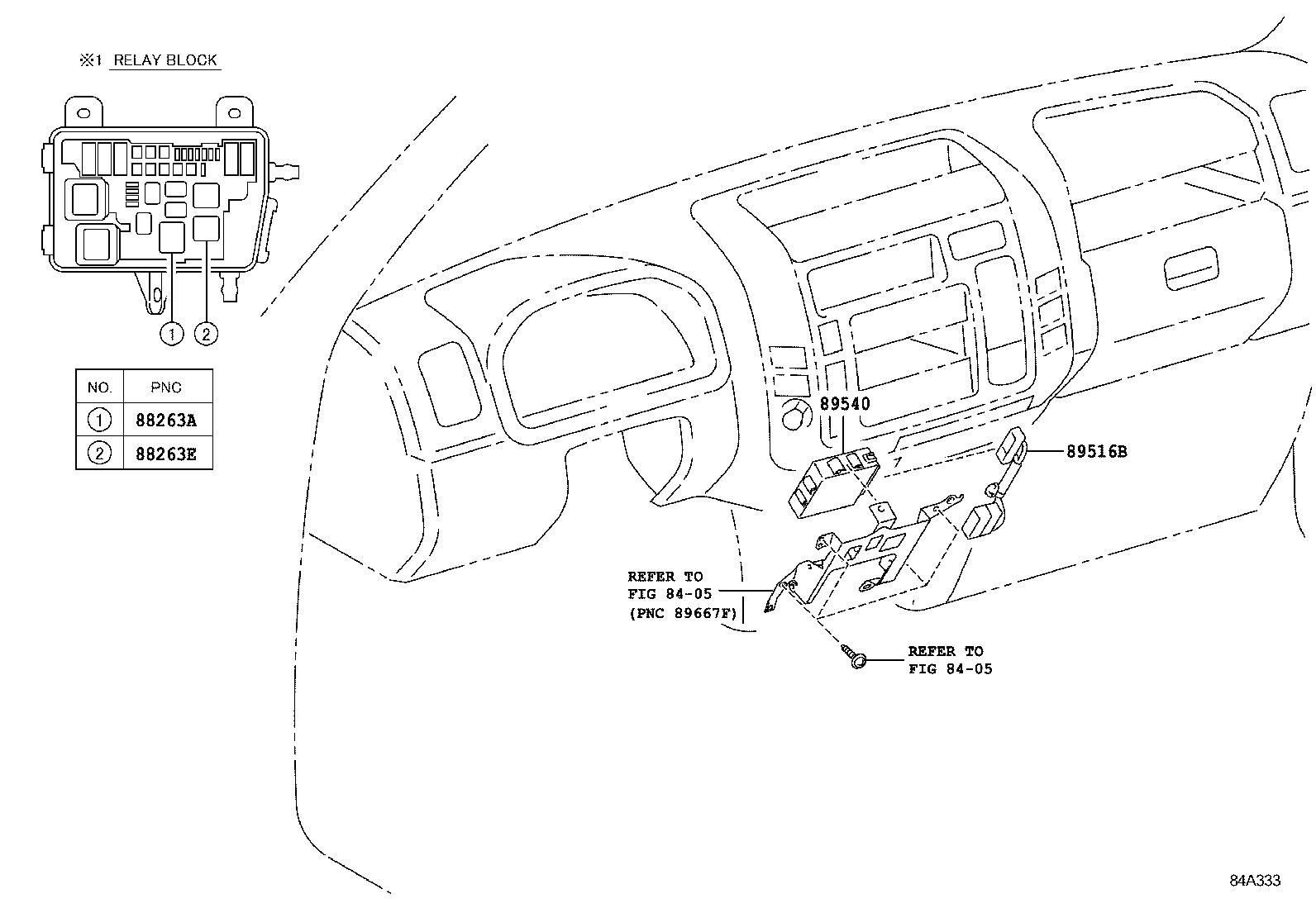

Figure 844395C 844395C 2001-08 → 2009-07 Figure 84A332 84A332 2009-07 → 2016-10 Figure 84A333 84A333 2009-07 → 2016-10 Figure 84H689 84H689 2016-10 → — Figure 844396D 844396D 2001-08 → — Figure 844396D 844396D 2016-10 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
88278A Cushion, Skid Control Computer
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
