Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

2 part groups · 4 illustrations

Illustrations

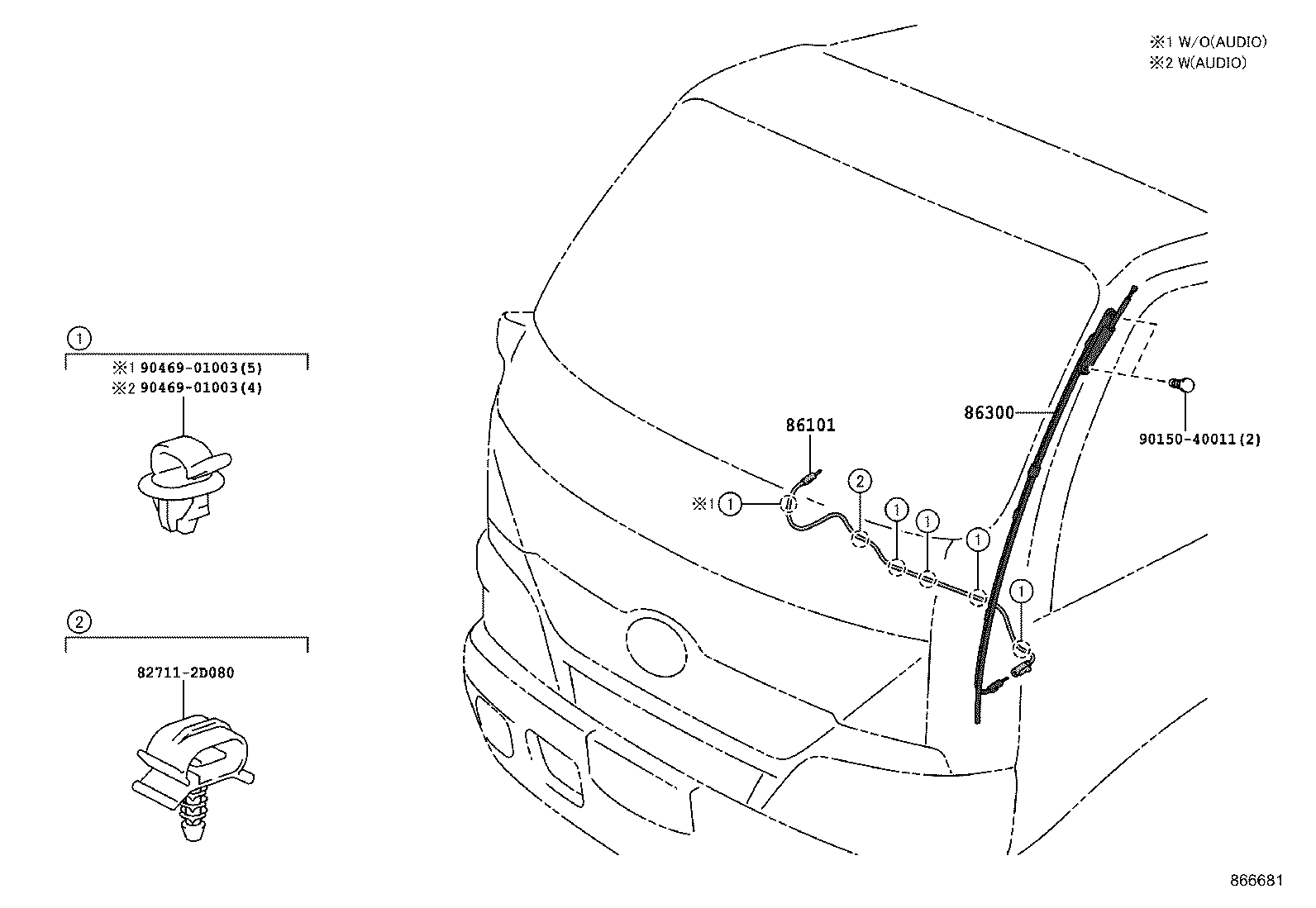

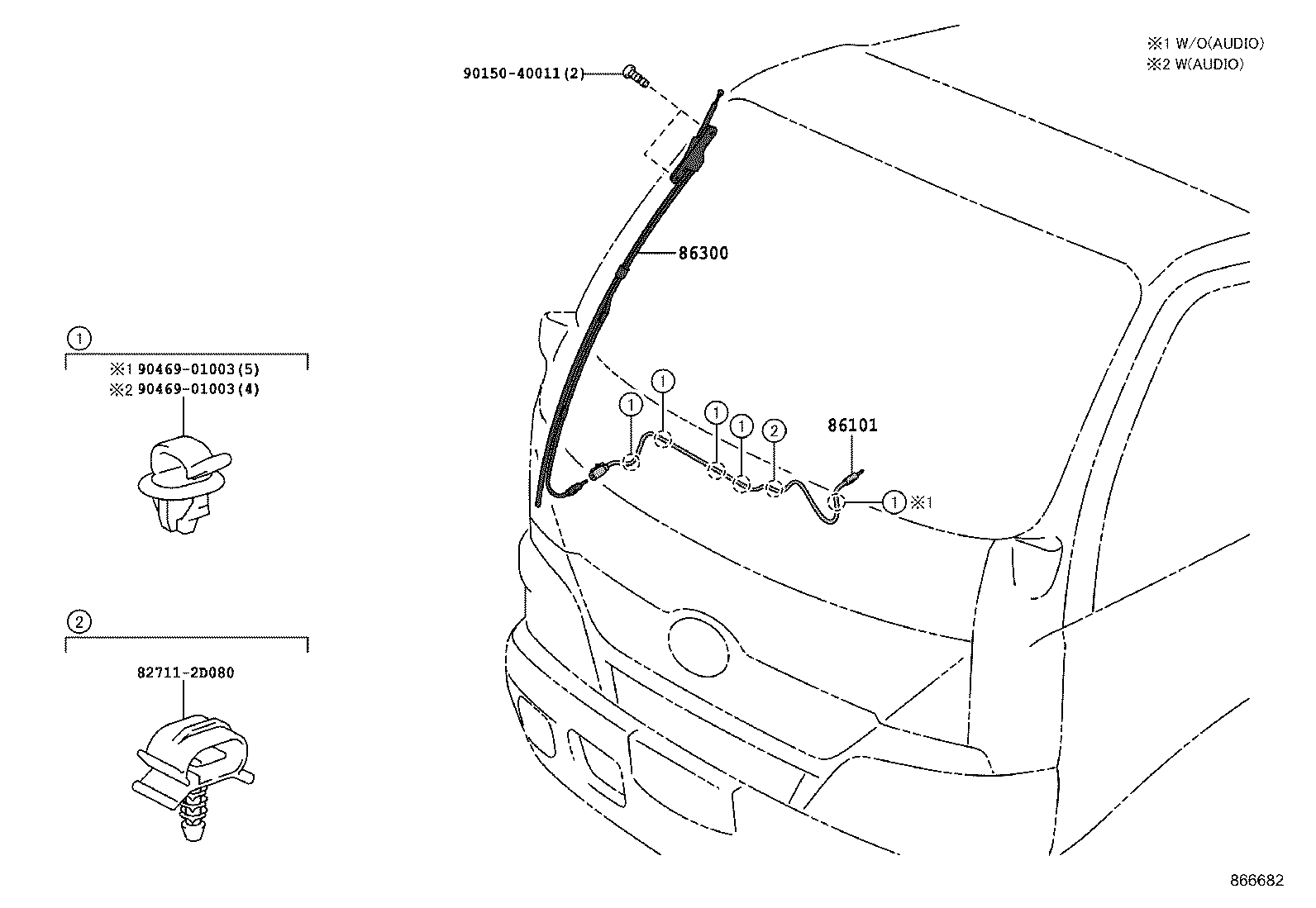

Figure 861402A 861402A 2001-07 → 2016-10 Figure 861401A 861401A 2001-07 → 2016-10 Figure 866681 866681 2016-10 → — Figure 866682 866682 2016-10 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
