Toyota Dyna

2001-07 → 2021-11 · chassis KDY22#,23#,25#,26#,LY2## · catalogue 731270 · General

Discontinued model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 7 illustrations

Illustrations

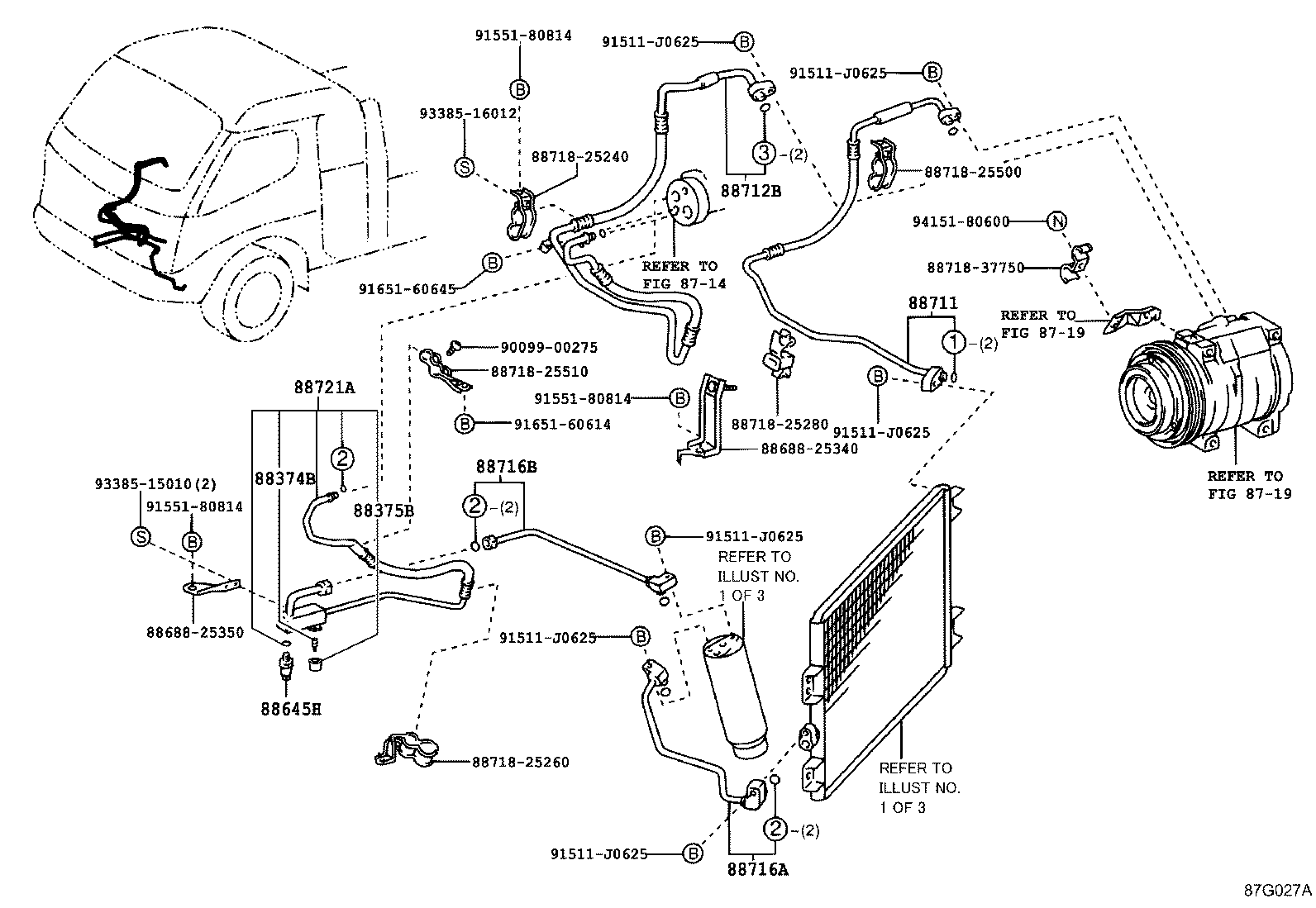

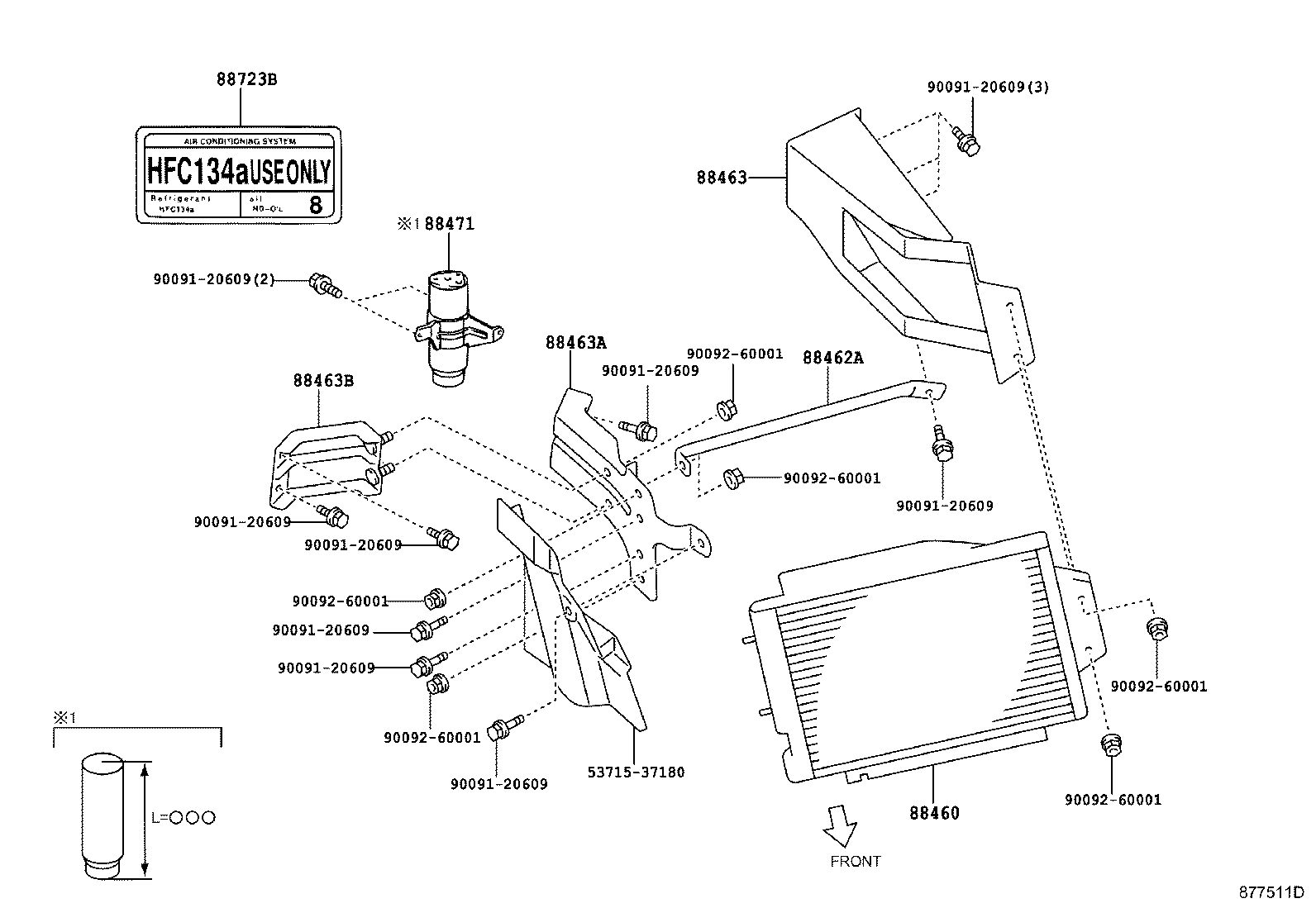

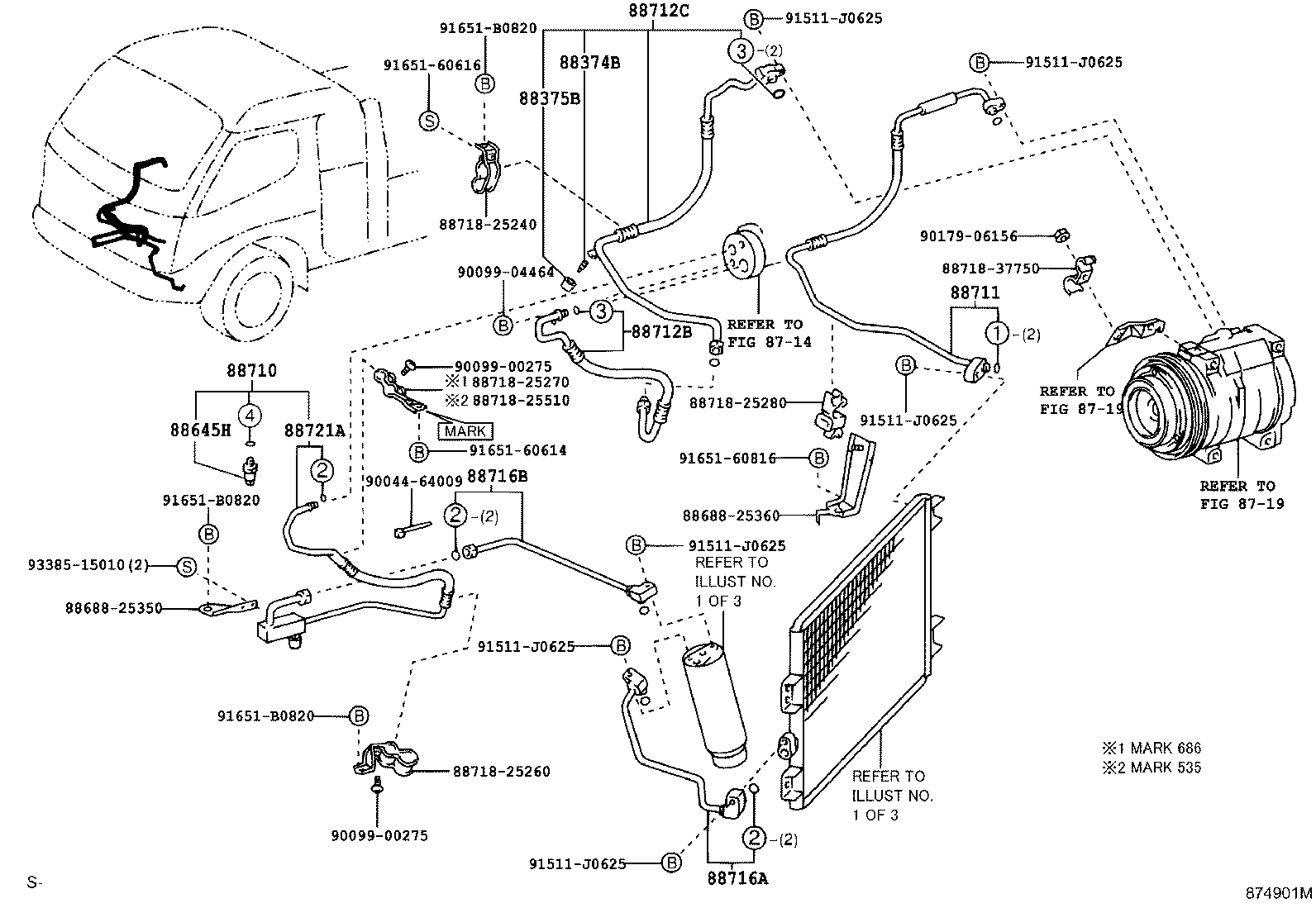

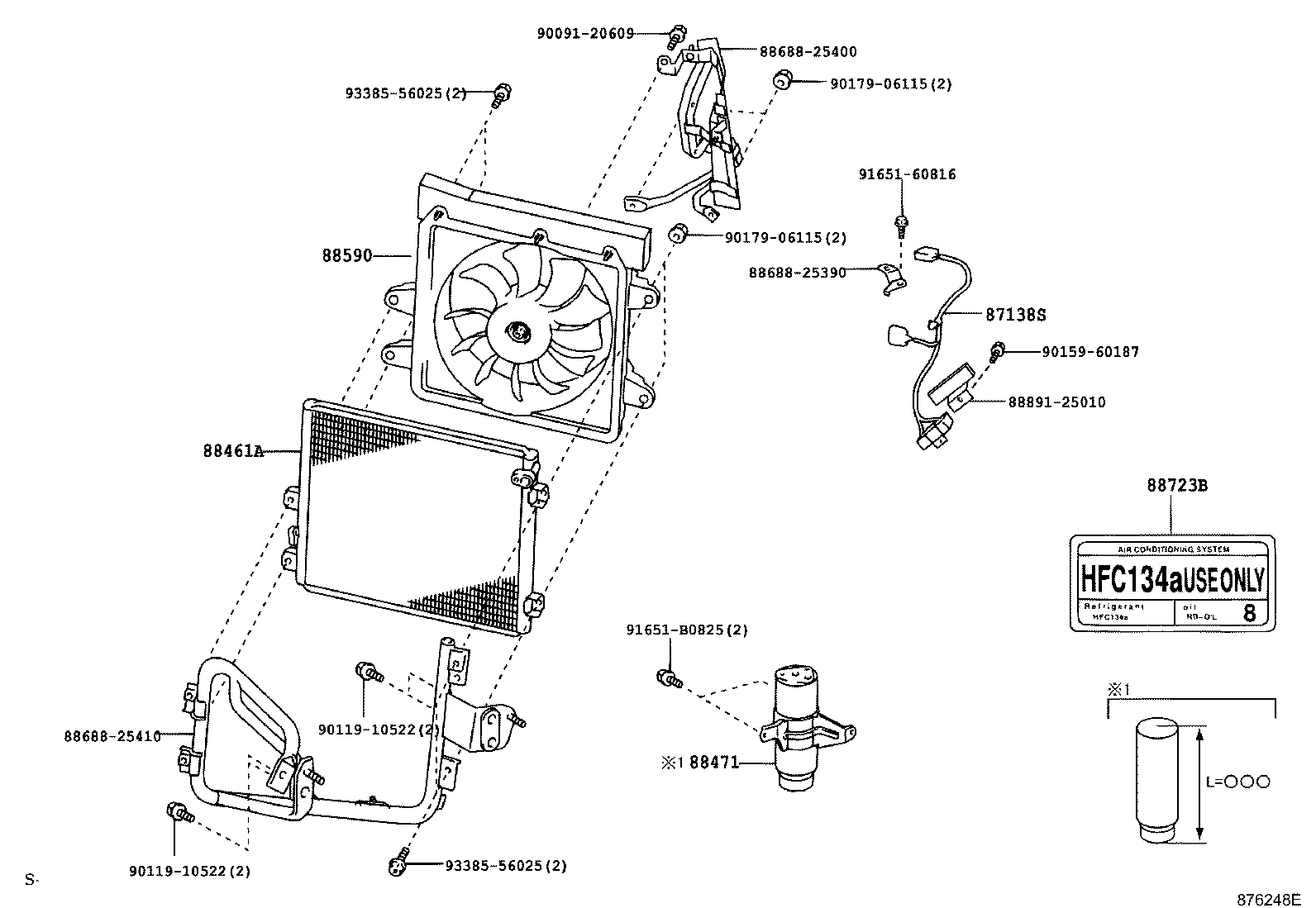

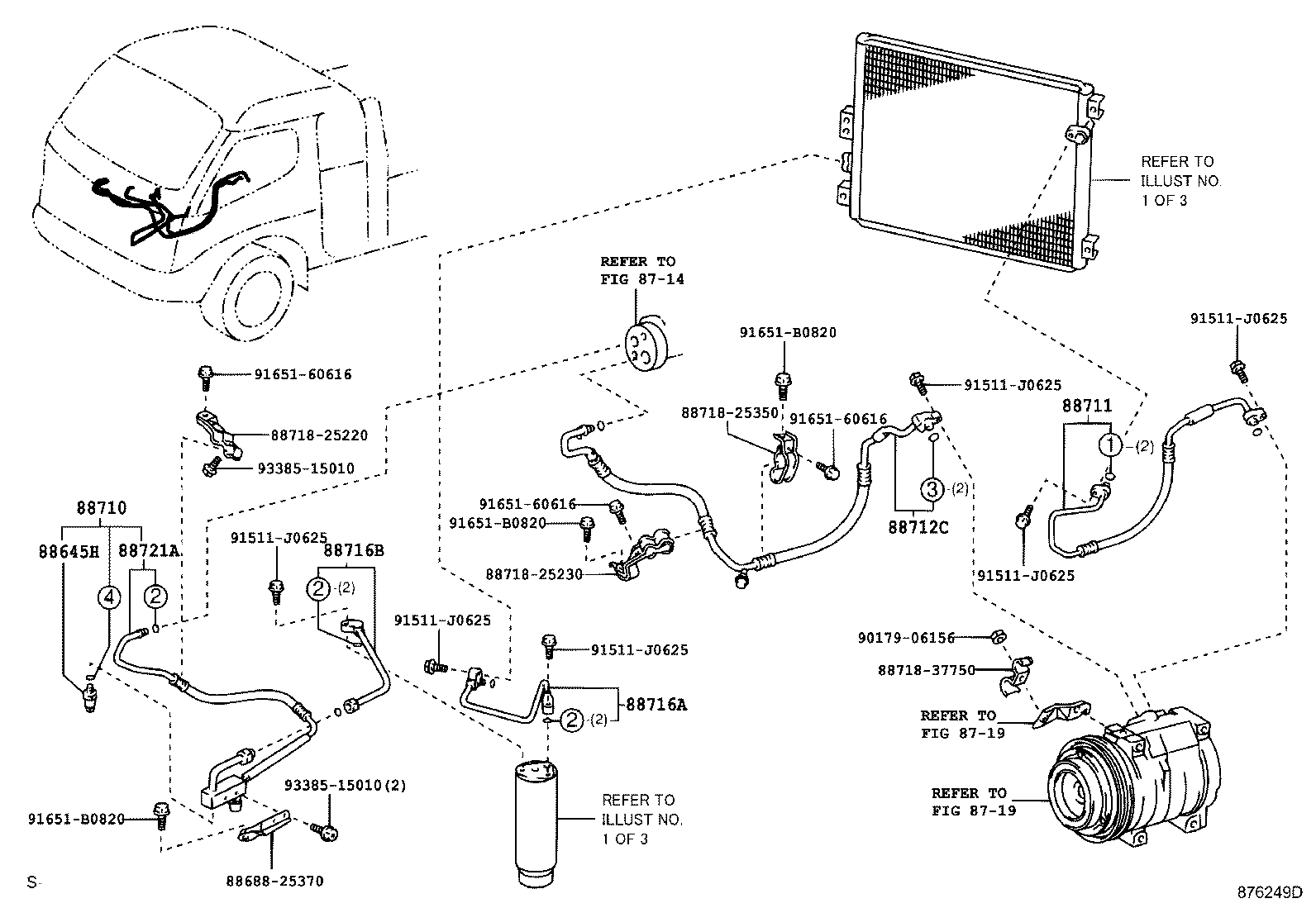

Figure 874900L 874900L 2001-07 → — Figure 877511D 877511D 2001-08 → 2002-04 Figure 876248E 876248E 2002-04 → — Figure 874901M 874901M 2001-07 → 2015-02 Figure 876249D 876249D 2001-08 → 2015-02 Figure 87G027 87G027 2016-10 → — Figure 874869F 874869F 2001-07 → —

Part groups

PNCDescription
87138S Resistor, Blower
88374B Valve, Service, NO.1
88375B Cap, Service Valve, NO.1
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88461A Core, Cooler Condenser
88462A Holder, Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712B Hose, Cooler Refrigerant Suction
88712C Hose, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88721A Hose, Liquid, A
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
