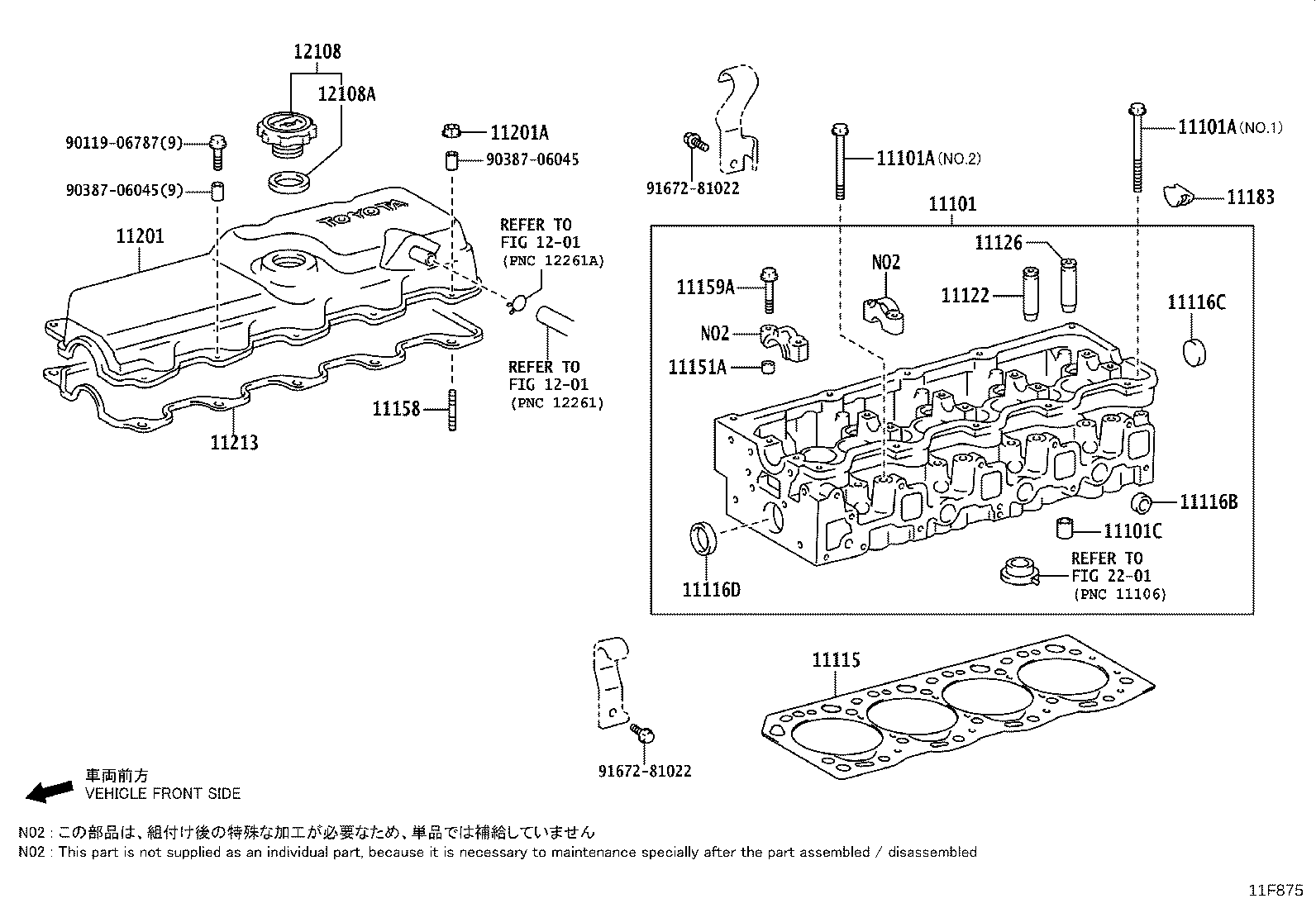

Exploded illustration 11F875 9011906787 — not listed in this catalogue 11101 — HEAD SUB-ASSY, CYLINDER (3 parts) 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (5 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (1 parts) 11115 — GASKET, CYLINDER HEAD (13 parts) 11101C — TUBE(FOR CYLINDER HEAD) (1 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (6 parts) 11183 — PLUG, SEMICIRCULAR (1 parts) 11213 — GASKET, CYLINDER HEAD COVER (3 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (3 parts) 9038706045 — not listed in this catalogue 11116D — PLUG, TIGHT, NO.4 (1 parts) 11116B — PLUG, TIGHT, NO.2 (1 parts) 11116C — PLUG, TIGHT, NO.3 (1 parts) 9167281022 — not listed in this catalogue 9167281022 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (3 parts) 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 9038706045 — not listed in this catalogue 11201A — NUT, CAP(FOR CYLINDER HEAD COVER) (1 parts) 11158 — BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) (1 parts) 1201 — not listed in this catalogue 1201 — not listed in this catalogue 2201 — not listed in this catalogue 11101A — BOLT(FOR CYLINDER HEAD SET) (6 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (6 parts)
11F875 · 19 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-11161 Head Sub-assy, Cylinder
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11101-11161 Head Sub-assy, Cylinder
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11101-54150 Head Sub-assy, Cylinder
2022-02 → 2025-03 ended
5L LY230 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02080 note Bolt(FOR CYLINDER HEAD SET)
2022-02 → 2025-03 ended
5L LY230 —
90910-02081 note Bolt(FOR CYLINDER HEAD SET)
2022-02 → 2025-03 ended
5L LY230 —
90910-02192 note Bolt(FOR CYLINDER HEAD SET)
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
90910-02192 note Bolt(FOR CYLINDER HEAD SET)
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
90910-02193 note Bolt(FOR CYLINDER HEAD SET)
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
90910-02193 note Bolt(FOR CYLINDER HEAD SET)
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11101C — Tube(FOR CYLINDER HEAD)
90440-15003 Tube(FOR CYLINDER HEAD)
2022-02 → 2025-03 ended
5L LY230 —
11115 — Gasket, Cylinder Head
11115-11120-A0 note Gasket, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11115-11120-A0 note Gasket, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11115-11120-B0 note Gasket, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11115-11120-B0 note Gasket, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11115-11120-C0 note Gasket, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11115-11120-C0 note Gasket, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11115-11120-D0 note Gasket, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11115-11120-D0 note Gasket, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11115-11120-E0 note Gasket, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11115-11120-E0 note Gasket, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11115-54130-B0 note Gasket, Cylinder Head
2022-02 → 2025-03 ended
5L LY230 —
11115-54130-D0 note Gasket, Cylinder Head
2022-02 → 2025-03 ended
5L LY230 —
11115-54130-F0 note Gasket, Cylinder Head
2022-02 → 2025-03 ended
5L LY230 —
11116B — Plug, Tight, NO.2
96411-62500 Plug, Tight, NO.2
2022-02 → 2025-03 ended
5L LY230 —
11116C — Plug, Tight, NO.3
96411-63000 Plug, Tight, NO.3
2022-02 → 2025-03 ended
5L LY230 —
11116D — Plug, Tight, NO.4
96411-64500 Plug, Tight, NO.4
2022-02 → 2025-03 ended
5L LY230 —
11122 — Bush, Intake Valve Guide
11122-30020 note Bush, Intake Valve Guide
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11122-30020 note Bush, Intake Valve Guide
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11122-54020 note Bush, Intake Valve Guide
2022-02 → 2025-03 ended
5L LY230 —
11123-30020 note Bush, Intake Valve Guide
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11123-30020 note Bush, Intake Valve Guide
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11123-54020 note Bush, Intake Valve Guide
2022-02 → 2025-03 ended
5L LY230 —
11126 — Bush, Exhaust Valve Guide
11122-30020 note Bush, Exhaust Valve Guide
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11122-30020 note Bush, Exhaust Valve Guide
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11122-54020 note Bush, Exhaust Valve Guide
2022-02 → 2025-03 ended
5L LY230 —
11123-30020 note Bush, Exhaust Valve Guide
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11123-30020 note Bush, Exhaust Valve Guide
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11123-54020 note Bush, Exhaust Valve Guide
2022-02 → 2025-03 ended
5L LY230 —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2022-02 → 2025-03 ended
5L LY230 —
11158 — Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
92122-80616 note Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
2022-02 → 2025-03 ended
5L LY230 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-08166 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2022-02 → 2025-03 ended
5L LY230 —
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
90109-06080 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
91551-80840 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
91551-80840 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11183 — Plug, Semicircular
11183-54020 Plug, Semicircular
2022-02 → 2025-03 ended
5L LY230 —
11201 — Cover Sub-assy, Cylinder Head
11201-11082 Cover Sub-assy, Cylinder Head
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11201-11082 Cover Sub-assy, Cylinder Head
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11210-54042 Cover Sub-assy, Cylinder Head
2022-02 → 2025-03 ended
5L LY230 —
11201A — Nut, Cap(FOR CYLINDER HEAD COVER)
90179-06319 Nut, Cap(FOR CYLINDER HEAD COVER)
2022-02 → 2025-03 ended
5L LY230 —
11213 — Gasket, Cylinder Head Cover
11213-11070 Gasket, Cylinder Head Cover
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
11213-11070 Gasket, Cylinder Head Cover
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
11213-54050 Gasket, Cylinder Head Cover
2022-02 → 2025-03 ended
5L LY230 —
12108 — Cap Sub-assy, Oil Filler
12180-38010 Cap Sub-assy, Oil Filler
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
12180-38010 Cap Sub-assy, Oil Filler
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
12180-73011 Cap Sub-assy, Oil Filler
2022-02 → 2025-03 ended
5L LY230 —
12108A — Gasket(FOR OIL FILLER CAP)
12195-73010 Gasket(FOR OIL FILLER CAP)
2022-02 → 2025-03 ended
5L LY230 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2021-08 → 2023-05 ended
1GDFTV GDY231 CBU —
90430-35001 Gasket(FOR OIL FILLER CAP)
2021-08 → 2024-05 ended
1GDFTV GDY231 IV3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
