Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02

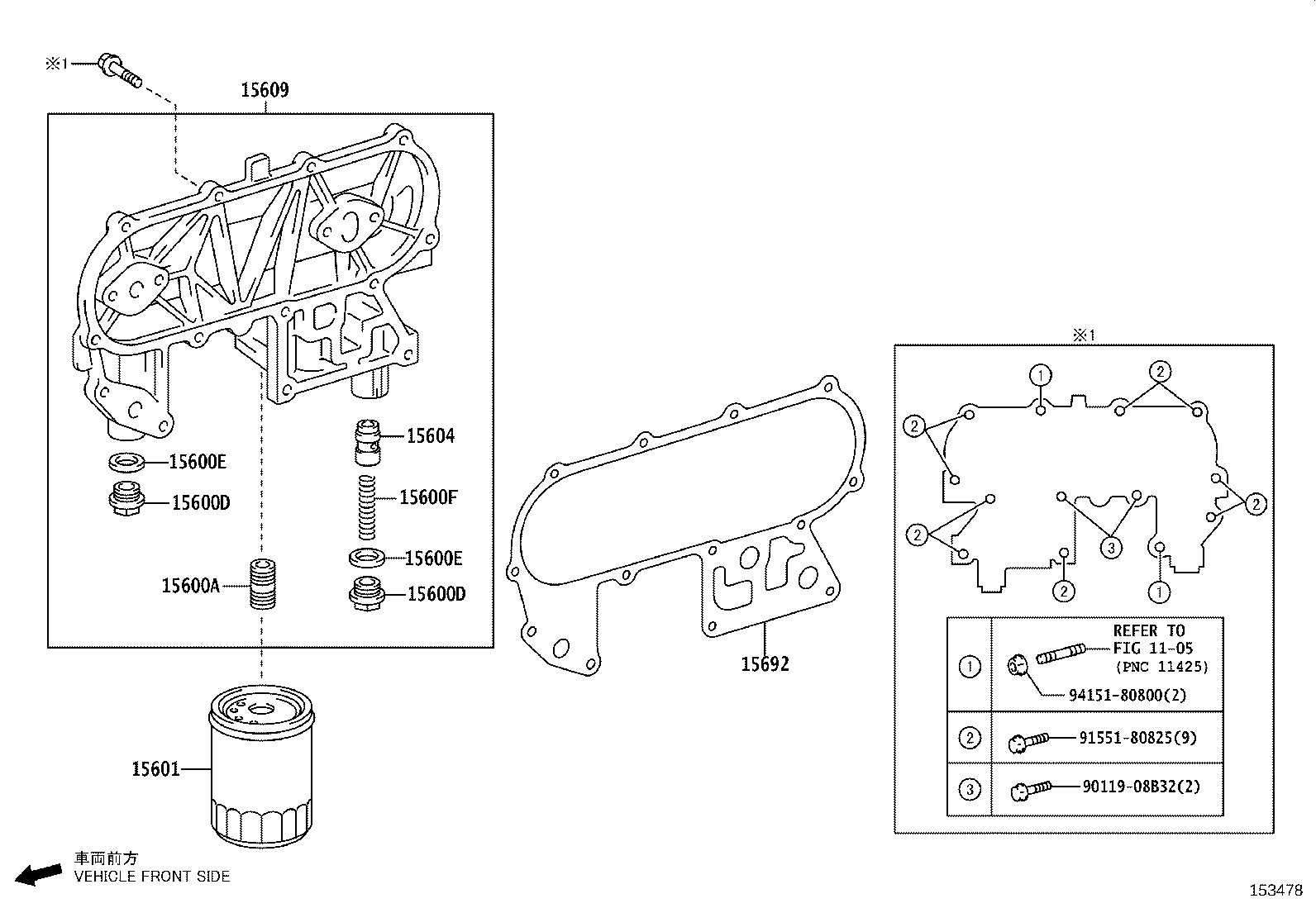

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600A — Union(FOR OIL FILTER) | ||||
| 90404-19011 |
Union(FOR OIL FILTER)
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 90404-19015 |
Union(FOR OIL FILTER)
2021-08 → 2023-05
ended
|
1GDFTV GDY231 CBU | — | |
| 90404-19015 |
Union(FOR OIL FILTER)
2021-08 → 2024-05
ended
|
1GDFTV GDY231 IV3 | — | |
| 15600D — Plug(FOR OIL FILTER) | ||||
| 90341-18015 |
Plug(FOR OIL FILTER)
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15600E — Washer(FOR OIL FILTER) | ||||
| 90430-18029 |
Washer(FOR OIL FILTER)
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15600F — Spring, Compression(FOR OIL FILTER) | ||||
| 90501-16026 |
Spring, Compression(FOR OIL FILTER)
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-20005 |
Filter Sub-assy, Oil
2021-08 → 2023-05
ended
|
1GDFTV GDY231 CBU | — | |
| 90915-20005 |
Filter Sub-assy, Oil
2021-08 → 2024-05
ended
|
1GDFTV GDY231 IV3 | — | |
| 90915-40002 |
Filter Sub-assy, Oil
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15604 — Valve Sub-assy, Oil Safety | ||||
| 15131-54010 |
Valve Sub-assy, Oil Safety
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-54014 |
Bracket Sub-assy, Oil Filter
2022-02 → 2025-03
ended
|
5L LY230 | — | |
| 15692 — Gasket, Oil Filter Bracket | ||||
| 15692-54050 |
Gasket, Oil Filter Bracket
2022-02 → 2025-03
ended
|
5L LY230 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
