Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

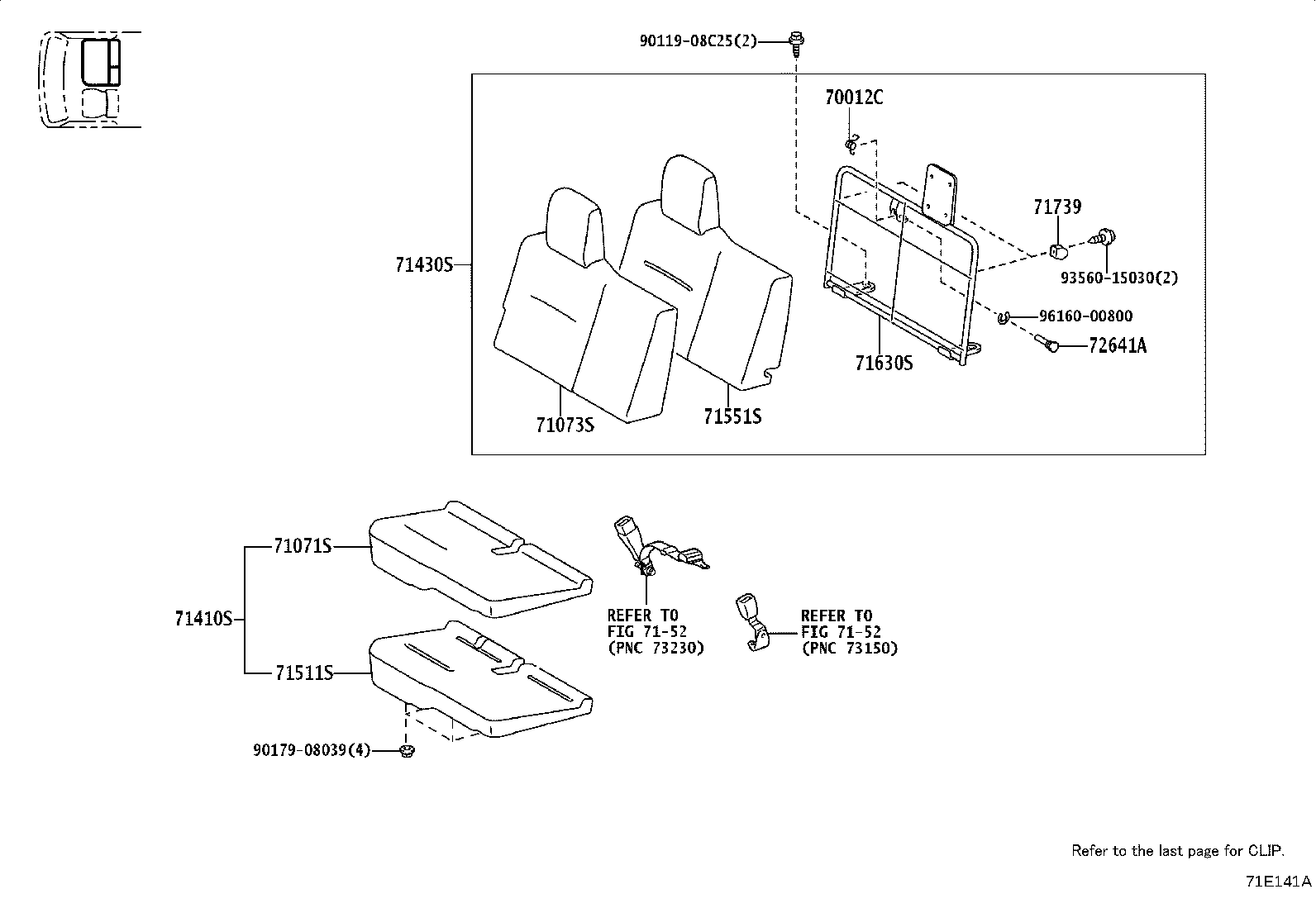

Exploded illustration 71E141B 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (10 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (10 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (4 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (10 parts) 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (10 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 9017908039 — not listed in this catalogue 70012C — SPRING(FOR SEATBACK) (3 parts) 71739 — CUSHION, SEAT SUPPORT (3 parts) 72641A — PIN, FRONT SEATBACK LOCK (3 parts) 9616000800 — not listed in this catalogue 9356015030 — not listed in this catalogue 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 9011908C25 — not listed in this catalogue
71E141B · 10 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
70012C — Spring(FOR SEATBACK)
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2024-05 ended
GDY231 IV3 —
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2025-03 ended
LY230 LHD —
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2023-05 ended
GDY231 CBU —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-37C70-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71071-37C70-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71071-37C70-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71071-37C70-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71071-37C80-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71071-37C80-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71071-37C80-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71071-37C80-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71071-37D50-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71071-37D60-B0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-37C40-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71073-37C40-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71073-37C40-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71073-37C40-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71073-37C50-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71073-37C50-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71073-37C50-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71073-37C50-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71073-37D20-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71073-37D30-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-37F10-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71410-37F10-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71410-37F10-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71410-37F10-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71410-37F20-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71410-37F20-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71410-37F20-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71410-37F20-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71410-37G20-C0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71410-37G30-B0 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-37E20-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71430-37E20-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71430-37E20-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71430-37E20-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71430-37E30-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71430-37E30-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71430-37E30-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71430-37E30-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71430-37F00-C0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71430-37F10-B0 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71501-37100 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71511-37130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71511-37130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2025-03 ended
LY230 RHD —
71511-37130 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-37280 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71551-37280 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71551-37280 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2025-03 ended
LY230 RHD —
71551-37320 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-37180 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71630-37180 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71630-37180 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2021-08 → 2025-03 ended
LY230 RHD —
71630-37210 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71739 — Cushion, Seat Support
71739-37010 Cushion, Seat Support
2021-08 → 2023-05 ended
GDY231 CBU —
71739-37010 Cushion, Seat Support
2021-08 → 2024-05 ended
GDY231 IV3 —
71739-37010 Cushion, Seat Support
2021-08 → 2025-03 ended
LY230 LHD —
72641A — Pin, Front Seatback Lock
72641-37010 Pin, Front Seatback Lock
2021-08 → 2023-05 ended
GDY231 CBU —
72641-37010 Pin, Front Seatback Lock
2021-08 → 2024-05 ended
GDY231 IV3 —
72641-37010 Pin, Front Seatback Lock
2021-08 → 2025-03 ended
LY230 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
