Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 71E143B 70012C — SPRING(FOR SEATBACK) (3 parts) 71739 — CUSHION, SEAT SUPPORT (3 parts) 72641A — PIN, FRONT SEATBACK LOCK (3 parts) 71131B — PLATE, FRONT SEAT CUSHION, NO.1 (2 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (10 parts) 71236A — CLAMP, REAR SEAT CUSHION SPRING (2 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (10 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (12 parts) 72137F — COVER, SEAT TRACK, NO.2 (2 parts) 9011908C25 — not listed in this catalogue 9011908C25 — not listed in this catalogue 9011908C25 — not listed in this catalogue 9011908C25 — not listed in this catalogue 9616000800 — not listed in this catalogue 9356015030 — not listed in this catalogue 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (12 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (4 parts) 71052 — PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, LH (2 parts)

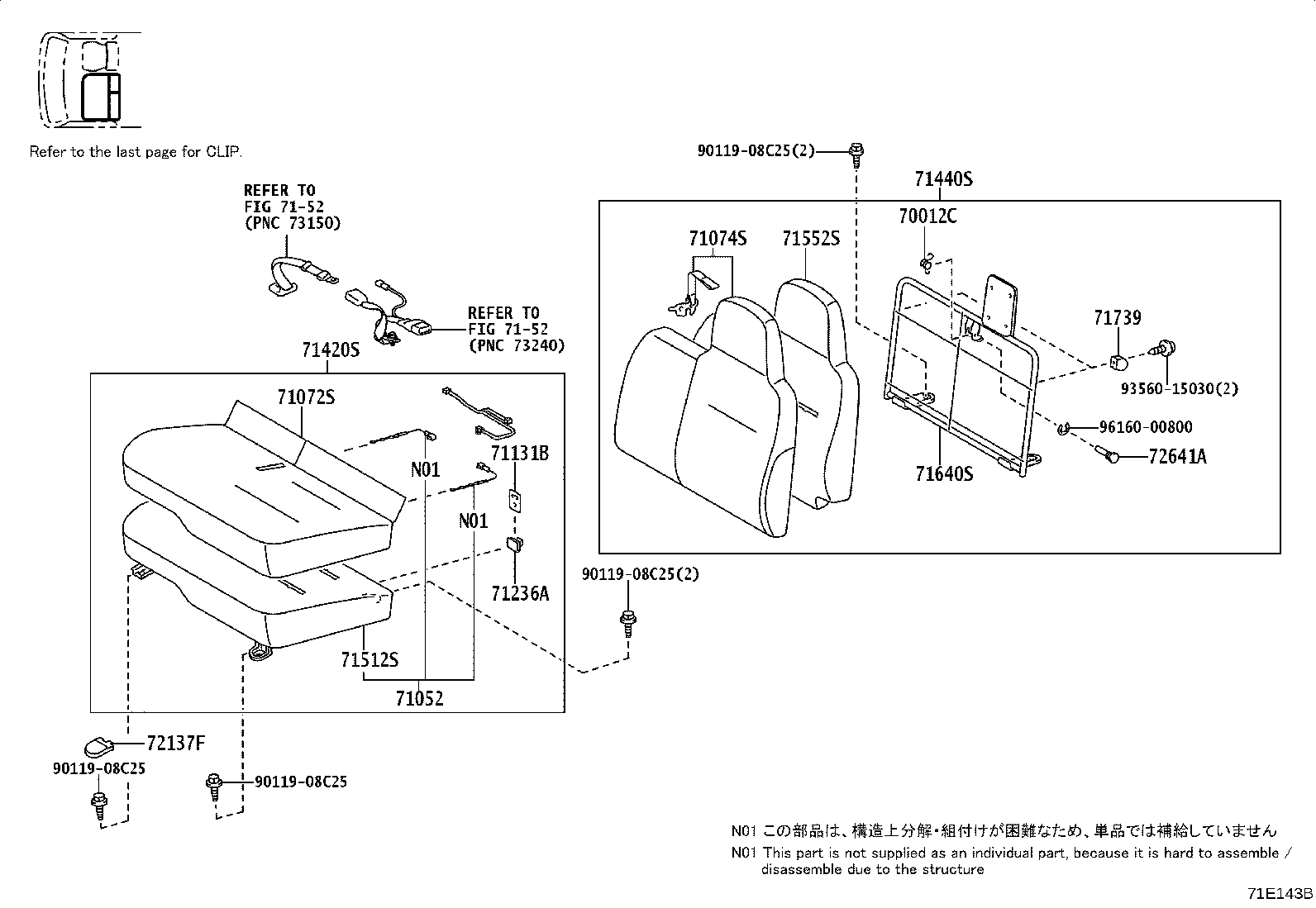

71E143B · 14 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
81 parts on this figure
Part number Description Fitment Price
70012C — Spring(FOR SEATBACK)
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2024-05 ended
GDY231 IV3 —
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2023-05 ended
GDY231 CBU —
71491-89101 Spring(FOR SEATBACK)
2021-08 → 2025-03 ended
LY230 LHD —
71052 — Pad Sub-assy, Front Seat Cushion Sensor, LH
71052-25100 Pad Sub-assy, Front Seat Cushion Sensor, LH
2021-08 → 2023-05 ended
GDY231 CBU —
71052-25100 Pad Sub-assy, Front Seat Cushion Sensor, LH
2021-08 → 2024-05 ended
GDY231 IV3 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25520-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71072-25560-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71072-37F70-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71072-37F80-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-37D20-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D20-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D30-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D30-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71074-37E00-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71074-37E60-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71074-37E70-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71131B — Plate, Front Seat Cushion, NO.1
71131-37030 Plate, Front Seat Cushion, NO.1
2021-08 → 2023-05 ended
GDY231 CBU —
71131-37030 Plate, Front Seat Cushion, NO.1
2021-08 → 2024-05 ended
GDY231 IV3 —
71236A — Clamp, Rear Seat Cushion Spring
71236-37010 Clamp, Rear Seat Cushion Spring
2021-08 → 2024-05 ended
GDY231 IV3 —
71236-37010 Clamp, Rear Seat Cushion Spring
2021-08 → 2023-05 ended
GDY231 CBU —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25A40-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71420-25A50-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71420-37Q40-C1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71420-37Q50-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-37D90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37D90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E30-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E30-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E40-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E40-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E50-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E50-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E80-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71440-37E90-B3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71440-37F90-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71440-37G00-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-25110 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71502-25120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71502-25120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71511-37120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71552-37270 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71552-37270 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37280 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71552-37310 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71014-37200 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37200 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71014-37210 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71640-37110 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71739 — Cushion, Seat Support
71739-37010 Cushion, Seat Support
2021-08 → 2023-05 ended
GDY231 CBU —
71739-37010 Cushion, Seat Support
2021-08 → 2024-05 ended
GDY231 IV3 —
71739-37010 Cushion, Seat Support
2021-08 → 2025-03 ended
LY230 LHD —
72137F — Cover, Seat Track, NO.2
72137-35050-B2 note Cover, Seat Track, NO.2
2021-08 → 2023-05 ended
GDY231 CBU —
72137-35050-B2 note Cover, Seat Track, NO.2
2021-08 → 2024-05 ended
GDY231 IV3 —
72641A — Pin, Front Seatback Lock
72641-37010 Pin, Front Seatback Lock
2021-08 → 2023-05 ended
GDY231 CBU —
72641-37010 Pin, Front Seatback Lock
2021-08 → 2024-05 ended
GDY231 IV3 —
72641-37010 Pin, Front Seatback Lock
2021-08 → 2025-03 ended
LY230 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
