Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

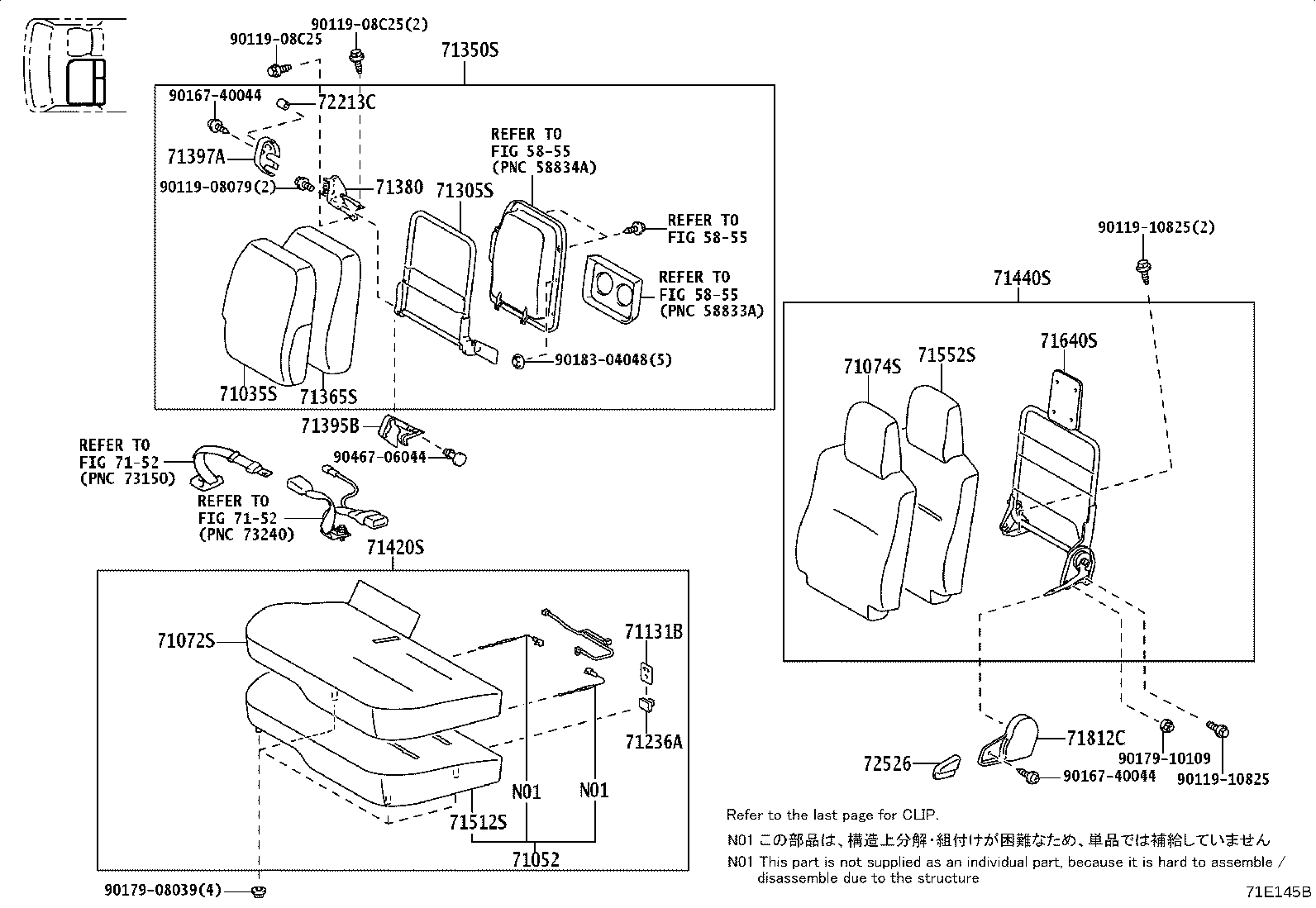

Exploded illustration 71E145B 71035S — COVER, FRONT SEATBACK, CENTER (6 parts) 9016740044 — not listed in this catalogue 71365S — PAD, CENTER SEATBACK (5 parts) 71395B — COVER, CENTER SEAT HINGE, RH (1 parts) 71305S — FRAME SUB-ASSY, CENTER SEATBACK (5 parts) 71380 — HINGE ASSY, CENTER SEAT, RH (1 parts) 71397A — COVER, CENTER SEAT HINGE (1 parts) 72213C — KNOB, SEAT TRACK ADJUSTING HANDLE, LH (1 parts) 5855 — not listed in this catalogue 9011908C25 — not listed in this catalogue 9017910109 — not listed in this catalogue 9011910825 — not listed in this catalogue 9011910825 — not listed in this catalogue 9011908C25 — not listed in this catalogue 9018304048 — not listed in this catalogue 9011908079 — not listed in this catalogue 9046706044 — not listed in this catalogue 71812C — COVER, RECLINING ADJUSTER, LH (2 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (2 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (12 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (8 parts) 9016740044 — not listed in this catalogue 5855 — not listed in this catalogue 5855 — not listed in this catalogue 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (12 parts) 71350S — BACK ASSY, FRONT SEAT, CENTER (6 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (4 parts) 71131B — PLATE, FRONT SEAT CUSHION, NO.1 (2 parts) 71236A — CLAMP, REAR SEAT CUSHION SPRING (2 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (10 parts) 9017908039 — not listed in this catalogue 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (10 parts) 71052 — PAD SUB-ASSY, FRONT SEAT CUSHION SENSOR, LH (2 parts)
71E145B · 20 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
71035S — Cover, Front Seatback, Center
71095-37741-C0 note Cover, Front Seatback, Center
2021-08 → 2023-05 ended
GDY231 CBU —
71095-37741-C0 note Cover, Front Seatback, Center
2022-02 → 2024-05 ended
GDY231 IV3 —
71095-37751-B0 note Cover, Front Seatback, Center
2021-08 → 2023-05 ended
GDY231 CBU —
71095-37751-B0 note Cover, Front Seatback, Center
2022-02 → 2024-05 ended
GDY231 IV3 —
71095-37791-C0 note Cover, Front Seatback, Center
2022-02 → 2025-03 ended
LY230 RHD —
71095-37801-B0 note Cover, Front Seatback, Center
2022-02 → 2025-03 ended
LY230 RHD —
71052 — Pad Sub-assy, Front Seat Cushion Sensor, LH
71052-25100 Pad Sub-assy, Front Seat Cushion Sensor, LH
2021-08 → 2023-05 ended
GDY231 CBU —
71052-25100 Pad Sub-assy, Front Seat Cushion Sensor, LH
2021-08 → 2024-05 ended
GDY231 IV3 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25470-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71072-25480-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71072-25520-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71072-25560-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71072-37F70-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71072-37F80-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-37D20-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D20-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D30-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D30-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71074-37D50-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71074-37D90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71074-37E00-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71074-37E60-C2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71074-37E70-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71131B — Plate, Front Seat Cushion, NO.1
71131-37030 Plate, Front Seat Cushion, NO.1
2021-08 → 2023-05 ended
GDY231 CBU —
71131-37030 Plate, Front Seat Cushion, NO.1
2021-08 → 2024-05 ended
GDY231 IV3 —
71236A — Clamp, Rear Seat Cushion Spring
71236-37010 Clamp, Rear Seat Cushion Spring
2021-08 → 2023-05 ended
GDY231 CBU —
71236-37010 Clamp, Rear Seat Cushion Spring
2021-08 → 2024-05 ended
GDY231 IV3 —
71305S — Frame Sub-assy, Center Seatback
71305-37020 note Frame Sub-assy, Center Seatback
2021-08 → 2023-05 ended
GDY231 CBU —
71305-37020 note Frame Sub-assy, Center Seatback
2021-08 → 2023-05 ended
GDY231 CBU —
71305-37020 note Frame Sub-assy, Center Seatback
2021-08 → 2024-05 ended
GDY231 IV3 —
71305-37020 note Frame Sub-assy, Center Seatback
2022-02 → 2024-05 ended
GDY231 IV3 —
71305-37120 Frame Sub-assy, Center Seatback
2022-02 → 2025-03 ended
LY230 RHD —
71350S — Back Assy, Front Seat, Center
71350-37A91-C1 note Back Assy, Front Seat, Center
2021-08 → 2023-05 ended
GDY231 CBU —
71350-37A91-C1 note Back Assy, Front Seat, Center
2022-02 → 2024-05 ended
GDY231 IV3 —
71350-37B01-B0 note Back Assy, Front Seat, Center
2021-08 → 2023-05 ended
GDY231 CBU —
71350-37B01-B0 note Back Assy, Front Seat, Center
2022-02 → 2024-05 ended
GDY231 IV3 —
71350-37B11-B0 note Back Assy, Front Seat, Center
2022-02 → 2025-03 ended
LY230 RHD —
71350-37B21-B0 note Back Assy, Front Seat, Center
2022-02 → 2025-03 ended
LY230 RHD —
71365S — Pad, Center Seatback
71365-25022 note Pad, Center Seatback
2021-08 → 2023-05 ended
GDY231 CBU —
71365-25022 note Pad, Center Seatback
2021-08 → 2023-05 ended
GDY231 CBU —
71365-25022 note Pad, Center Seatback
2021-08 → 2024-05 ended
GDY231 IV3 —
71365-25022 note Pad, Center Seatback
2022-02 → 2024-05 ended
GDY231 IV3 —
71365-25042 Pad, Center Seatback
2022-02 → 2025-03 ended
LY230 RHD —
71380 — Hinge Assy, Center Seat, RH
71380-37010 Hinge Assy, Center Seat, RH
2022-02 → 2025-03 ended
LY230 RHD —
71395B — Cover, Center Seat Hinge, RH
71395-37010-B1 note Cover, Center Seat Hinge, RH
2022-02 → 2025-03 ended
LY230 RHD —
71397A — Cover, Center Seat Hinge
71397-37010-B1 note Cover, Center Seat Hinge
2022-02 → 2025-03 ended
LY230 RHD —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25870-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71420-25880-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71420-25A40-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71420-25A50-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71420-37Q40-C1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71420-37Q50-B1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-37D90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37D90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E30-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E30-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E40-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E40-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E50-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71440-37E50-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71440-37E80-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71440-37E90-B3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71440-37F90-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71440-37G00-B2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-25110 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71502-25120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71502-25120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71511-37120 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71552-37260 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71552-37270 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71552-37270 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71552-37280 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71552-37310 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2024-05 ended
GDY231 IV3 —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71014-37190 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37200 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2023-05 ended
GDY231 CBU —
71014-37200 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2021-08 → 2024-05 ended
GDY231 IV3 —
71014-37210 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 RHD —
71640-37110 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2022-02 → 2025-03 ended
LY230 LHD —
71812C — Cover, Reclining Adjuster, LH
71812-37021-B1 note Cover, Reclining Adjuster, LH
2022-02 → 2025-03 ended
LY230 RHD —
71812-37032-B1 note Cover, Reclining Adjuster, LH
2022-02 → 2025-03 ended
LY230 LHD —
72213C — Knob, Seat Track Adjusting Handle, LH
72213-95J00-B5 note Knob, Seat Track Adjusting Handle, LH
2022-02 → 2025-03 ended
LY230 RHD —
72526 — Handle, Reclining Adjuster Release, LH
72526-37010-B1 note Handle, Reclining Adjuster Release, LH
2022-02 → 2025-03 ended
LY230 RHD —
72526-37030-B1 note Handle, Reclining Adjuster Release, LH
2022-02 → 2025-03 ended
LY230 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
