Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

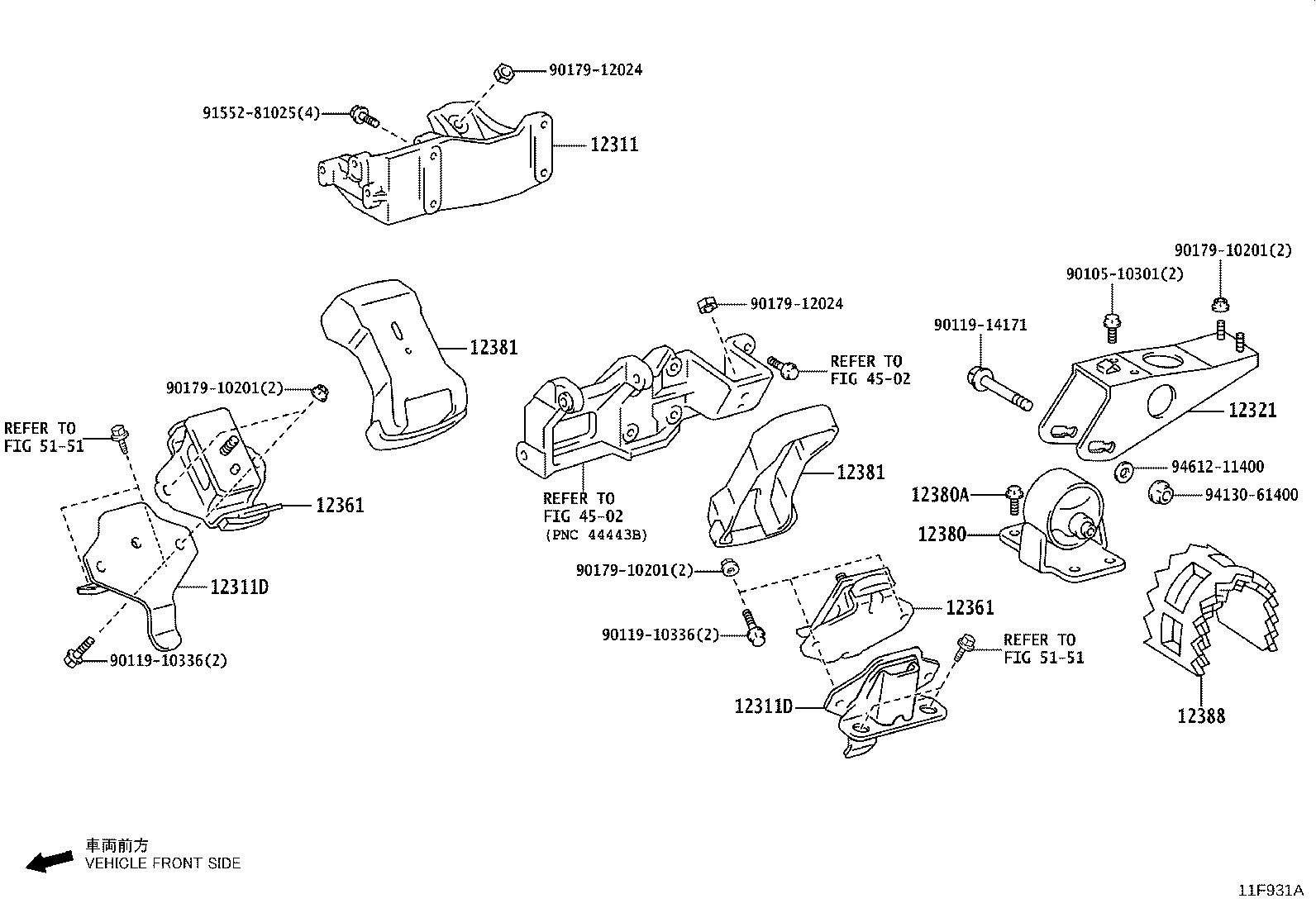

Figure 11G042 11G042 2021-08 → — Figure 11F931A 11F931A 2022-02 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311D Bracket, Engine Mounting
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12361 Insulator, Engine Mounting, Front
12380 Insulator Assy, Engine Mounting, Rear
12380A Bolt(FOR ENGINE MOUNTING INSURATOR)
12381 Stabilizer, Engine Mounting
12381C Stabilizer, Engine Mounting, RH
12382 Stabilizer, Engine Mounting, LH
12388 Stopper, Engine Mounting Bracket, Rear
12391 Insulator, Engine Mounting Front, Heat, RH
12501 Bracket Sub-assy, Alternator
12582 Insulator, Cylinder Block, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
