Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

5 part groups · 2 illustrations

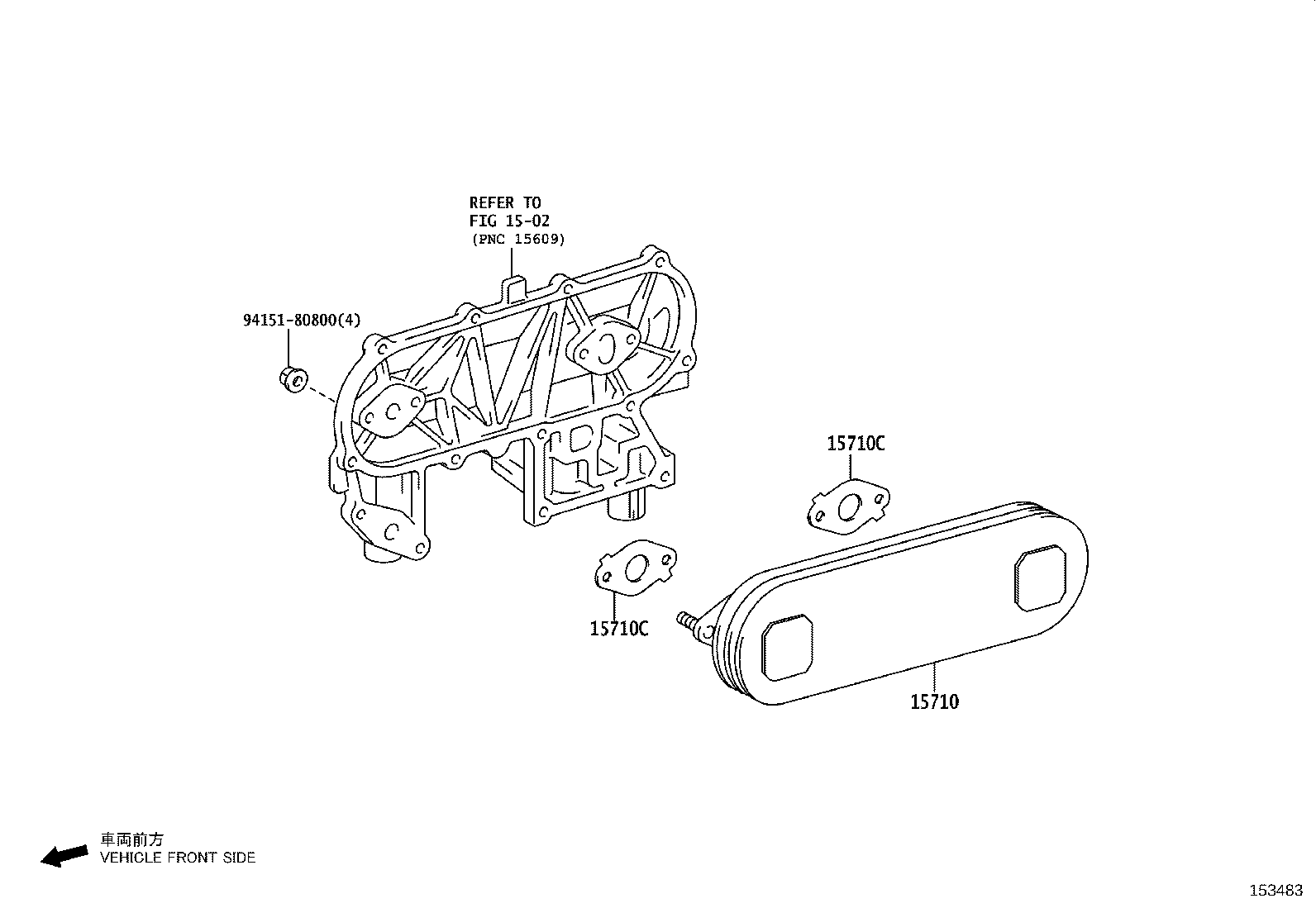

Illustrations

153494 2021-08 → —

153483 2022-02 → —

Part groups

PNC	Description
15071	Cooler Set, Engine Oil
15710	Cooler Assy, Oil
15710C	Gasket(FOR OIL COOLER)
15723	Ring, O
16345A	Gasket, Water Outlet Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
