Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02
Radiator & Water Outlet
124 part groups · 9 illustrations
Part groups

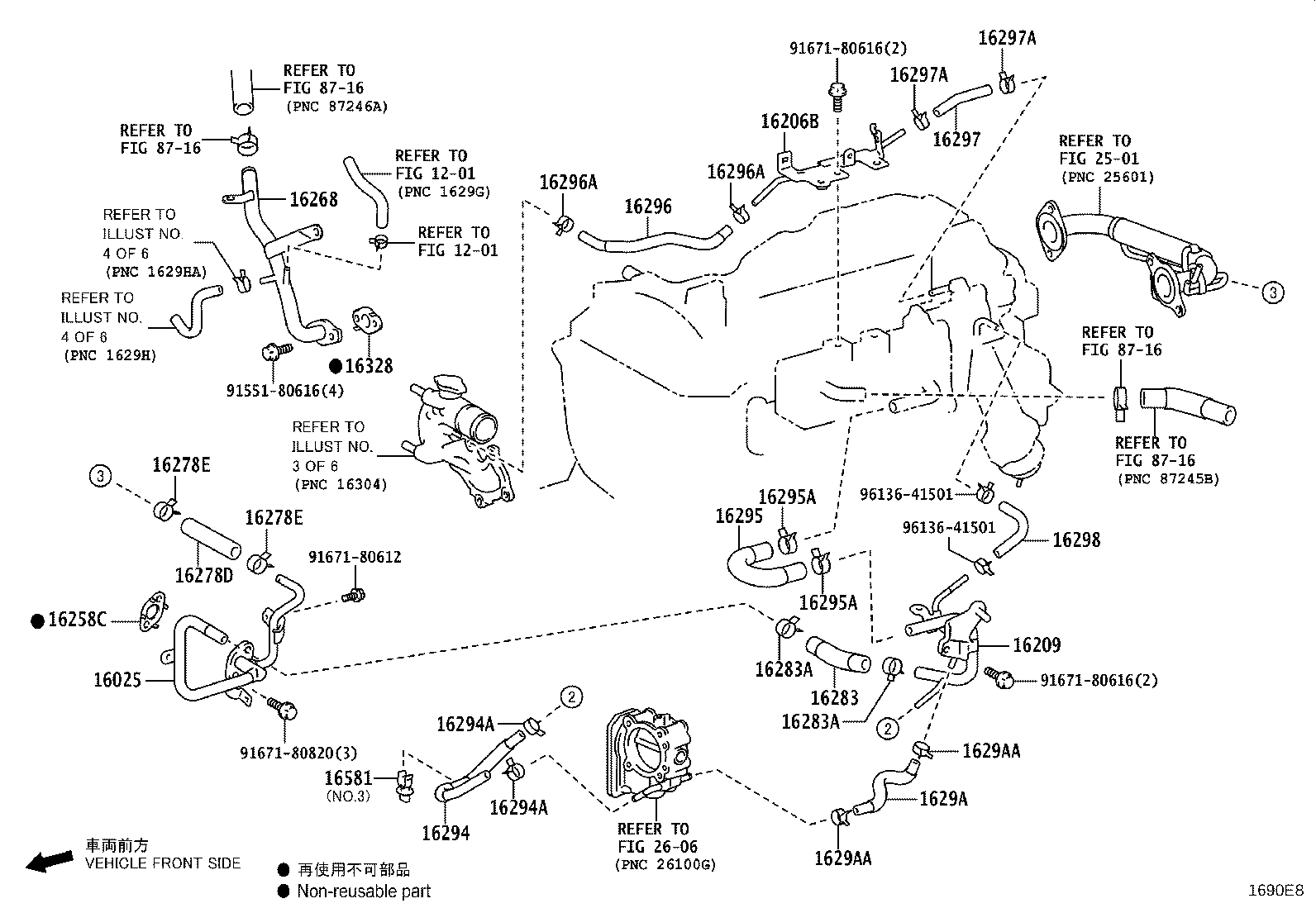

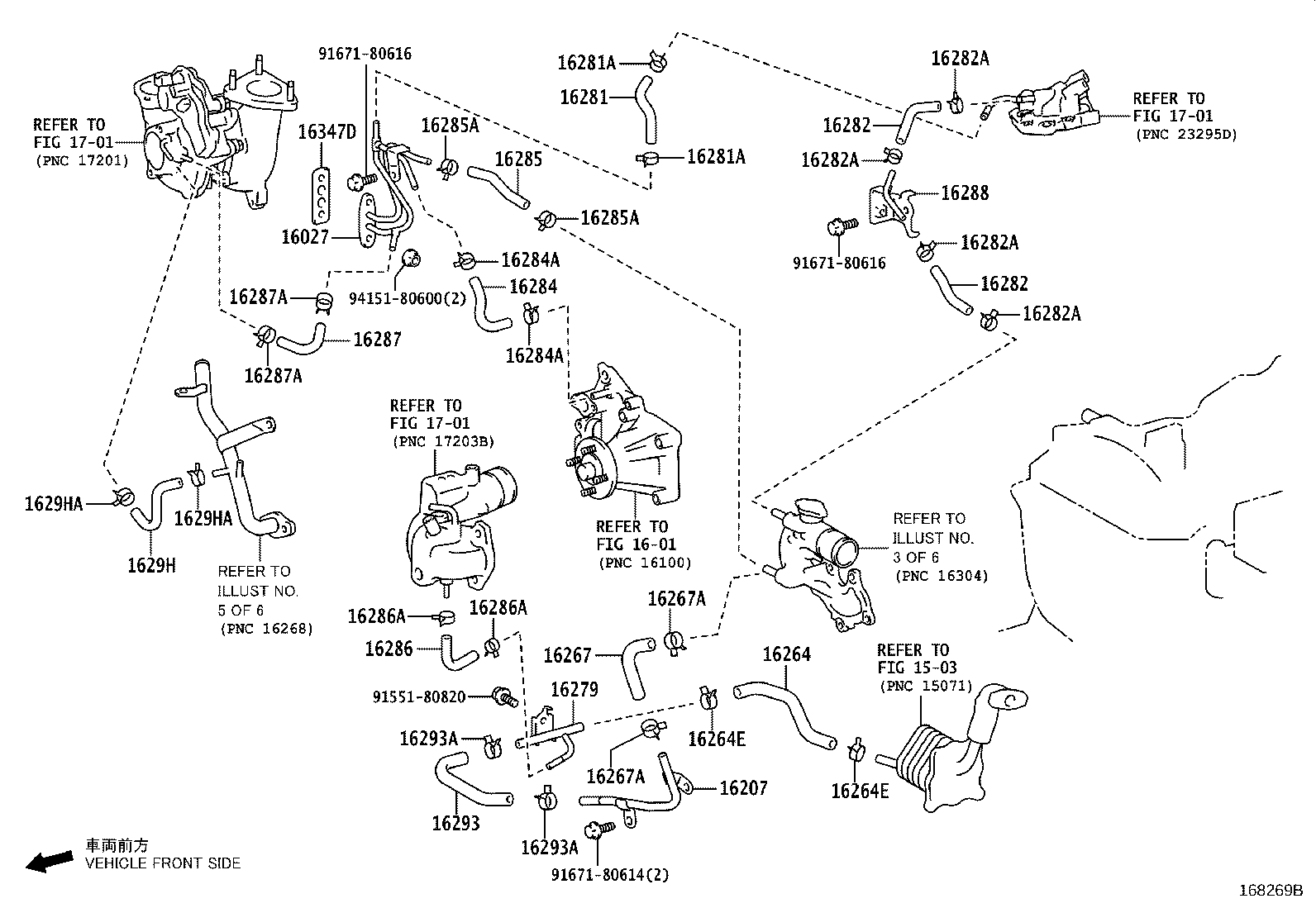

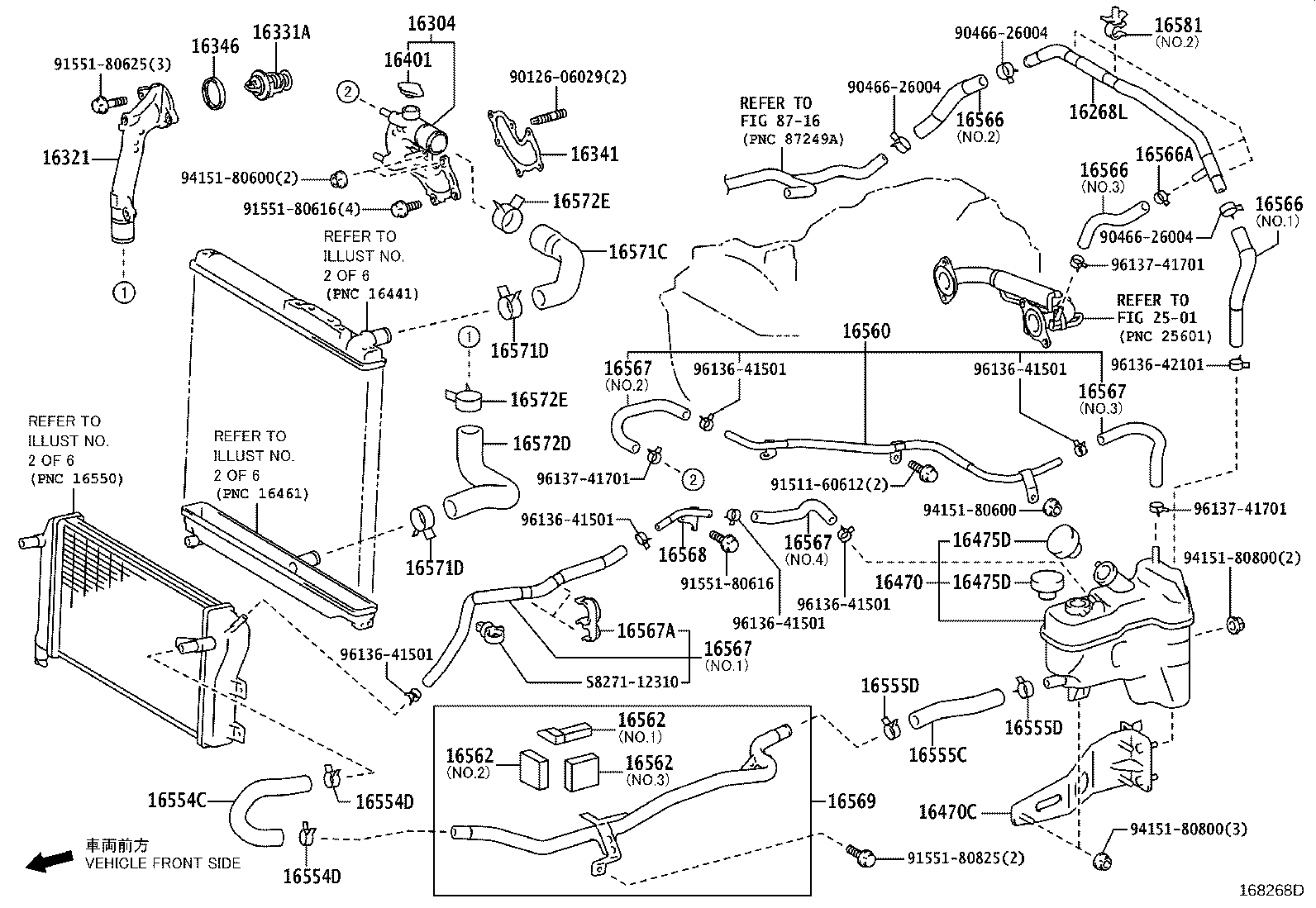

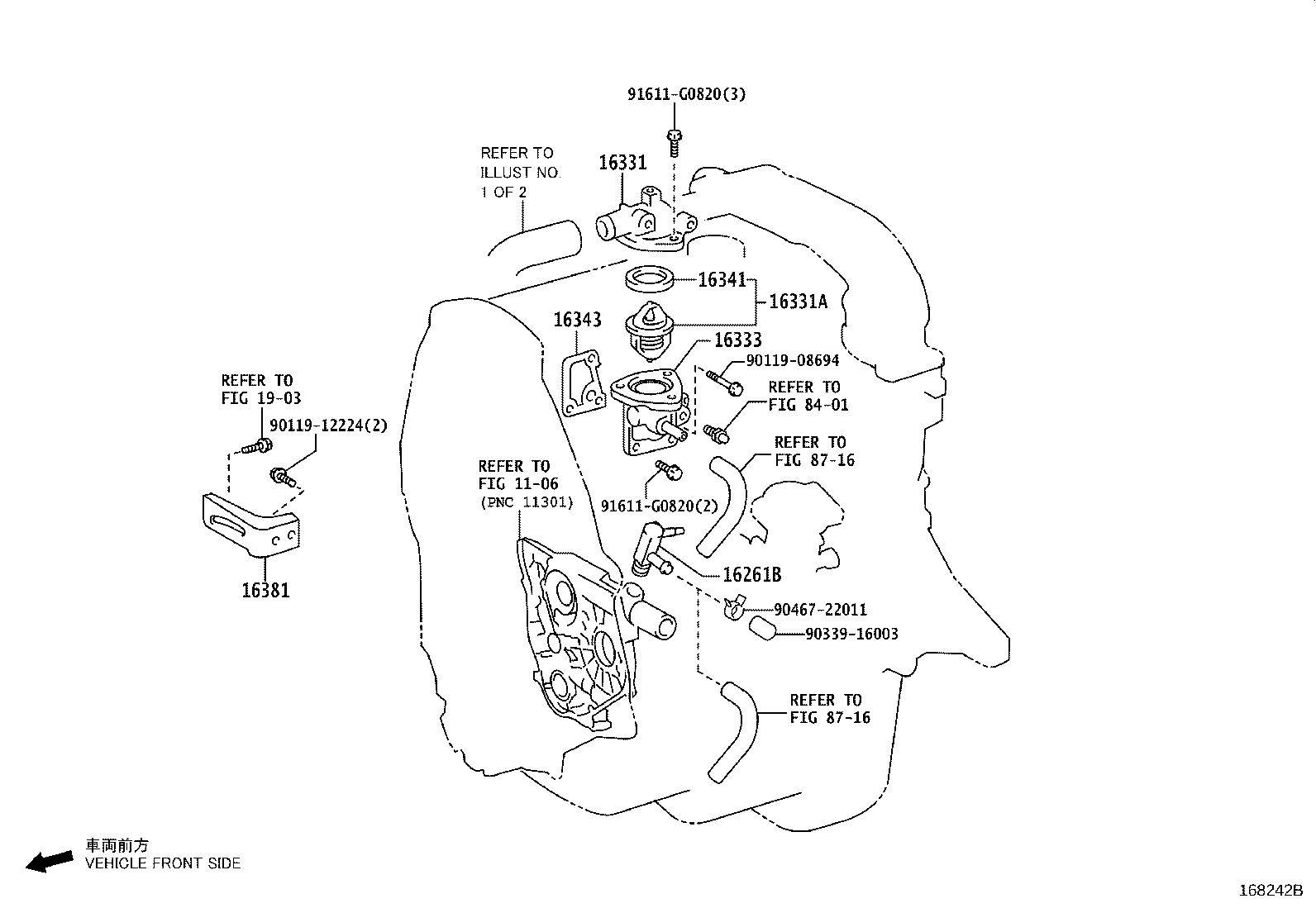

| PNC | Description |
|---|---|
| 16021 | Bracket Sub-assy, Water Pump |
| 16025 | Pipe Sub-assy, Water By-pass, NO.5 |
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 161B0 | Pump Assy, Electric Water |
| 16206B | Pipe Sub-assy, Water By-pass, NO.3 |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16209 | Pipe Sub-assy, Water By-pass, NO.4 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268L | Pipe, Water By-pass |
| 16278D | Hose, Water By-pass |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16286 | Hose, Turbo Water, NO.3 |
| 16286A | Clip(FOR TURBO WATER HOSE NO.3) |
| 16287 | Hose, Turbo Water, NO.4 |
| 16287A | Clip(FOR TURBO WATER HOSE NO.4) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16293 | Hose, Water By-pass, NO.10 |
| 16293A | Clip(FOR WATER BY-PASS HOSE NO.10) |
| 16294 | Hose, Water By-pass, NO.11 |
| 16294A | Clip(FOR WATER BY-PASS HOSE NO.11) |
| 16295 | Hose, Water By-pass, NO.7 |
| 16295A | Clip(FOR WATER BY-PASS HOSE NO.7) |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16298 | Hose, Water By-pass, NO.12 |
| 1629A | Hose, Water By-pass, NO.14 |
| 1629AA | Clip(FOR WATER BY-PASS HOSE NO.14) |
| 1629H | Hose, Water By-pass, NO.21 |
| 1629HA | Clip(FOR WATER BY-PASS HOSE NO.21) |
| 16304 | Outlet Sub-assy, Water |
| 16321 | Inlet, Water |
| 16328 | Gasket, Water Inlet Pipe |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16346 | Gasket, Thermostat |
| 16347D | Gasket, Water By-pass |
| 16361 | Fan |
| 16381 | Bar, Fan Belt Adjusting |

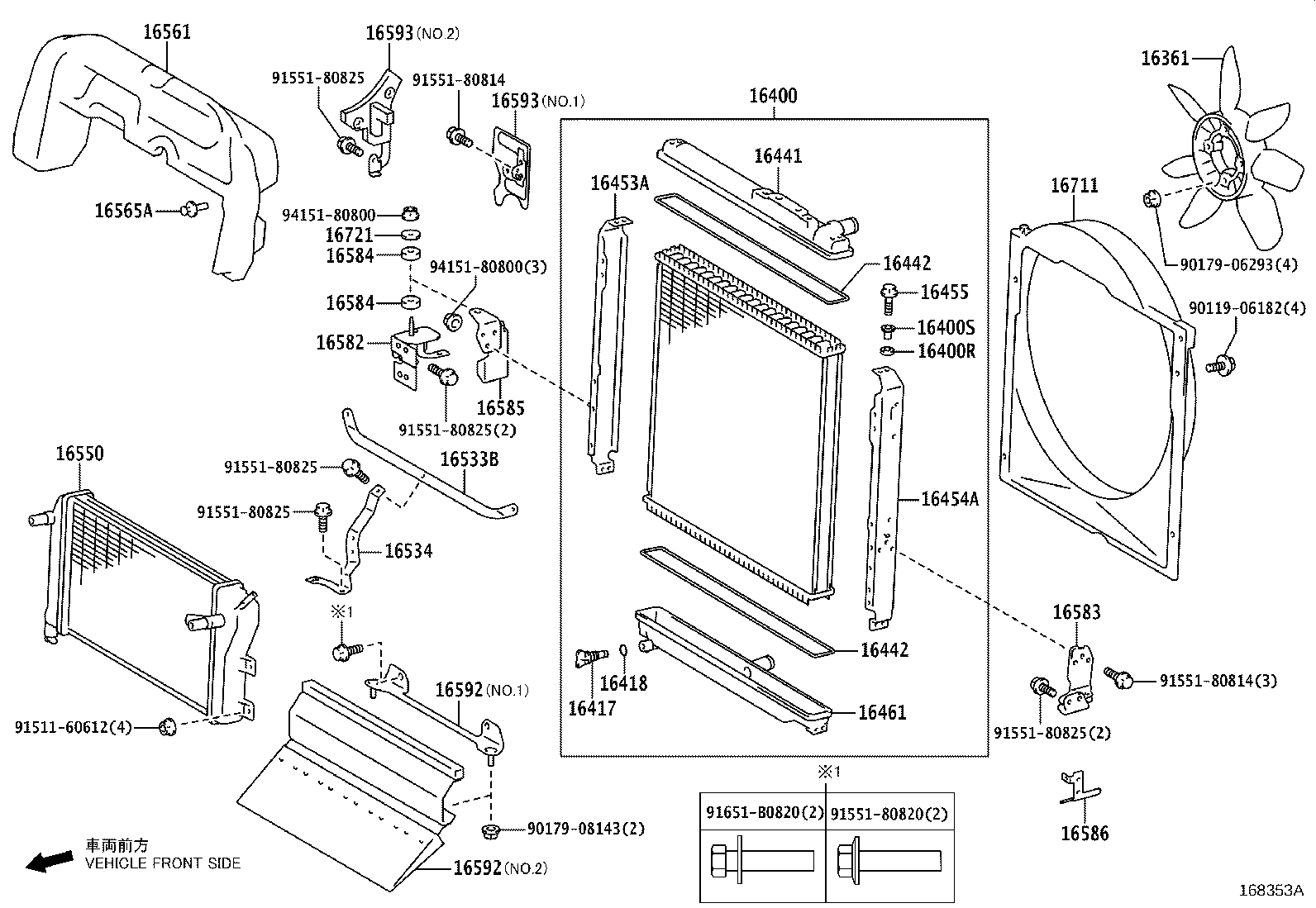

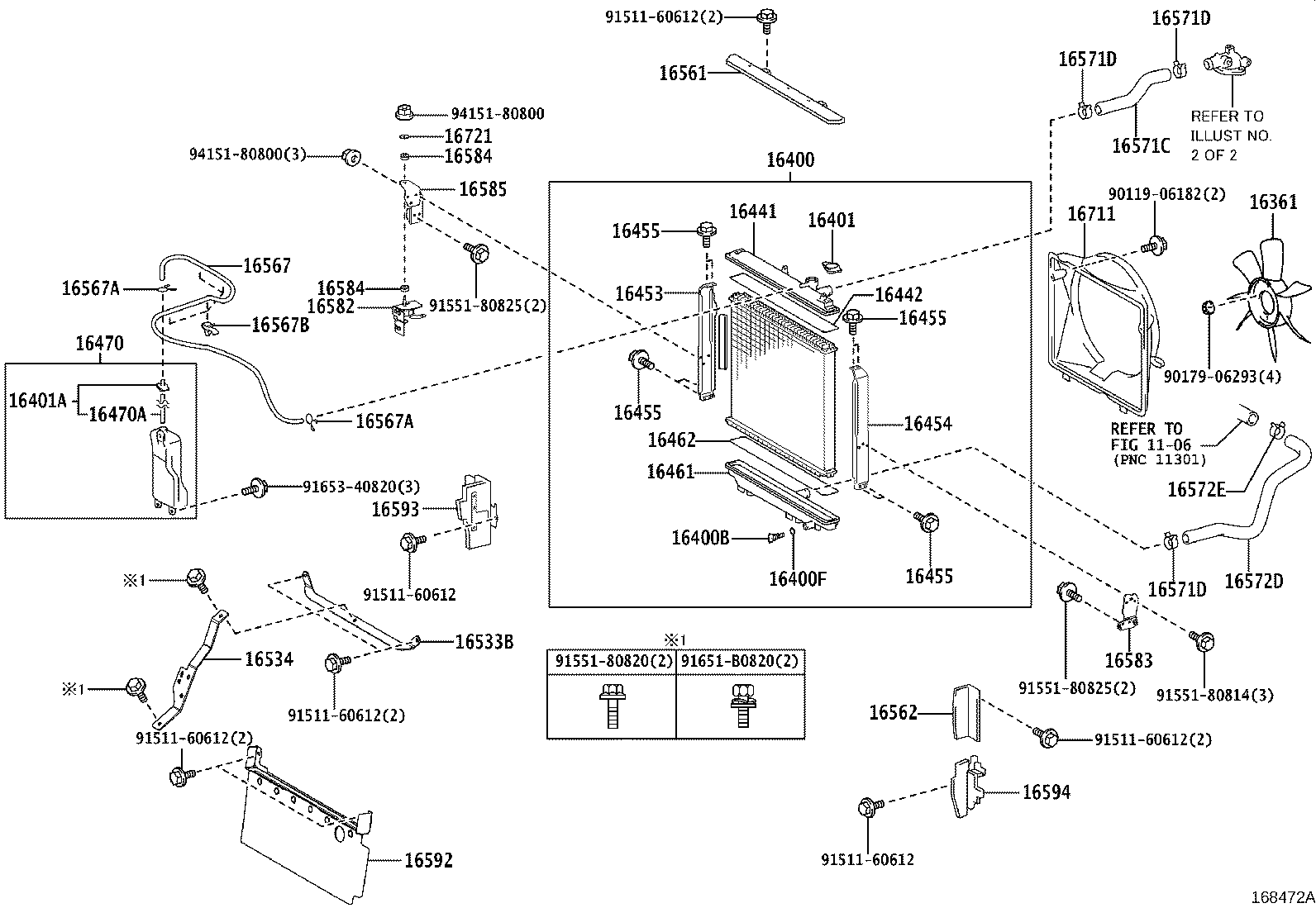

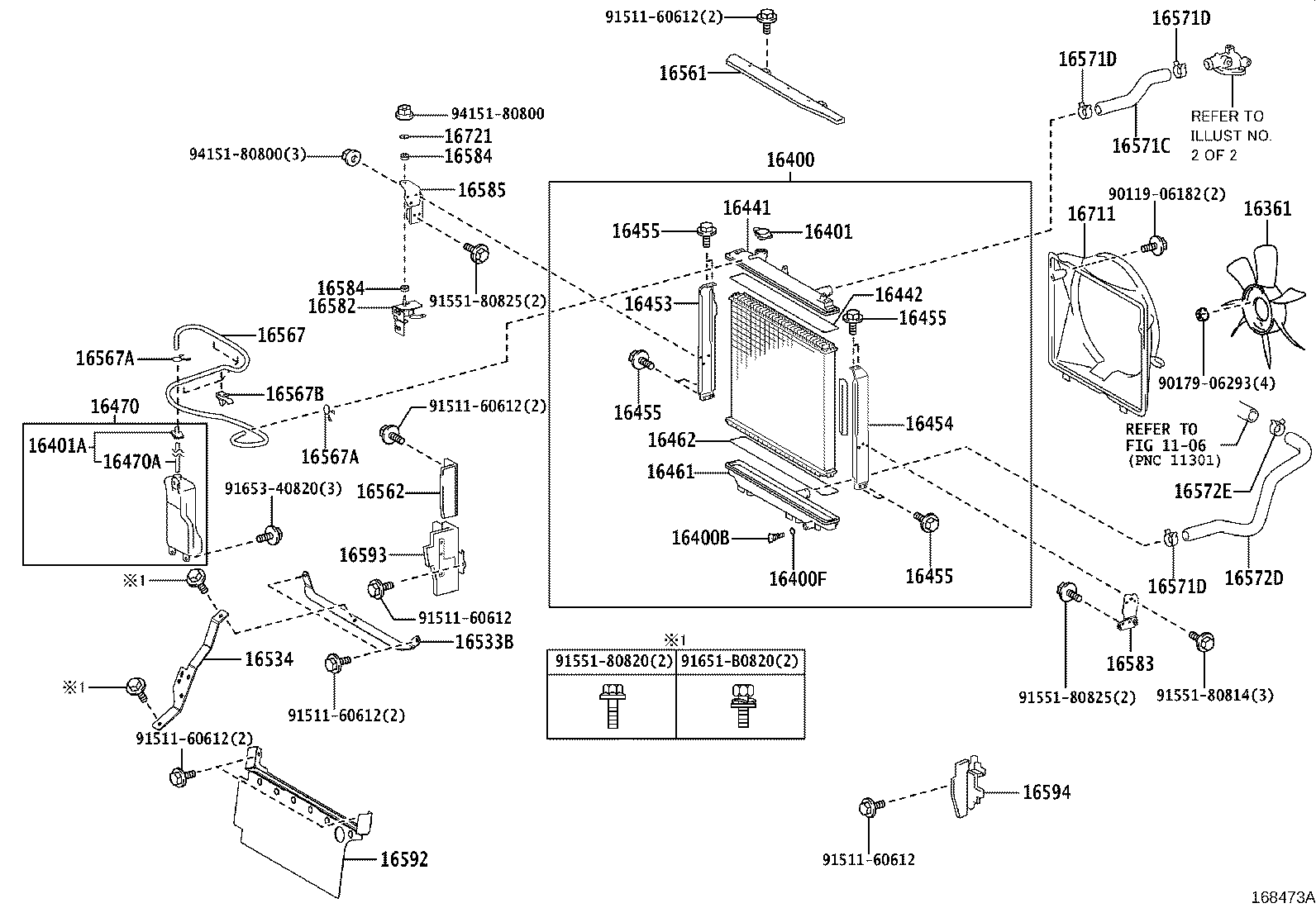

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400R | Bushing(FOR RADIATOR) |
| 16400S | Collar(FOR RADIATOR) |
| 16401 | Cap Sub-assy, Radiator |
| 16401A | Cap Sub-assy, Radiator Reserve Tank |
| 16417 | Cock |
| 16418 | Packing |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16453 | Plate, Radiator Side |
| 16453A | Plate, Radiator Side Support, RH |
| 16454 | Plate, Radiator Side |
| 16454A | Plate, Radiator Side Support, LH |
| 16455 | Bolt, Radiator Side Support Plate |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470C | Bracket(FOR RADIATOR RESERVE TANK) |
| 16475D | Cap, Reserve Tank |
| 16533B | Support, Radiator, NO.1 |
| 16534 | Support, Radiator, NO.2 |
| 16550 | Radiator Assy, Intercooler Cooling |
| 16551C | Hose, Intercooler Cooling Water, NO.1 |
| 16551D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.1) |
| 16552C | Hose, Intercooler Cooling Water, NO.2 |
| 16552D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2) |
| 16553D | Hose, Intercooler Cooling Water, NO.3 |
| 16553E | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3) |
| 16554C | Hose, Intercooler Cooling Water, NO.4 |
| 16554D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) |
| 16555C | Hose, Intercooler Cooling Water, NO.5 |
| 16555D | Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) |
| 16560 | Pipe Assy, Radiator TO Reserve Tank, NO.1 |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16565A | Clip |
| 16566 | Hose, Reserve Tank Outlet |
| 16566A | Clip(FOR RESERVE TANK OUTLET) |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16567A | Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16567B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.2) |
| 16568 | Pipe, Radiator TO Reserve Tank |
| 16569 | Pipe, Radiator, NO.5 |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16584 | Insulator, Radiator Mounting |
| 16585 | Bracket, Radiator, NO.3 |
| 16586 | Bracket, Radiator, NO.4 |
| 16592 | Guide, Radiator Air, NO.3 |
| 16593 | Guide, Radiator Air, NO.1 |
| 16594 | Guide, Radiator Air, NO.2 |
| 16711 | Shroud, Fan |
| 16721 | Plate, Holder |

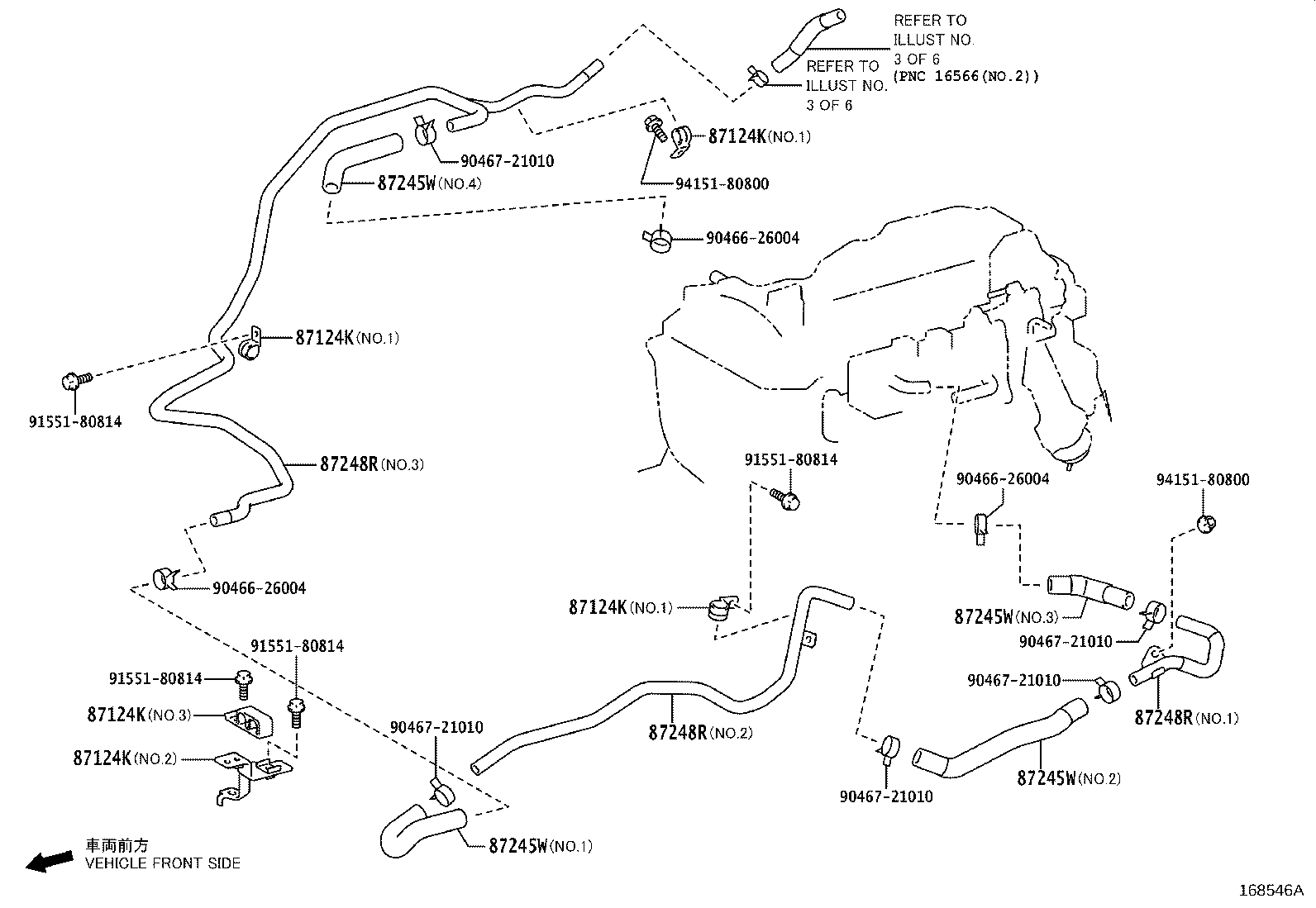

| 87124K | Clamp, Heater |
| 87245W | Hose, Water |
| 87248R | Pipe, Water |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
