Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02

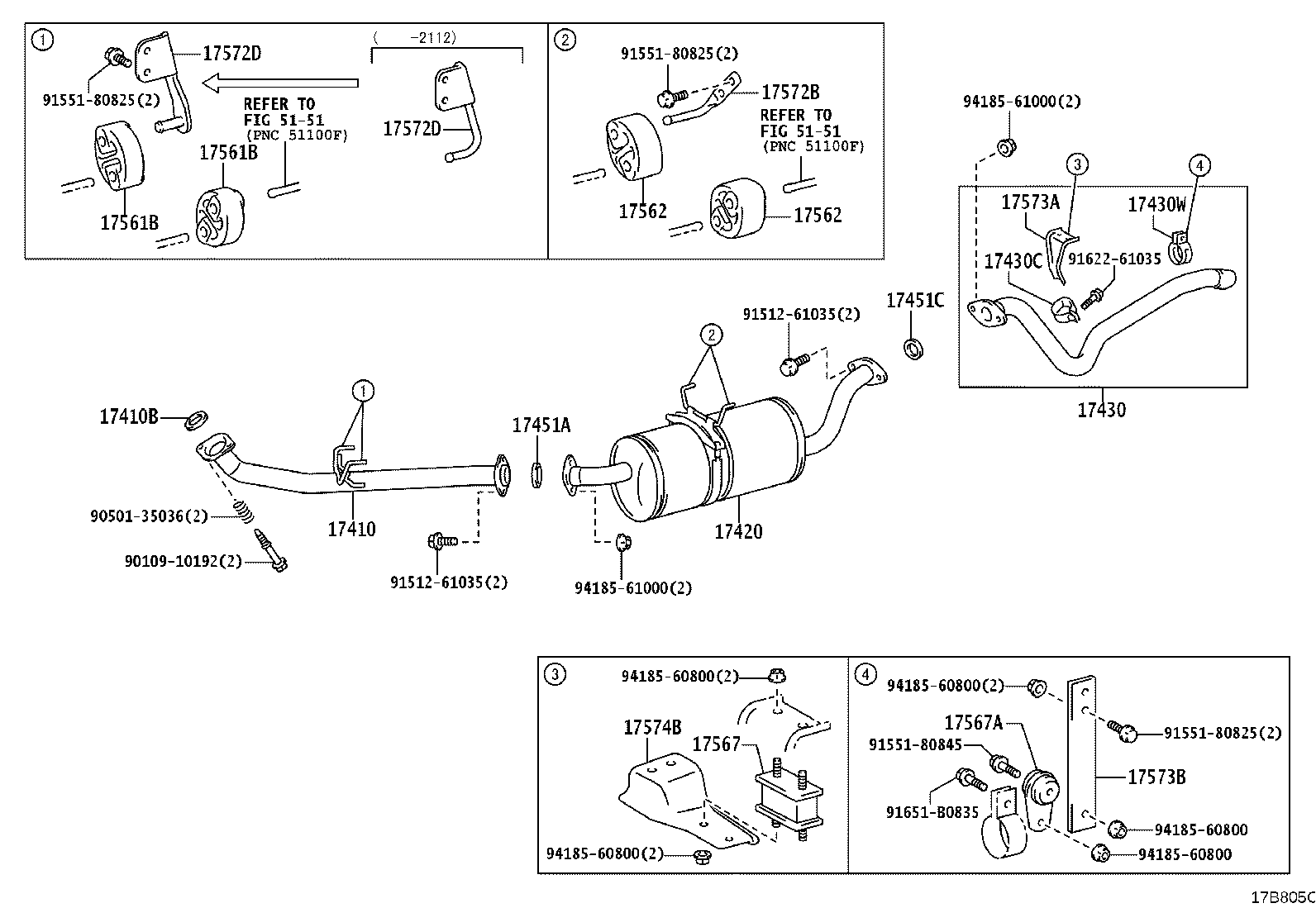

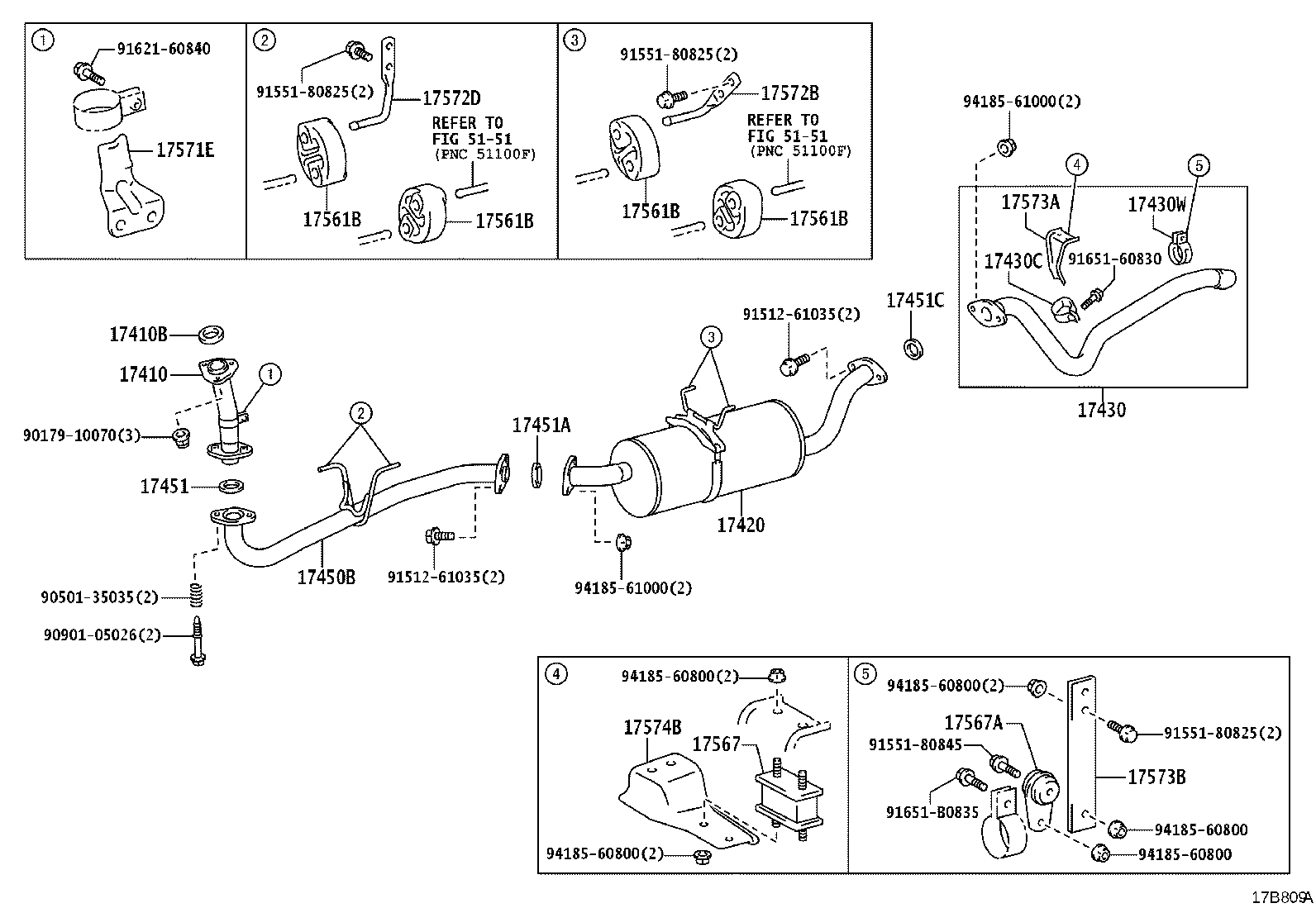

Exhaust Pipe
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430C | Clamp NO.1, Exhaust Tailpipe (FOR FRONT) |
| 17430W | Clamp NO.2, Exhaust Tailpipe (FOR REAR) |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17451C | Gasket, Exhaust Pipe, NO.3 |
| 17452 | Clamp, Exhaust Pipe |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17567 | Cushion, Exhaust Pipe Support |
| 17567A | Cushion, Exhaust Pipe Support, NO.2 |
| 17571E | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17572D | Bracket, Exhaust Pipe Support, NO.1 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17573B | Bracket, Exhaust Pipe Support, NO.5 |
| 17573E | Bracket, Exhaust Pipe Support, NO.3 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17574B | Bracket, Exhaust Pipe Support, NO.4 |
| 17575 | Bracket, Exhaust Pipe Support, NO.5 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17577 | Bracket, Exhaust Pipe Support, NO.7 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
