Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

8 part groups · 2 illustrations

Illustrations

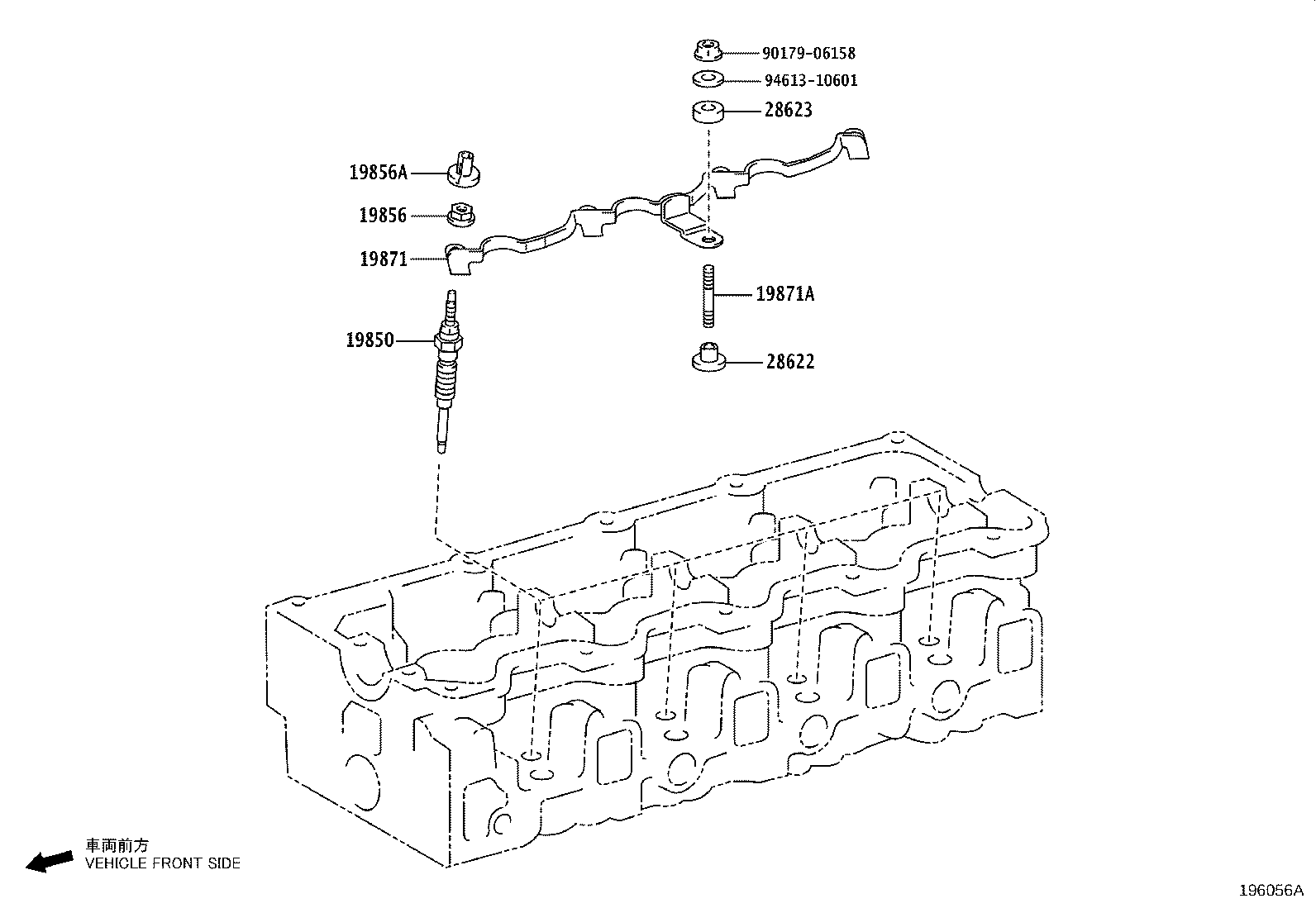

Figure 196080 196080 2021-08 → — Figure 196056A 196056A 2022-02 → —

Part groups

PNCDescription
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19856A Grommet, Screw(FOR, GLOW PLUG CONNECTOR)
19871 Connector, Glow Plug NO.1
19871A Bolt, Stud(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR NO.1)
28622 Insulator, Glow Plug Resistor, NO.1
28623 Insulator, Glow Plug Resistor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
