Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02
Starter
10 part groups · 2 illustrations
Part groups

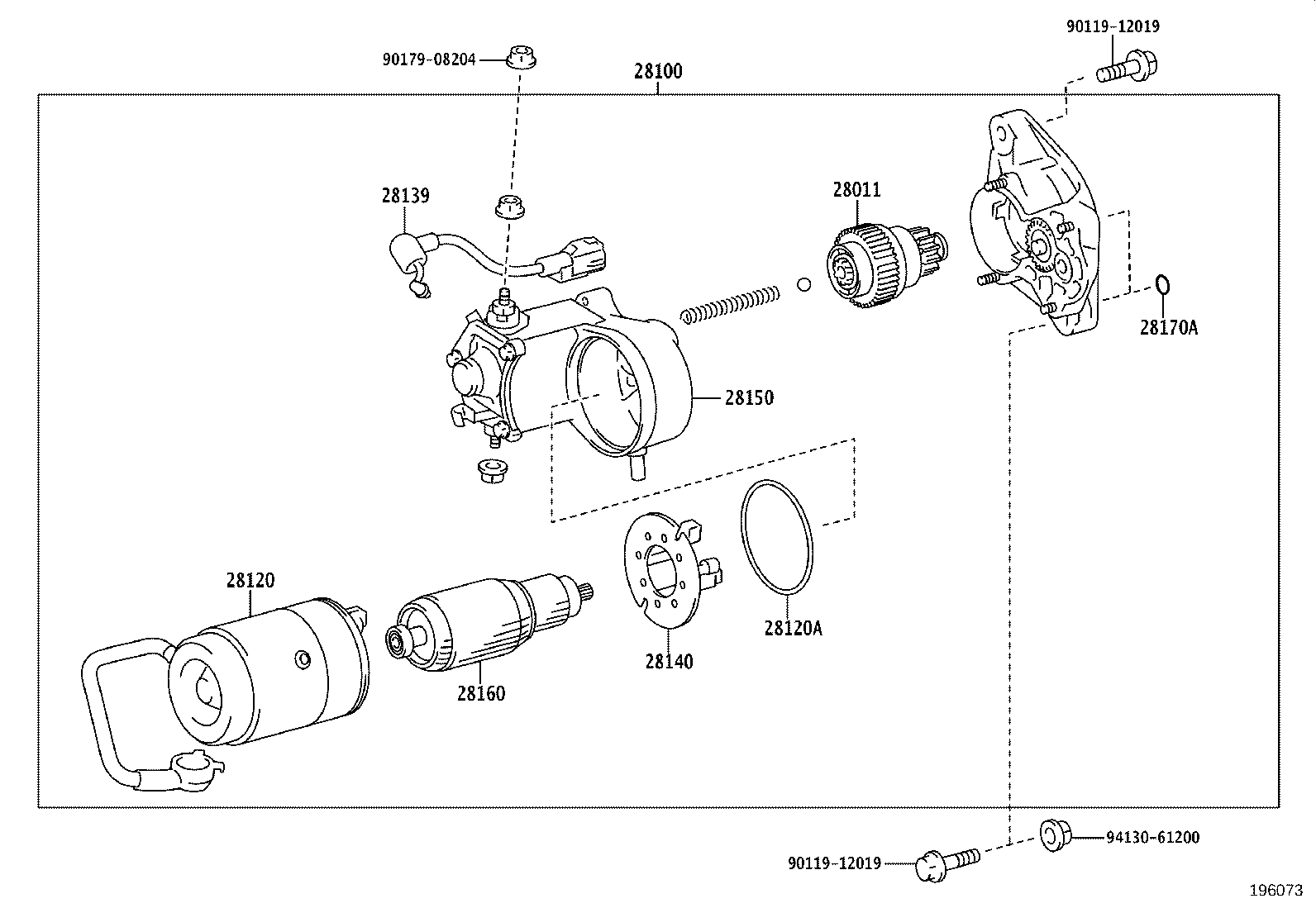

| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28170A | Ring, O(FOR STARTER COVER) |
| 28226B | Starter Kit, Repair Service |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
