Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

25 part groups · 3 illustrations

Illustrations

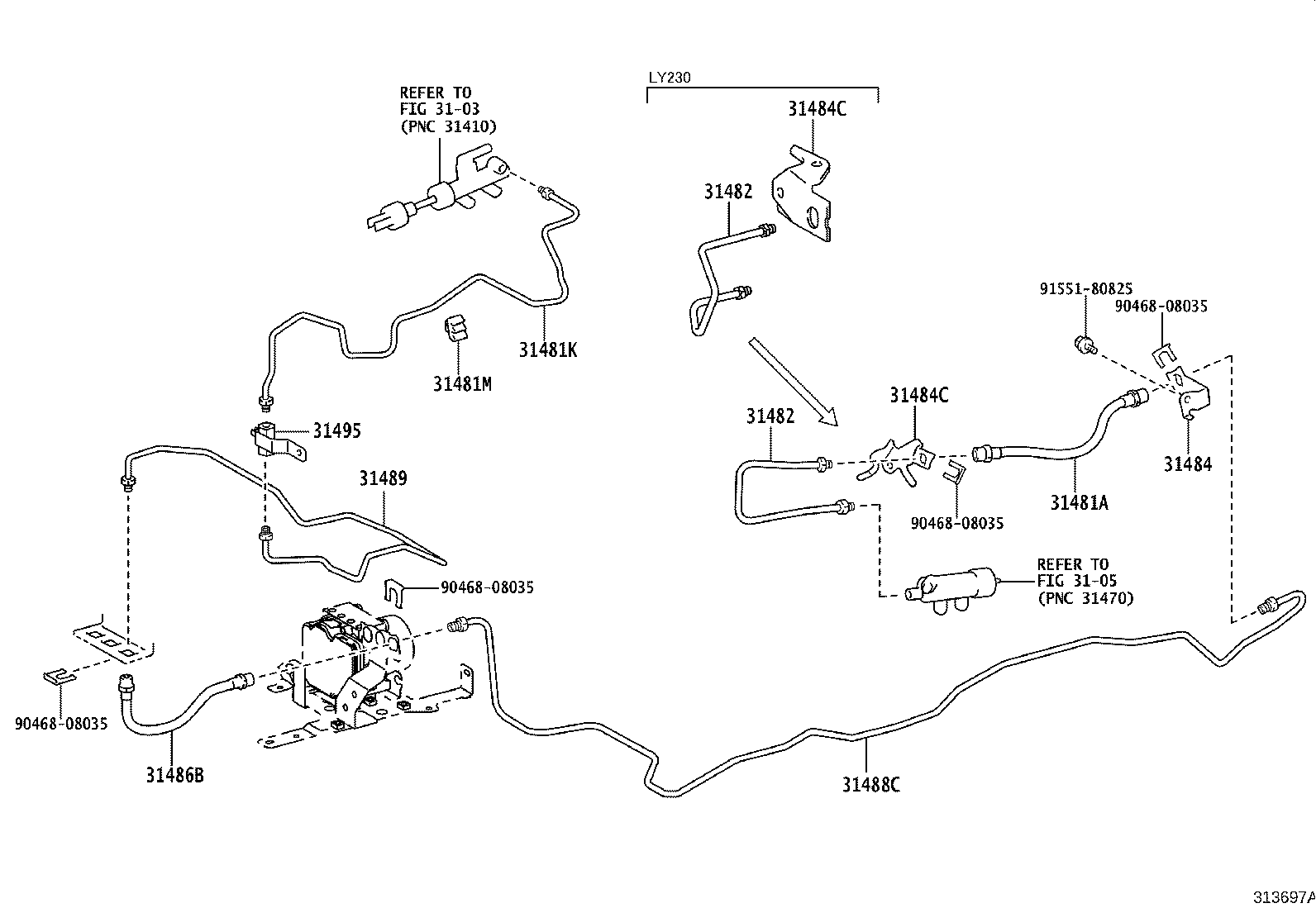

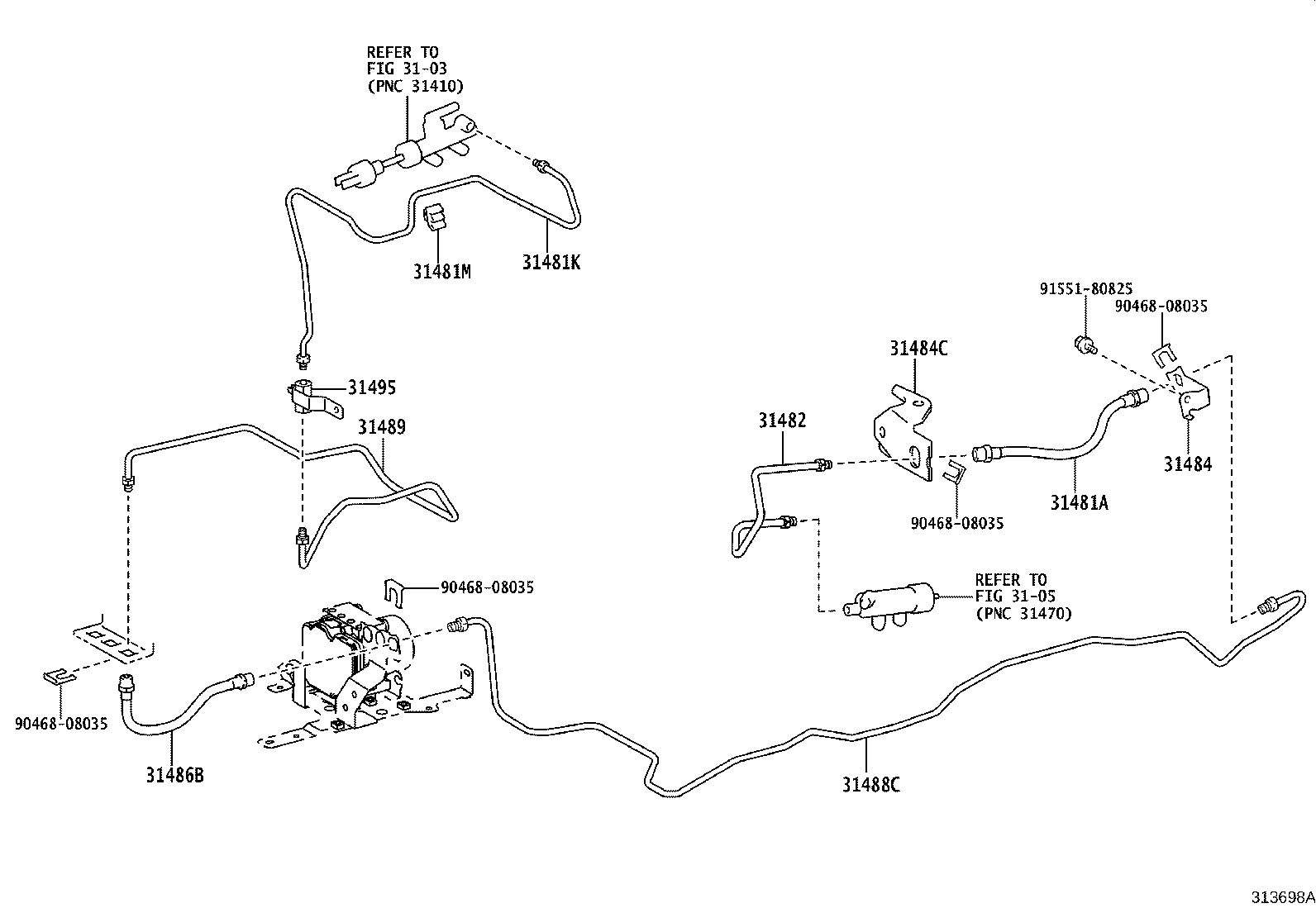

Figure 313695A 313695A 2021-08 → — Figure 313697A 313697A 2021-08 → — Figure 313698A 313698A 2022-02 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31305 Bracket Sub-assy, Clutch Pedal
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31353 Holder, Clutch Pedal Spring
31358 Cap, Over Center Spring
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481A Hose, Clutch, NO.1
31481K Tube, Master Cylinder TO Tube Connector
31481M Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31484 Bracket, Flexible Hose(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31486B Hose, Master Cylinder TO Release Cylinder
31488C Tube, Flexible Hose TO Flexible Hose
31489 Tube, Tube Connector TO Flexible Hose
31495 Way, Clutch Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
