Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

13 part groups · 2 illustrations

Illustrations

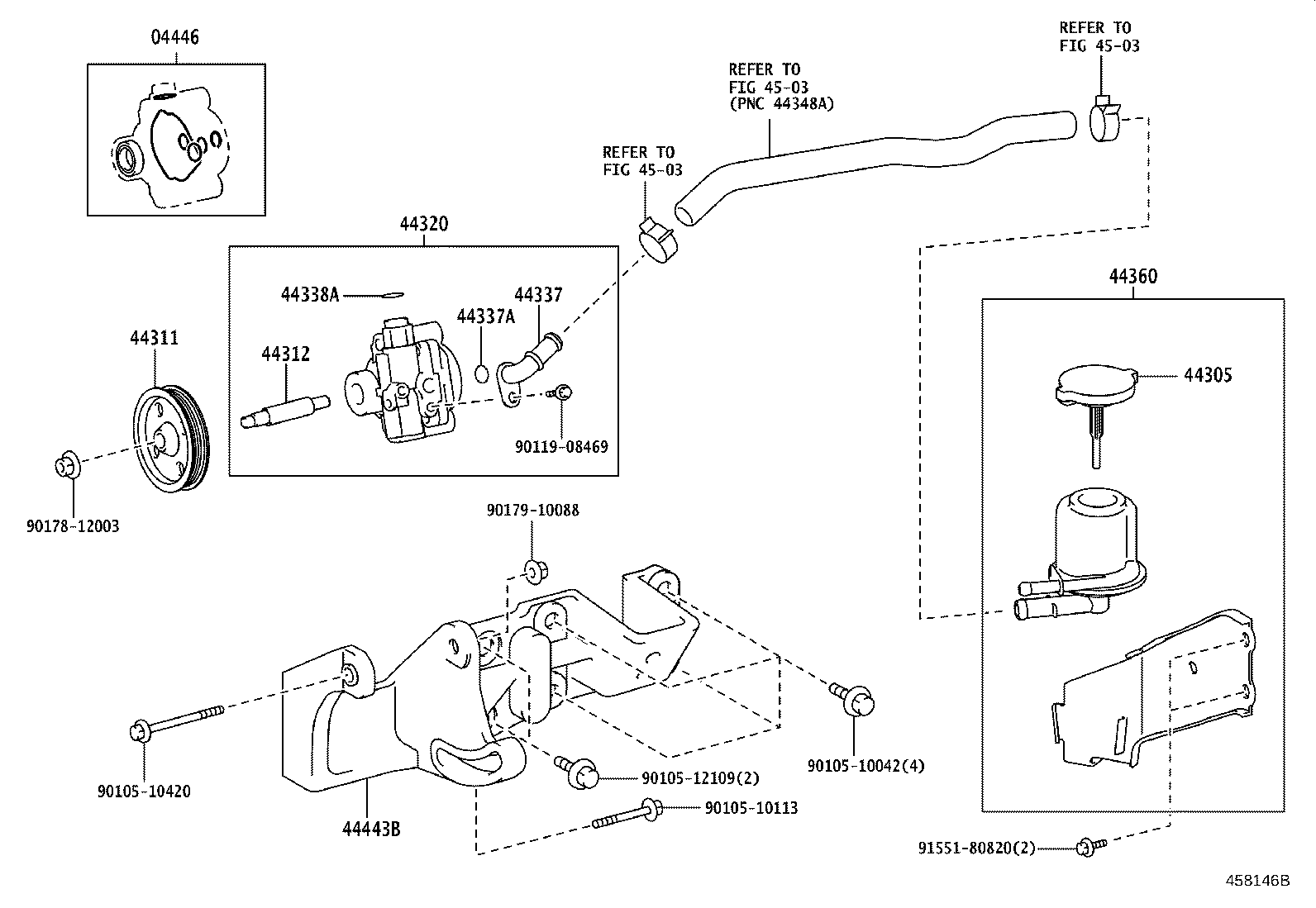

Figure 458144C 458144C 2021-08 → — Figure 458146B 458146B 2022-02 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44311 Pulley, Vane Pump
44312 Shaft, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
44443B Bracket, Vane Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
