Parking Brake & Cable

26 part groups · 3 illustrations

Illustrations

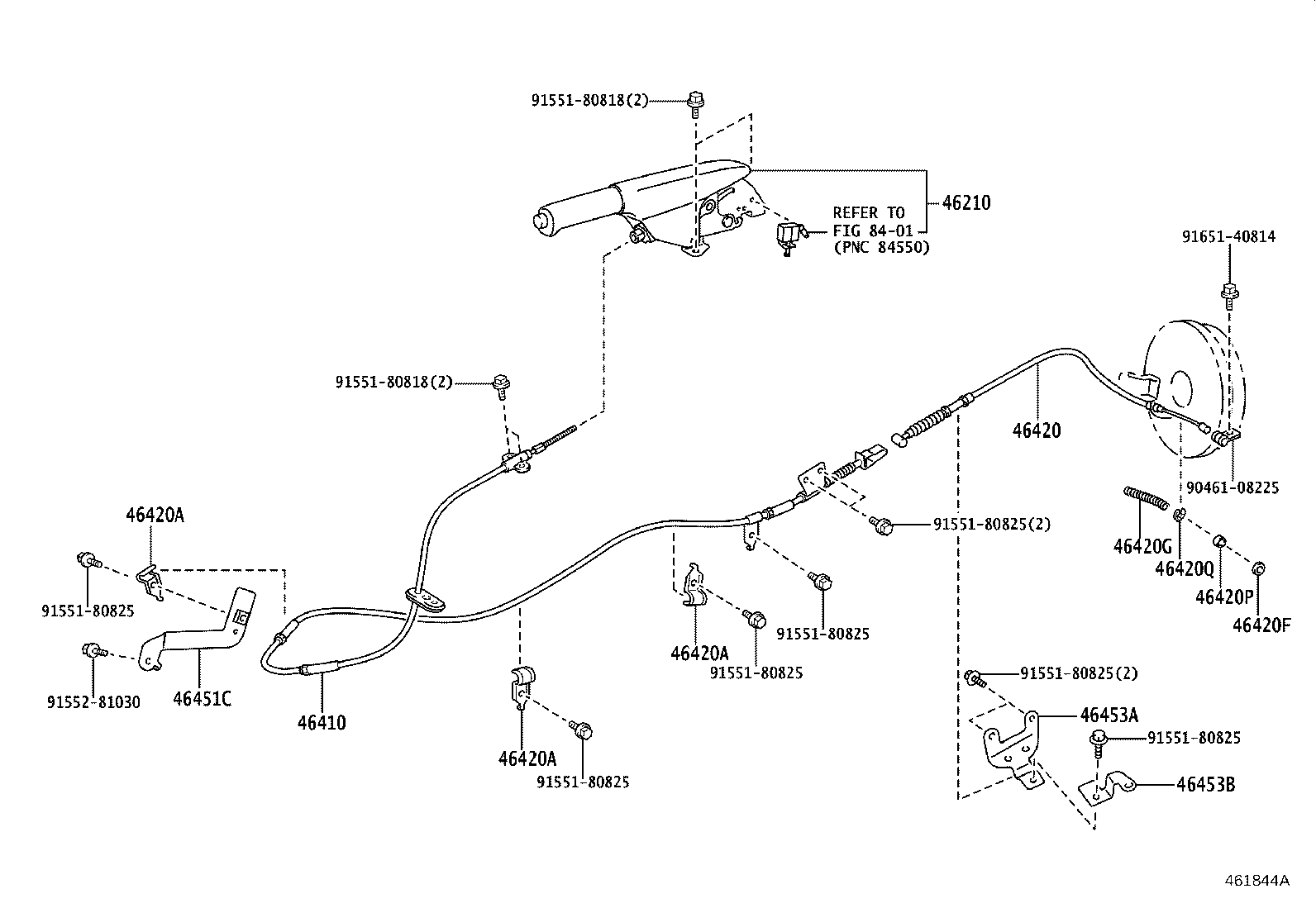

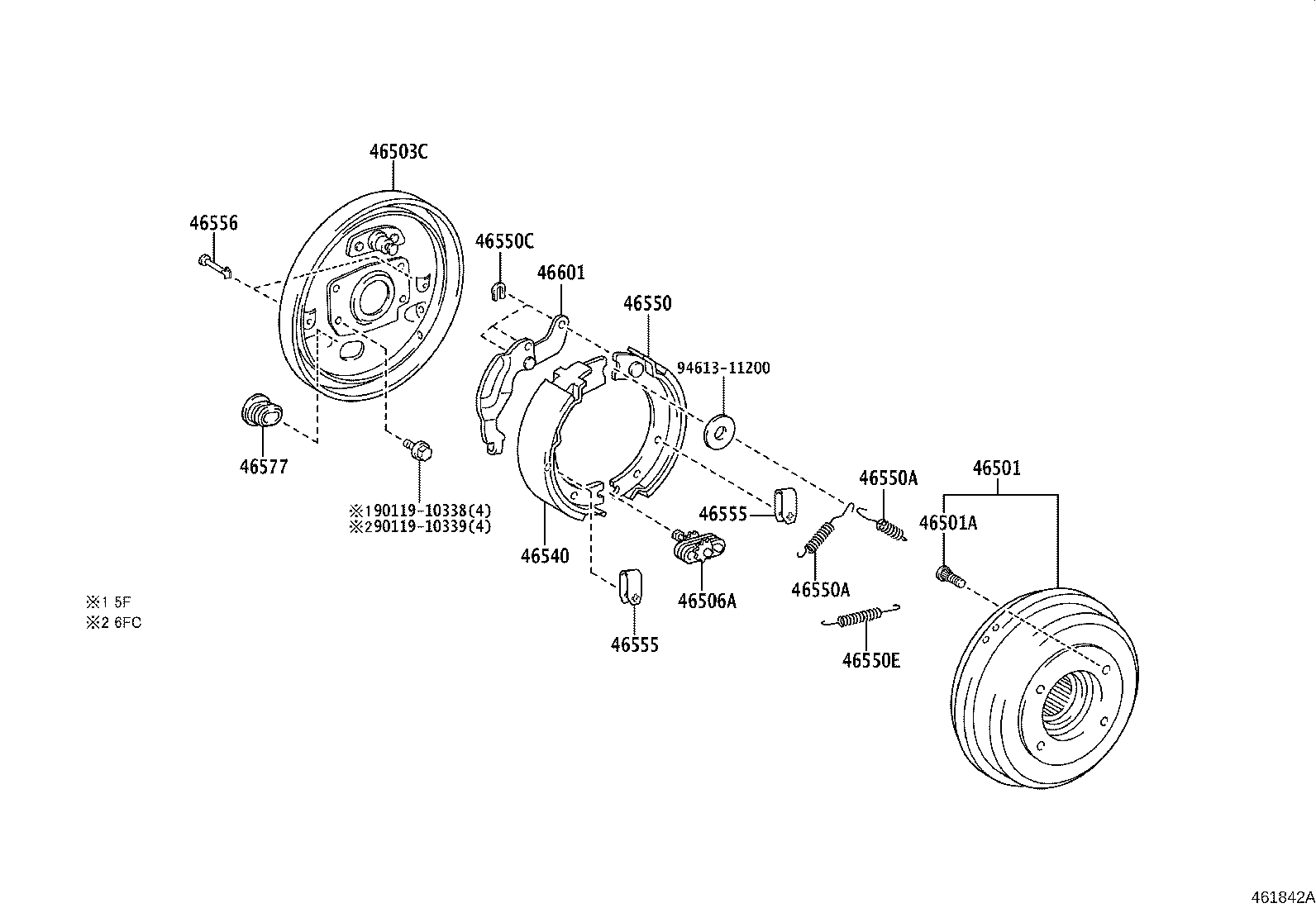

Figure 461841A 461841A 2021-08 → — Figure 461844A 461844A 2022-02 → — Figure 461842A 461842A 2021-08 → —

Part groups

PNCDescription
33577E Grommet, Shift Cable
46210 Lever Assy, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420F Seal, Dust(FOR PARKING BRAKE CABLE)
46420G Spring(FOR PARKING CABLE INNER WIRE SET)
46420P Spacer, Parking Brake
46420Q Ring, E(FOR PARKING BRAKE CABLE)
46451C Bracket, Parking Brake Cable Support, NO.1
46452 Bracket, Parking Brake Cable Support, NO.2
46453A Bracket, Cable Support, NO.3
46453B Bracket, Cable Support, NO.3
46501 Drum Sub-assy, Parking Brake
46501A Bolt, Serration(FOR PARKING BRAKE DRUM)
46503C Plate Sub-assy, Parking Brake
46506A Adjuster Sub-assy, Parking Brake Shoe
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46555 Spring, Brake Shoe Hold Down
46556 Pin, Shoe Hold Down Spring
46577 Cover, Adjusting Cam Hole
46601 Lever Sub-assy, Parking Brake Shoe
