Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

10 part groups · 2 illustrations

Illustrations

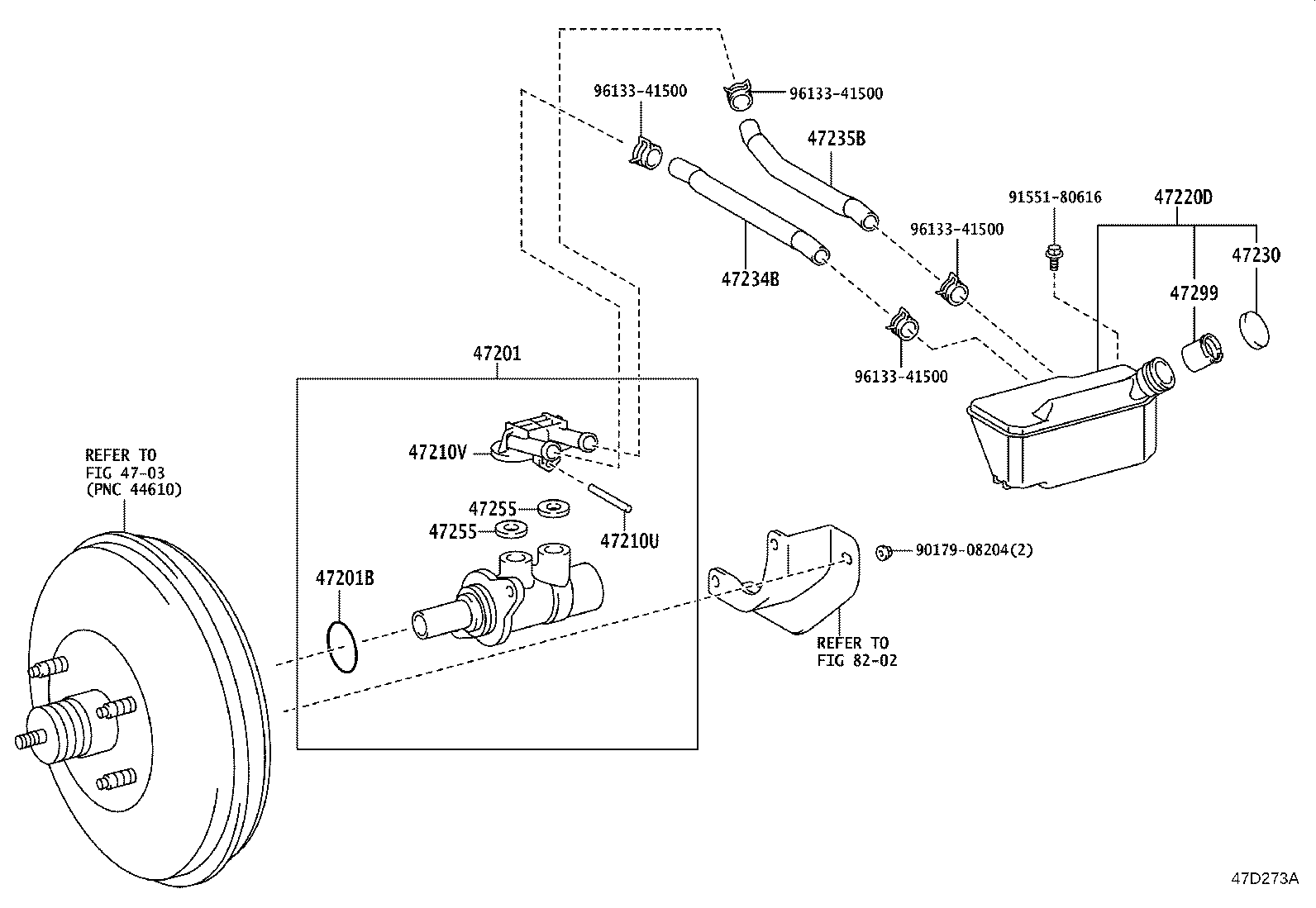

Figure 47D272A 47D272A 2021-08 → — Figure 47D273A 47D273A 2022-02 → —

Part groups

PNCDescription
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47210V Union(FOR BRAKE MASTER CYLINDER)
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
