Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02
Brake Tube & Clamp
50 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |

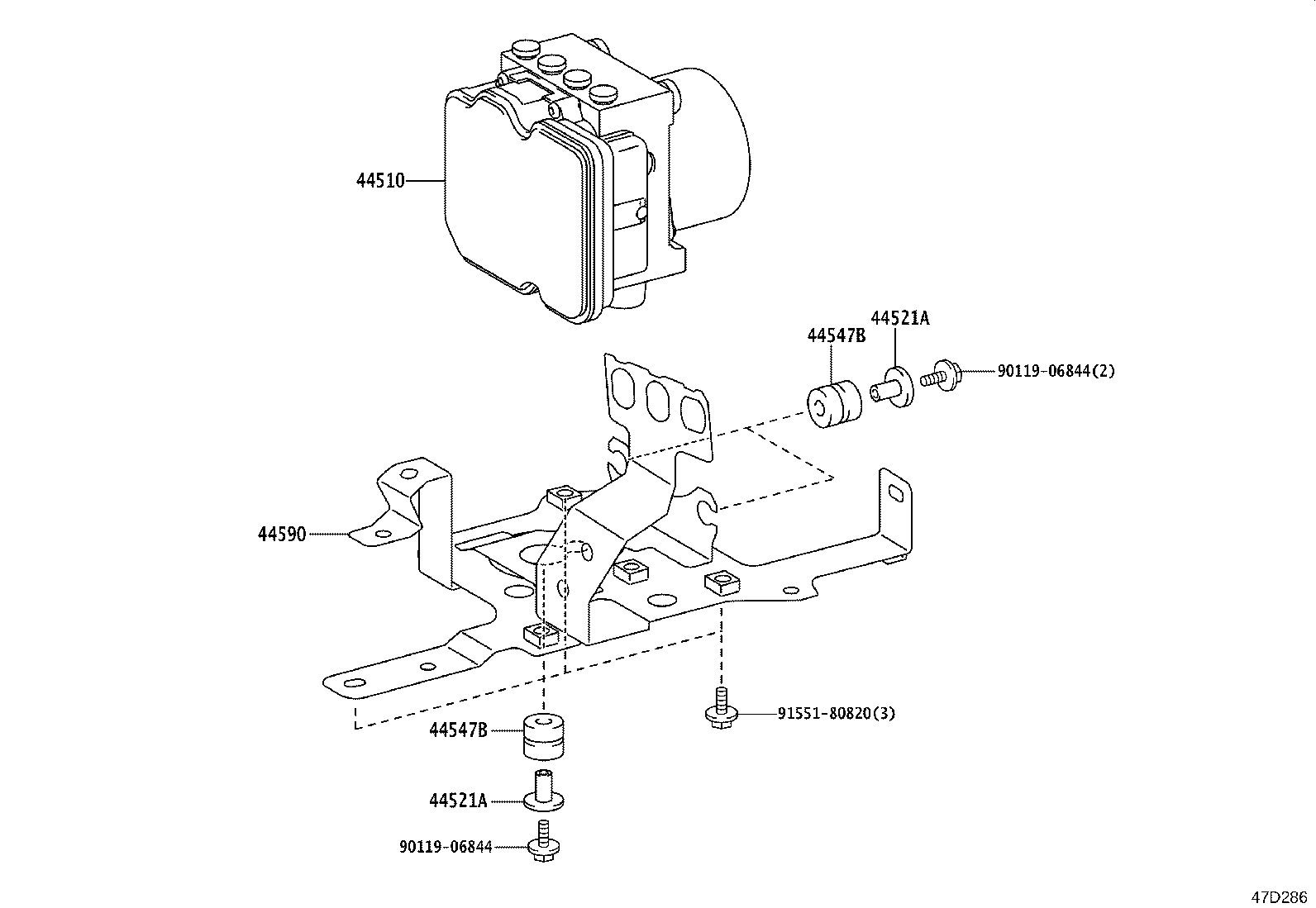

| 44510 | Actuator Assy, Brake |
| 44521A | Collar, Brake Actuator Case, NO.1 |
| 44547B | Cushion, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |

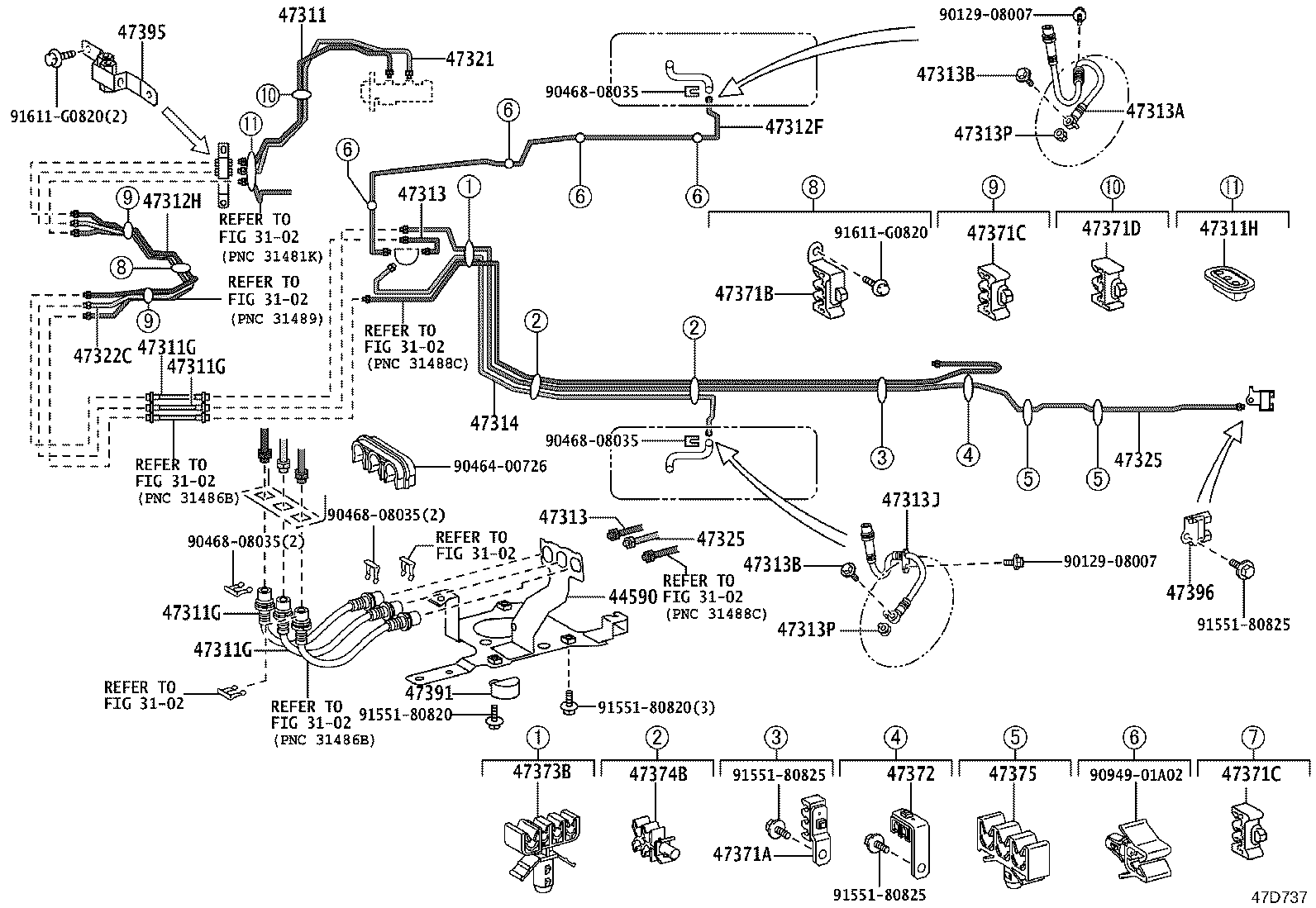

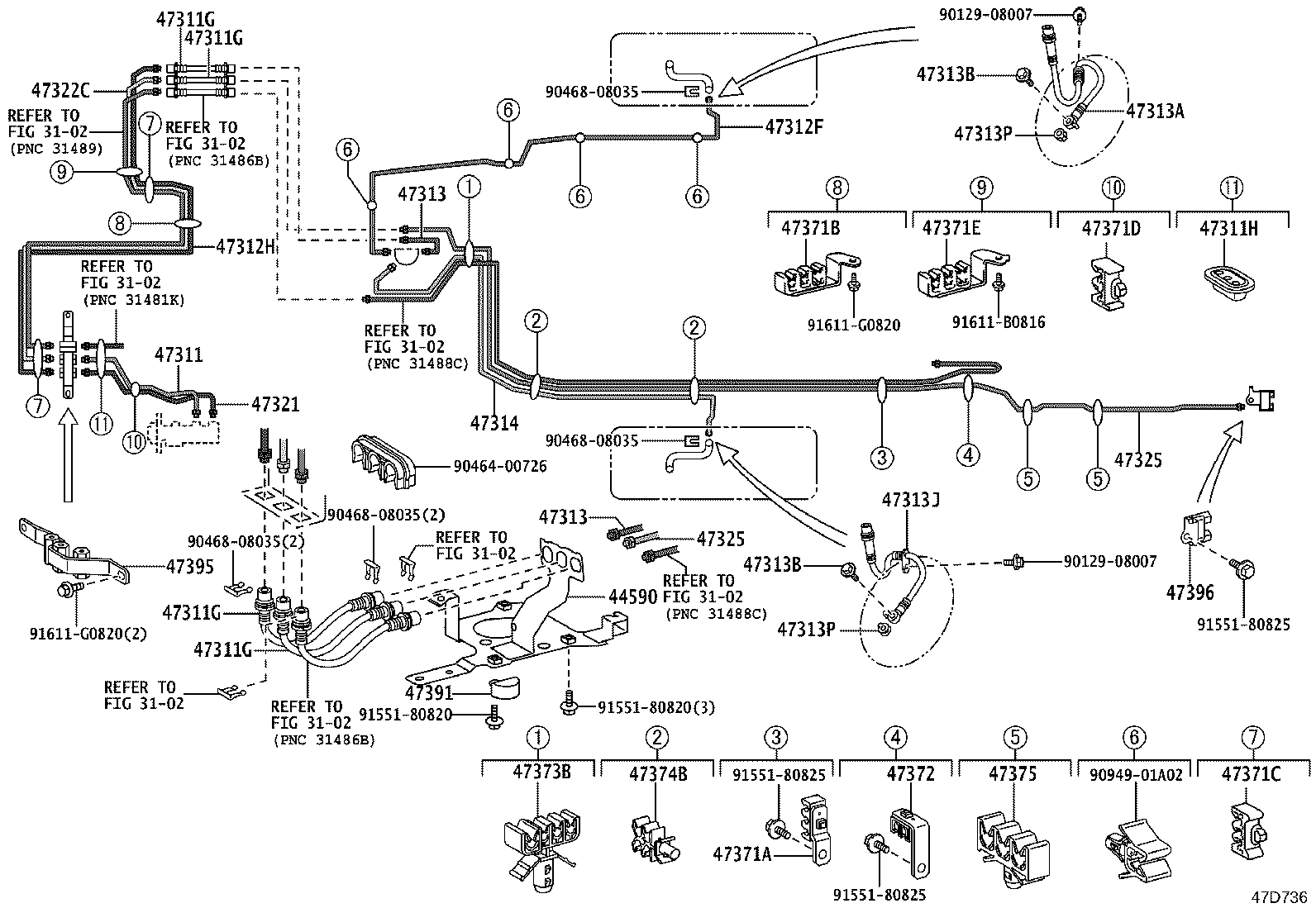

| 47311 | Tube, Front Brake, NO.1 |
| 47311F | Tube, Front Brake, Frame NO.1 |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47311H | Grommet(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312F | Tube, Front Brake, Frame, NO.2 |
| 47312H | Tube, Front Brake, NO.3 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |

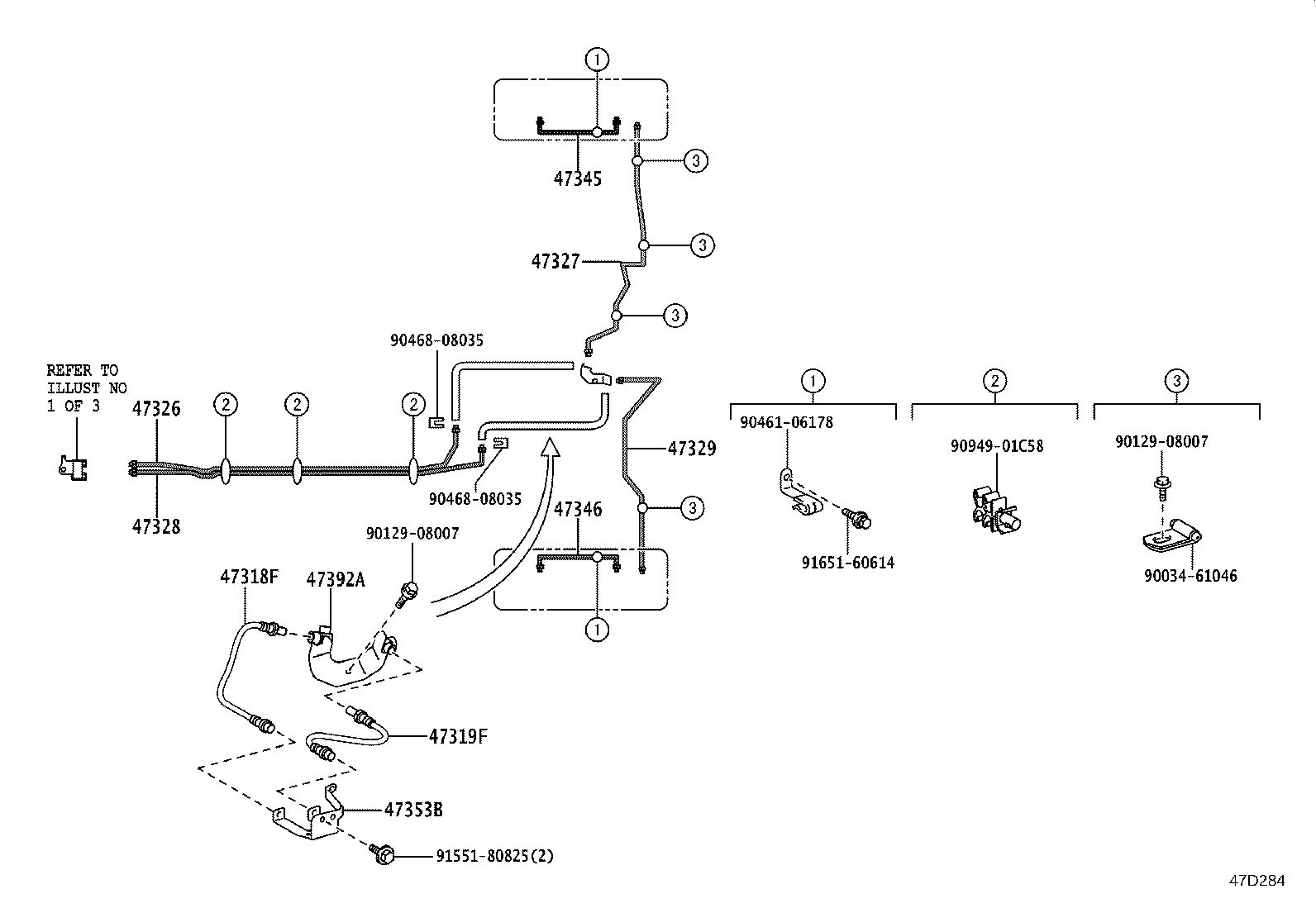

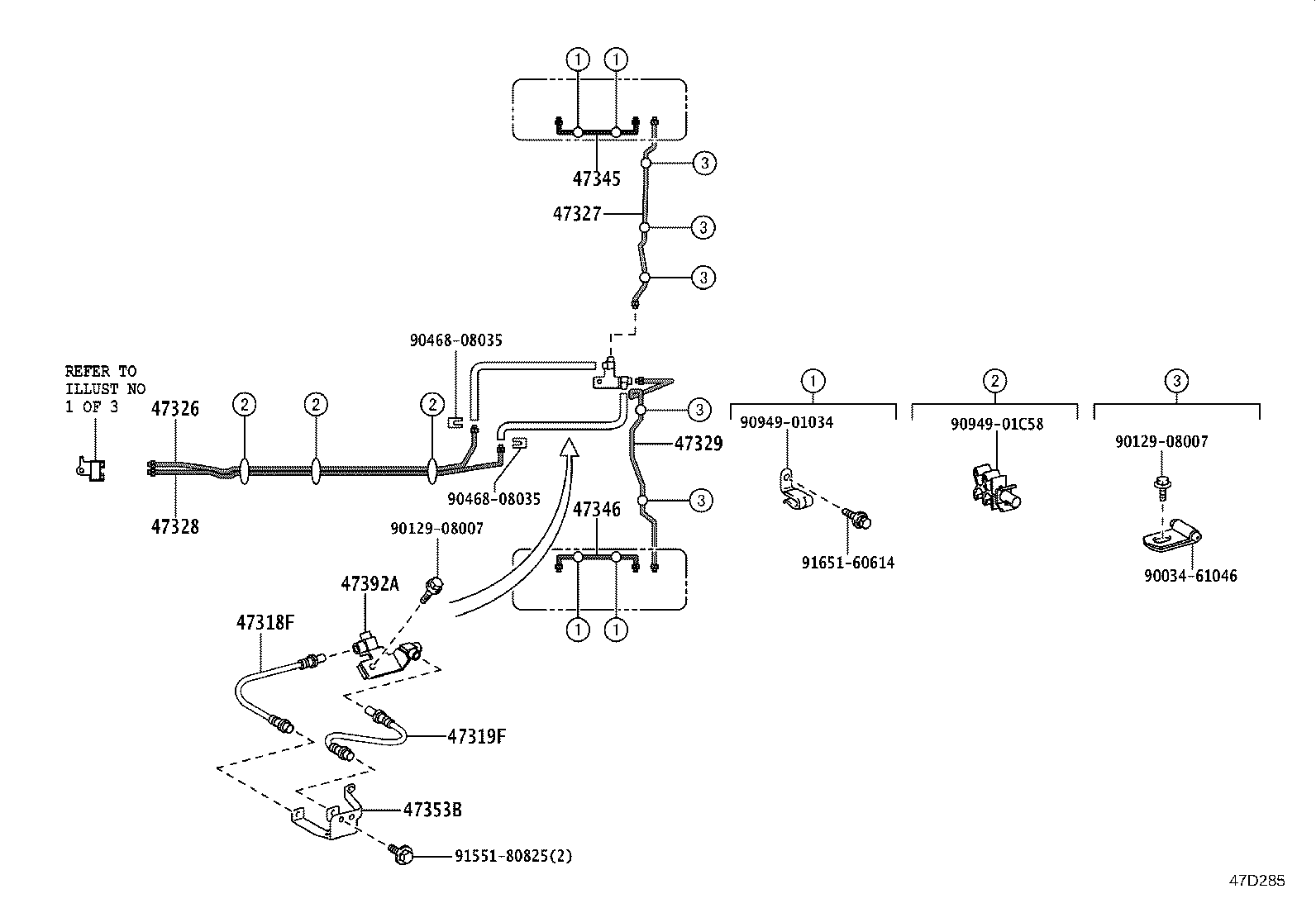

| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321G | Tube, Rear Brake, Frame NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322C | Tube, Rear Brake, NO.3 |

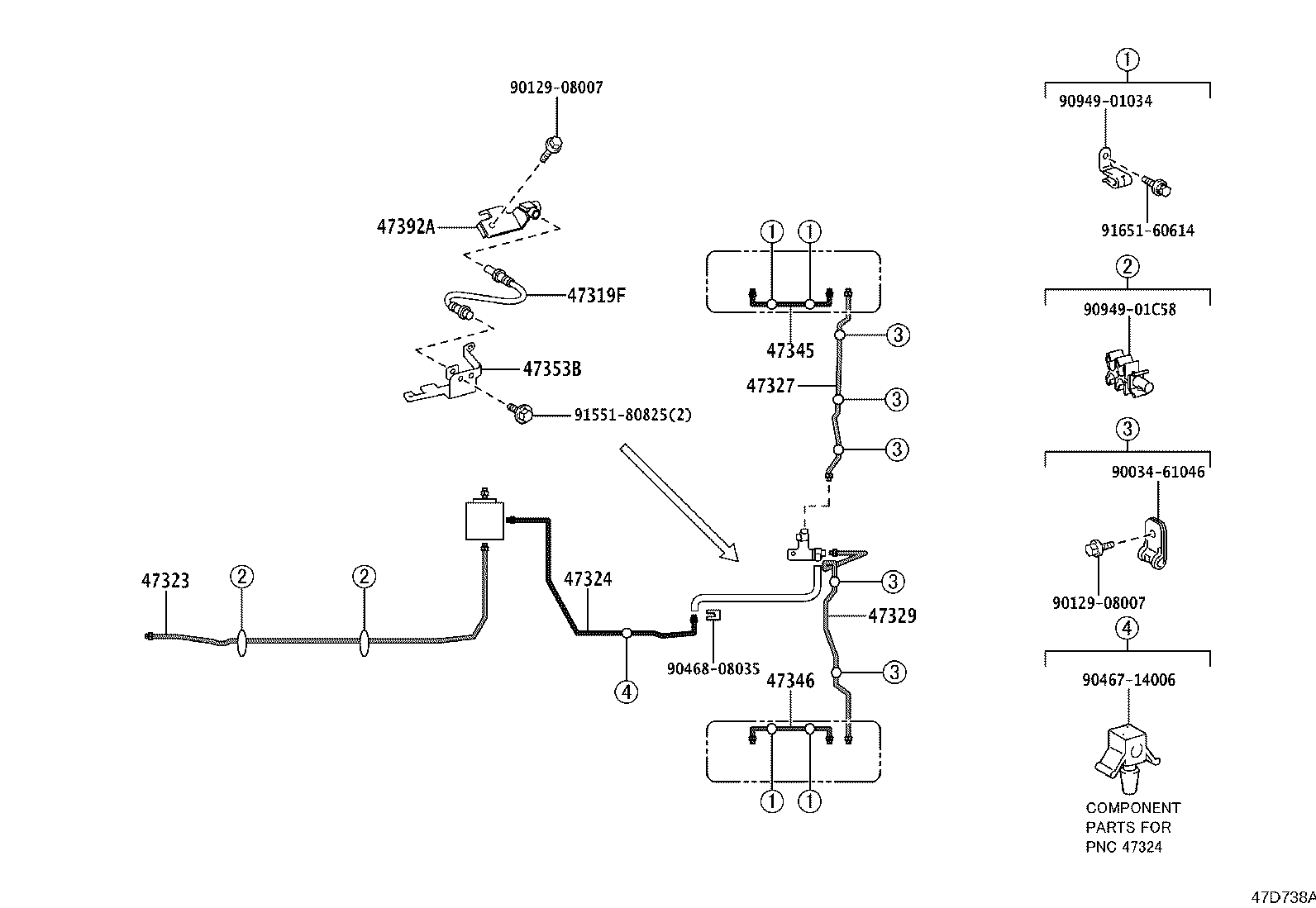

| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47328 | Tube, Rear Brake, NO.8 |
| 47329 | Tube, Rear Brake, NO.9 |
| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47391 | Way, Brake Tube |
| 47392A | Way, Brake Tube, NO.2 |
| 47395 | Way, Brake Tube, NO.3 |
| 47396 | Way, Brake Tube, NO.4 |

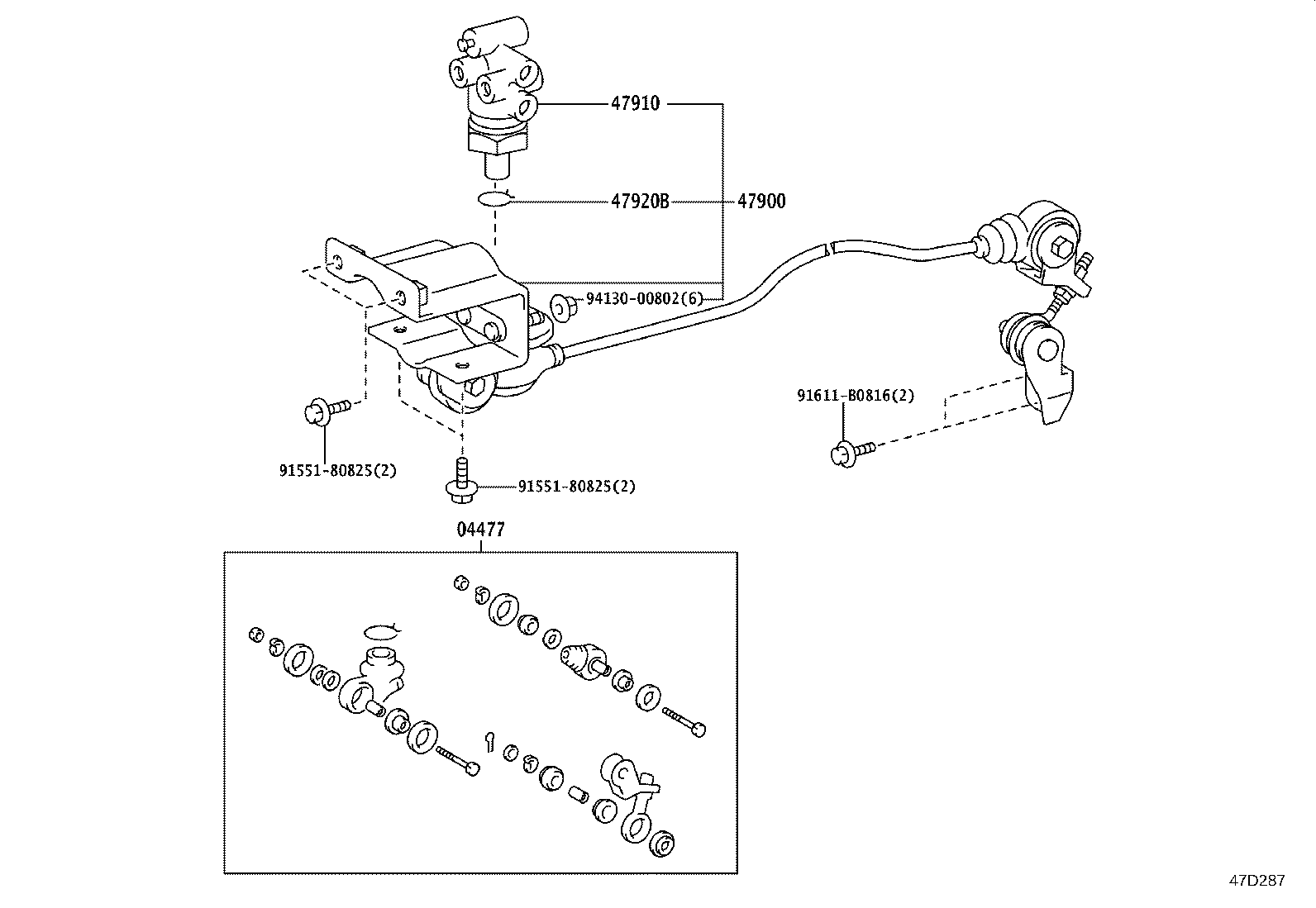

| 47900 | Valve Assy, Load Sensing W/Spring |
| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
