Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02

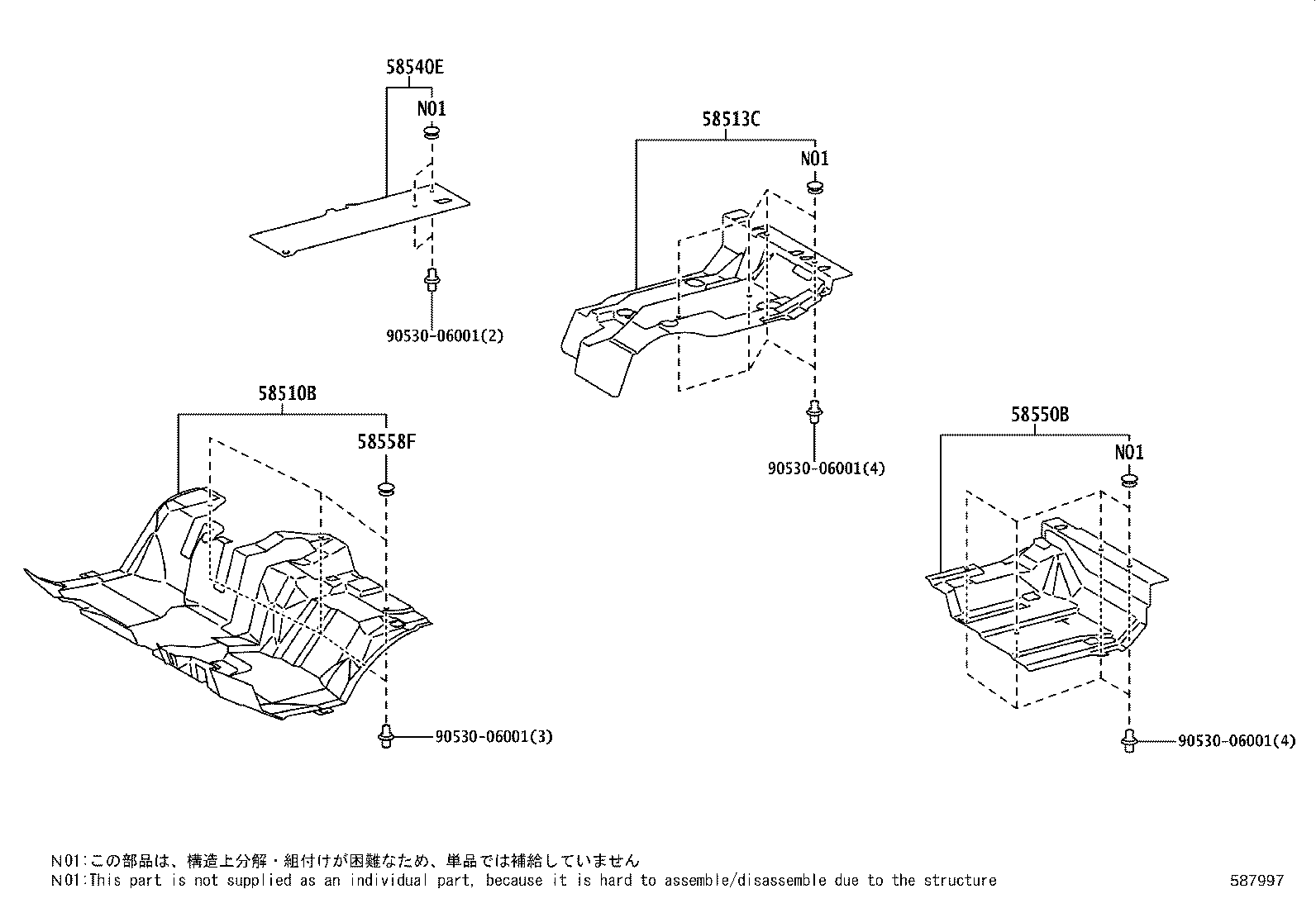

Floor Mat & Silencer Pad
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510B | Mat, Front Floor, Front |
| 58513C | Mat, Floor, Front Center |
| 58514B | Mat, Floor, Rear RH |
| 58515B | Mat, Floor, Rear LH |
| 58521D | Mat, Engine Service Hole Cover |
| 58540E | Mat Assy, Floor, Rear RH |
| 58550B | Mat Assy, Floor, Rear LH |
| 58558F | Fastener, Pile, Upr |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
