Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

11 part groups · 2 illustrations

Illustrations

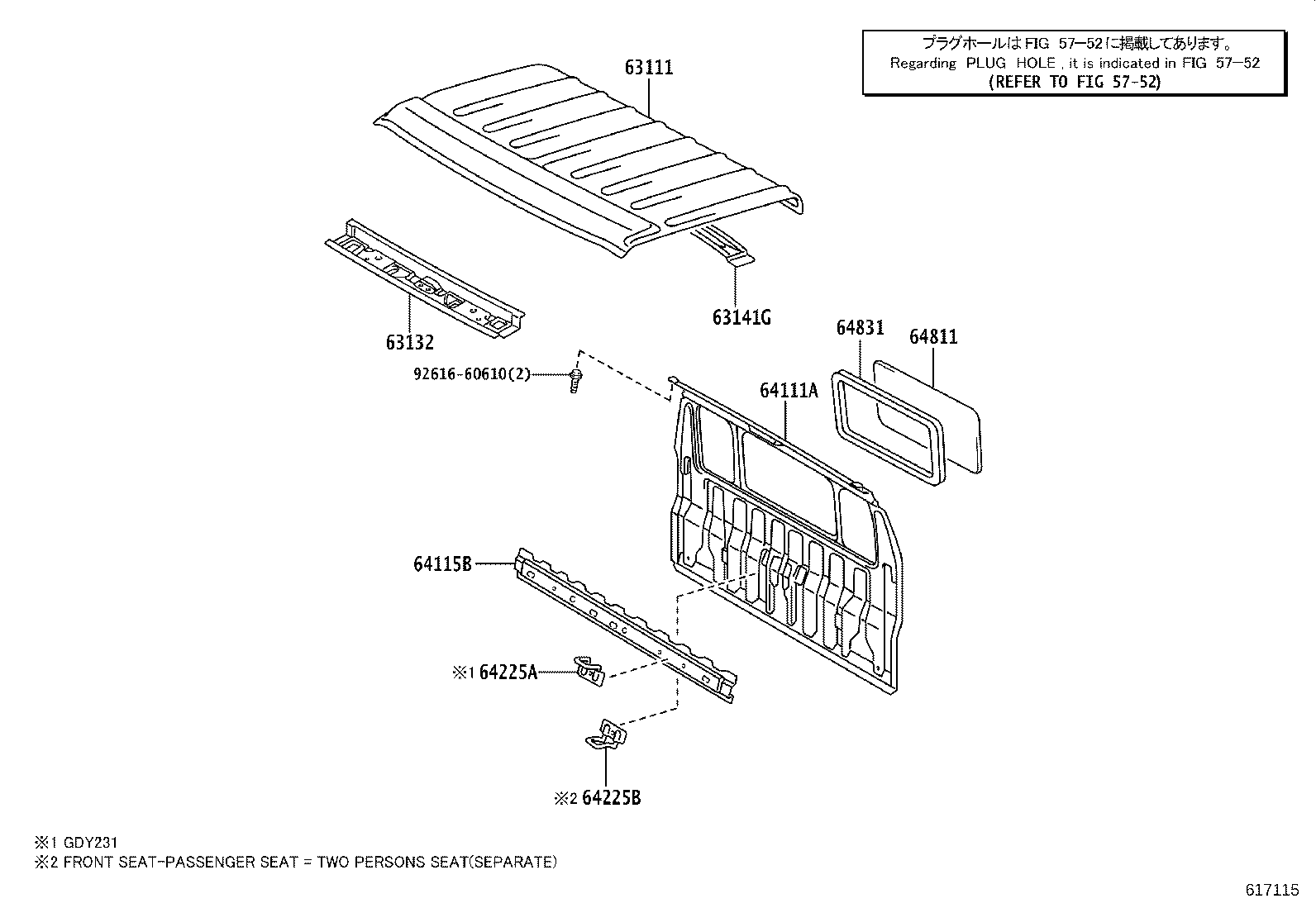

Figure 617114 617114 2021-08 → — Figure 617115 617115 2021-08 → —

Part groups

PNCDescription
58930B Band Assy, Engine Service Hole Cover Support
58935A Bracket, Engine Service Hole Cover Support Band
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63141G Reinforcement, Roof Panel, NO.1
64111A Panel, Back
64115B Reinforcement, Back Panel
64225A Hanger, Rear Seat Cushion Support
64225B Hanger, Rear Seat Cushion Support
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
