Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02

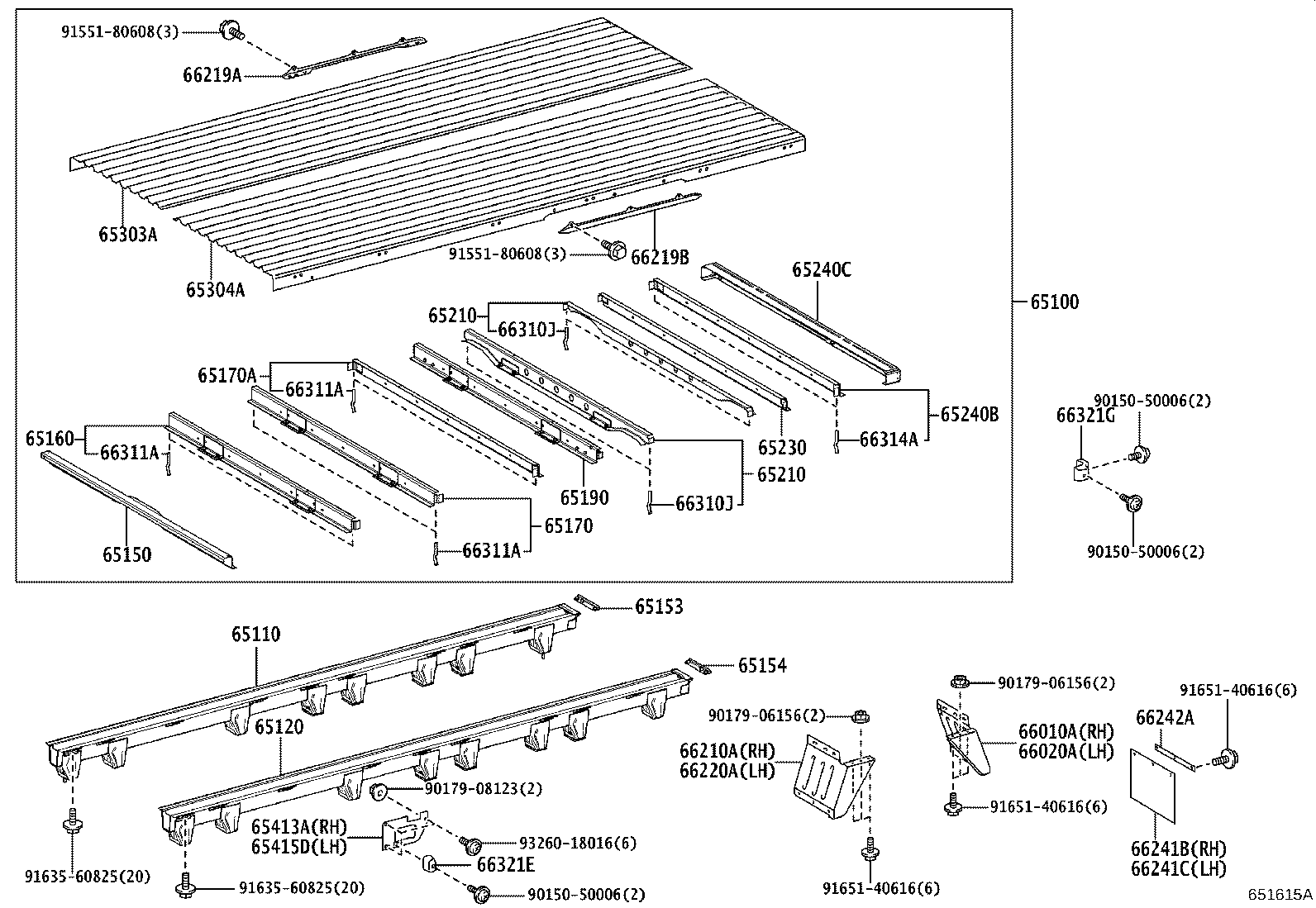

Rear Body Floor & Fender
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65023 | Bracket Sub-assy, Rear Cross Sill Mounting, RH |
| 65024 | Bracket Sub-assy, Rear Cross Sill Mounting, LH |
| 65100 | Floor Assy, Rear Body |
| 65110 | Sill Assy, Main, RH |
| 65120 | Sill Assy, Main, LH |
| 65150 | Sill Assy, Cross, NO.1 |
| 65153 | Bracket, Mounting, NO.1 RH |
| 65154 | Bracket, Mounting, NO.1 LH |
| 65160 | Sill Assy, Cross, NO.2 |
| 65170 | Sill Assy, Cross, NO.2 |
| 65170A | Sill Assy, Cross, NO.3 |
| 65190 | Sill Assy, Cross, NO.5 |
| 65210 | Sill Assy, Cross, NO.6 |
| 65230 | Sill Assy, Cross, NO.8 |
| 65240B | Sill Assy, Cross, NO.9 |
| 65240C | Sill Assy, Cross, NO.9 |
| 65303A | Frame Sub-assy, Floor Side, RH |
| 65304A | Frame Sub-assy, Floor Side, LH |
| 65337 | Plate, Floor Side Frame, RH |
| 65413A | Bracket, Guard Frame, RH |
| 65415D | Bracket, Guard Frame, LH |
| 66010A | Fender Assy, Rear NO.2 RH |
| 66016 | Gusset Sub-assy, Gate Hinge, RH |
| 66017 | Gusset Sub-assy, Gate Hinge, LH |
| 66020A | Fender Assy, Rear NO.2 LH |
| 66210A | Fender Assy, Rear NO.1 RH |
| 66219A | Extension, Rear Fender |
| 66219B | Extension, Rear Fender |
| 66220A | Fender Assy, Rear NO.1 LH |
| 66235 | Stay, Rear Fender, NO.1 |
| 66236A | Stay, Rear Fender, NO.2 |
| 66241B | Baffle, Rubber |
| 66241C | Buffle, Rubber |
| 66242A | Plate, Baffle Rubber |
| 66310J | Hook Assy, Rope |
| 66311A | Hook, Rope, NO.1 |
| 66311H | Hook, Rope |
| 66312F | Hook, Rope, NO.2 |
| 66312H | Hook, Rope |
| 66313A | Hook, Rope, NO.3 |
| 66314A | Hook, Rope, NO.4 |
| 66321E | Bumper, Gate Rubber |
| 66321G | Bumper, Gate Rubber |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
