Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02
Abs & Vsc
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 42141A | Attachment, Skid Control Wire, NO.1 |
| 89183A | Sensor, Yawrate |
| 89437F | Cover, Sensor |

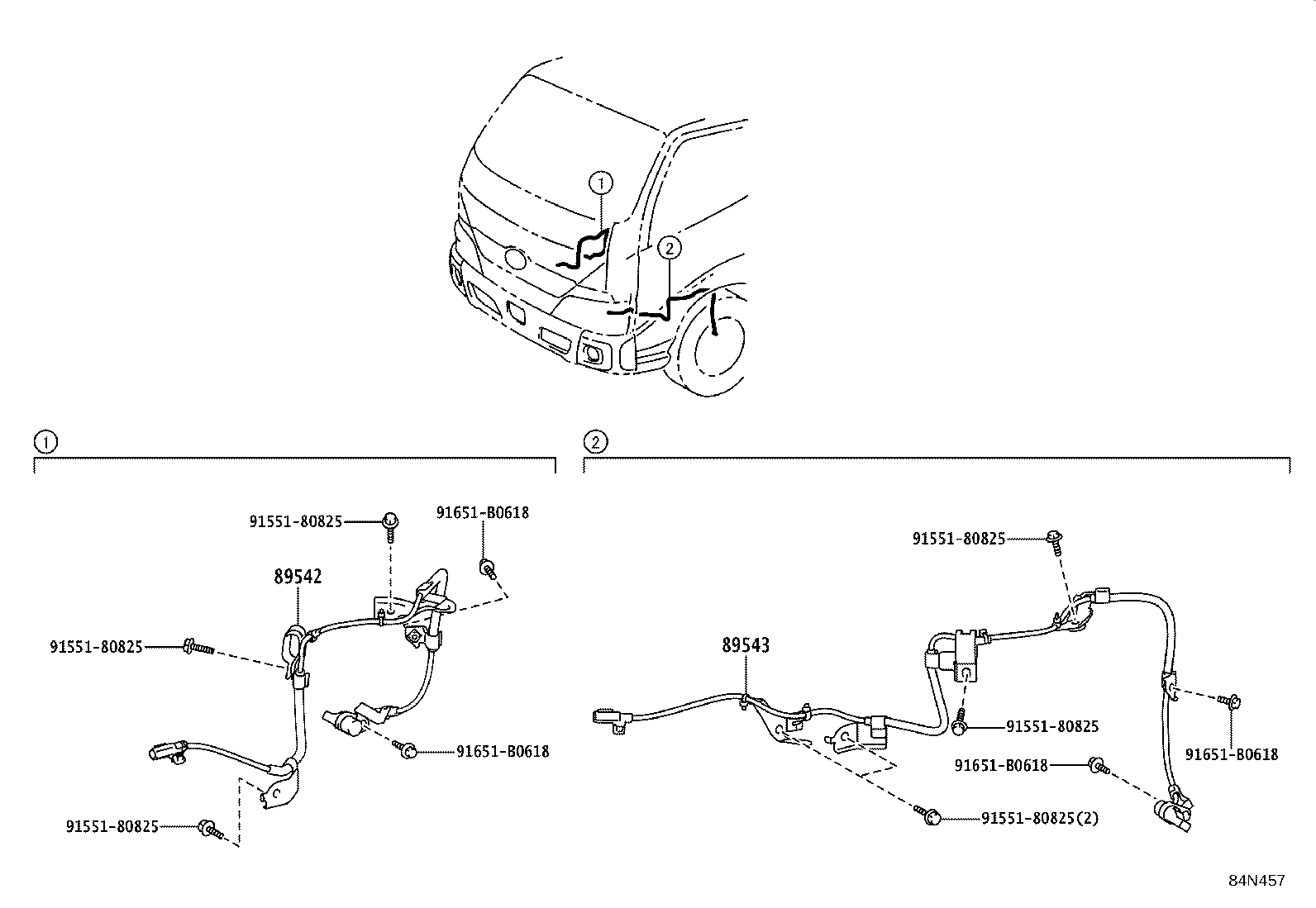

| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |

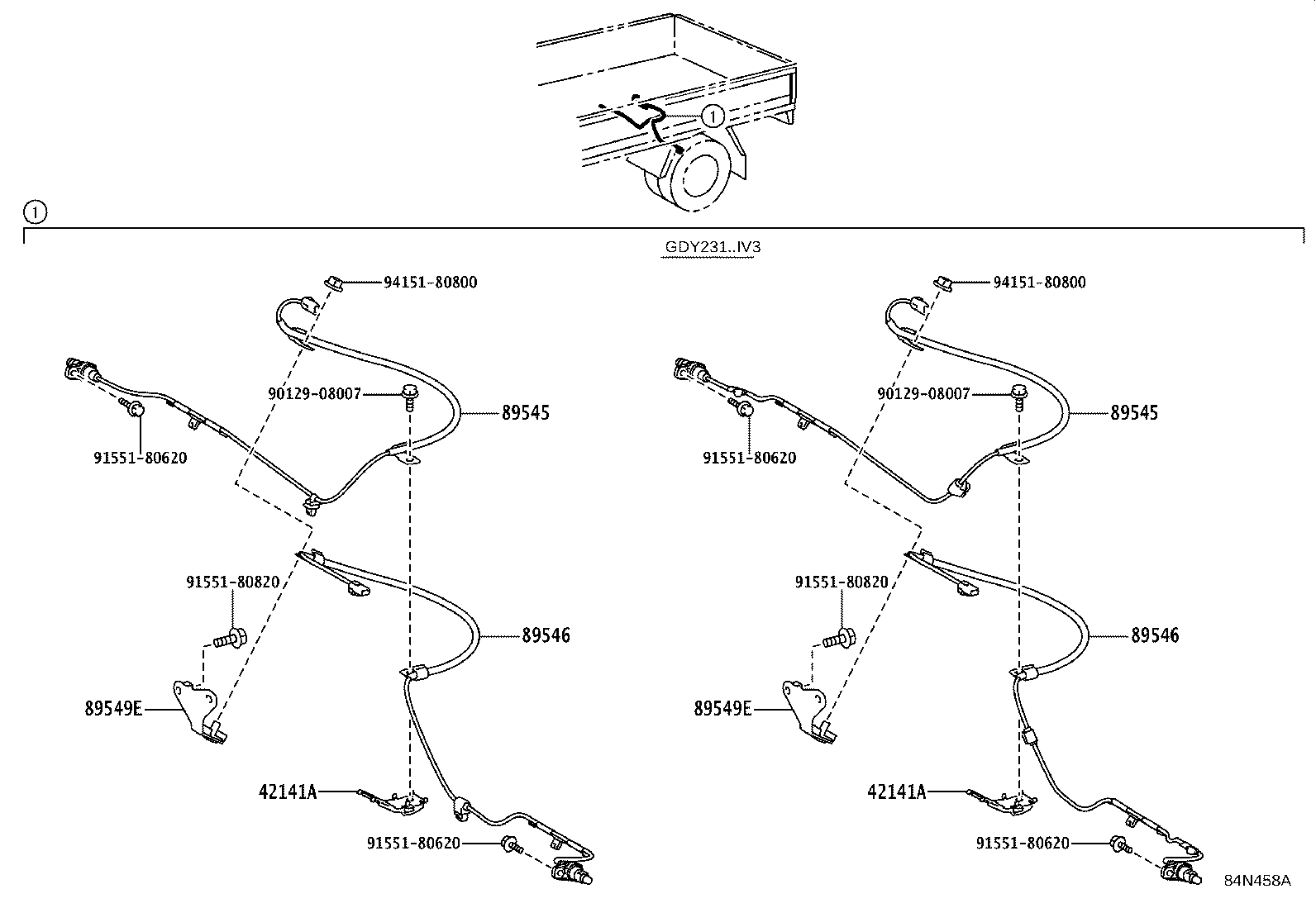

| 89545 | Sensor, Speed, Rear RH |
| 89546 | Sensor, Speed, Rear LH |
| 89549E | Bracket, Speed Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
