Toyota Dyna
2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General
Supported model
Data version 2022-02
Mirror
22 part groups · 4 illustrations
Part groups

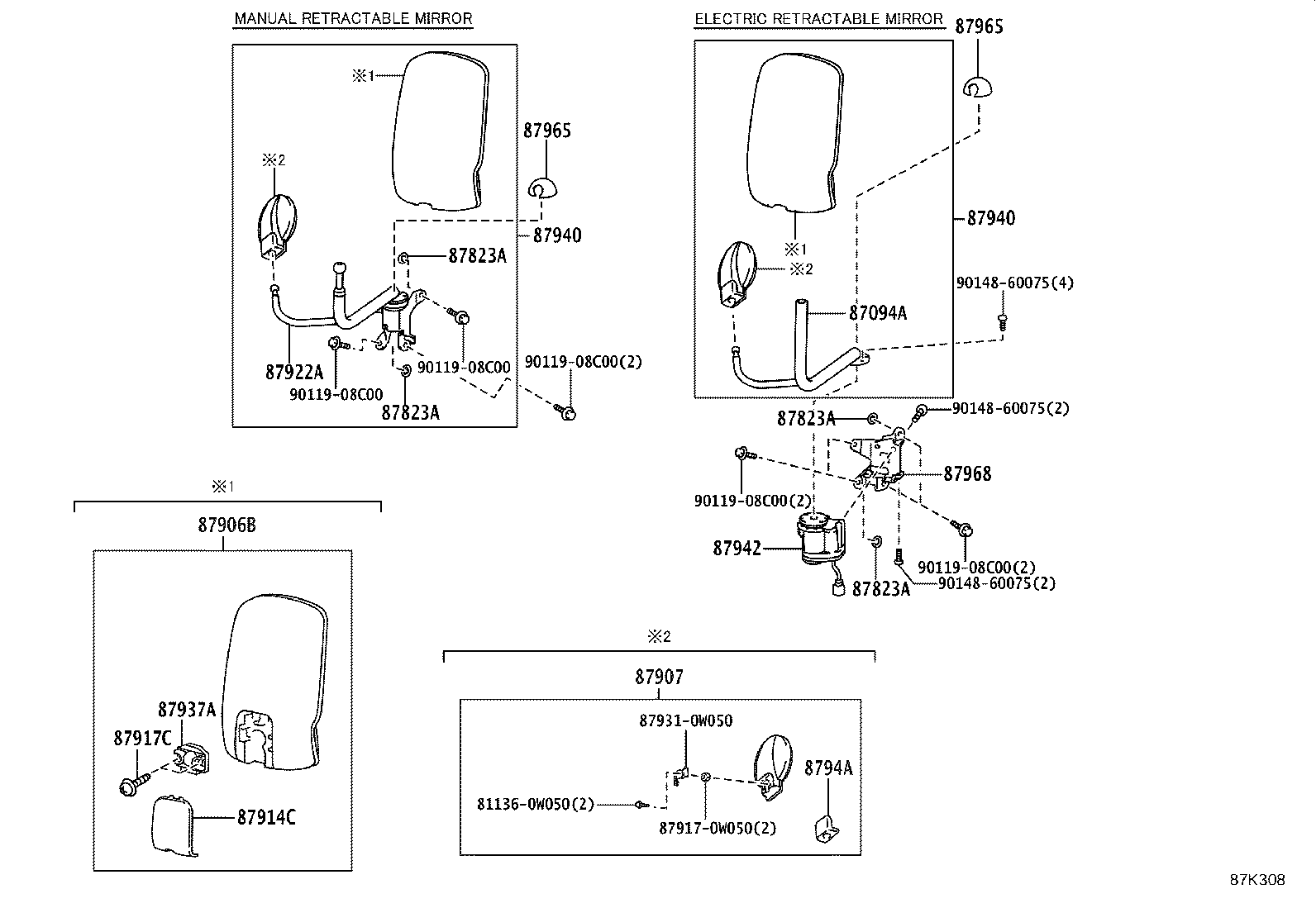

| PNC | Description |
|---|---|
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87819 | Lens, Inner RR View Mirror Room Lamp |
| 87823A | Washer, Outer Rear View Mirror Body Joint |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87914B | Cover, Outer Mirror Knob, RH |
| 87914C | Cover, Outer Mirror Knob, LH |
| 87917C | Screw, Outer Mirror |
| 87921 | Arm, Outer Rear View Mirror, RH |
| 87922A | Arm, Outer Rear View Mirror, LH |
| 87937 | Holder, Mirror, RH |
| 87937A | Holder, Mirror, LH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87942 | Motor, Mirror, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87965 | Grommet, Outer Mirror |
| 87967 | Holder, Mirror, Outer RH |
| 87968 | Holder, Mirror, Outer LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
