Toyota Dyna

2021-08 → present · chassis GDY231,LY230 · catalogue 731280 · General

Supported model Data version 2022-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

15 part groups · 2 illustrations

Illustrations

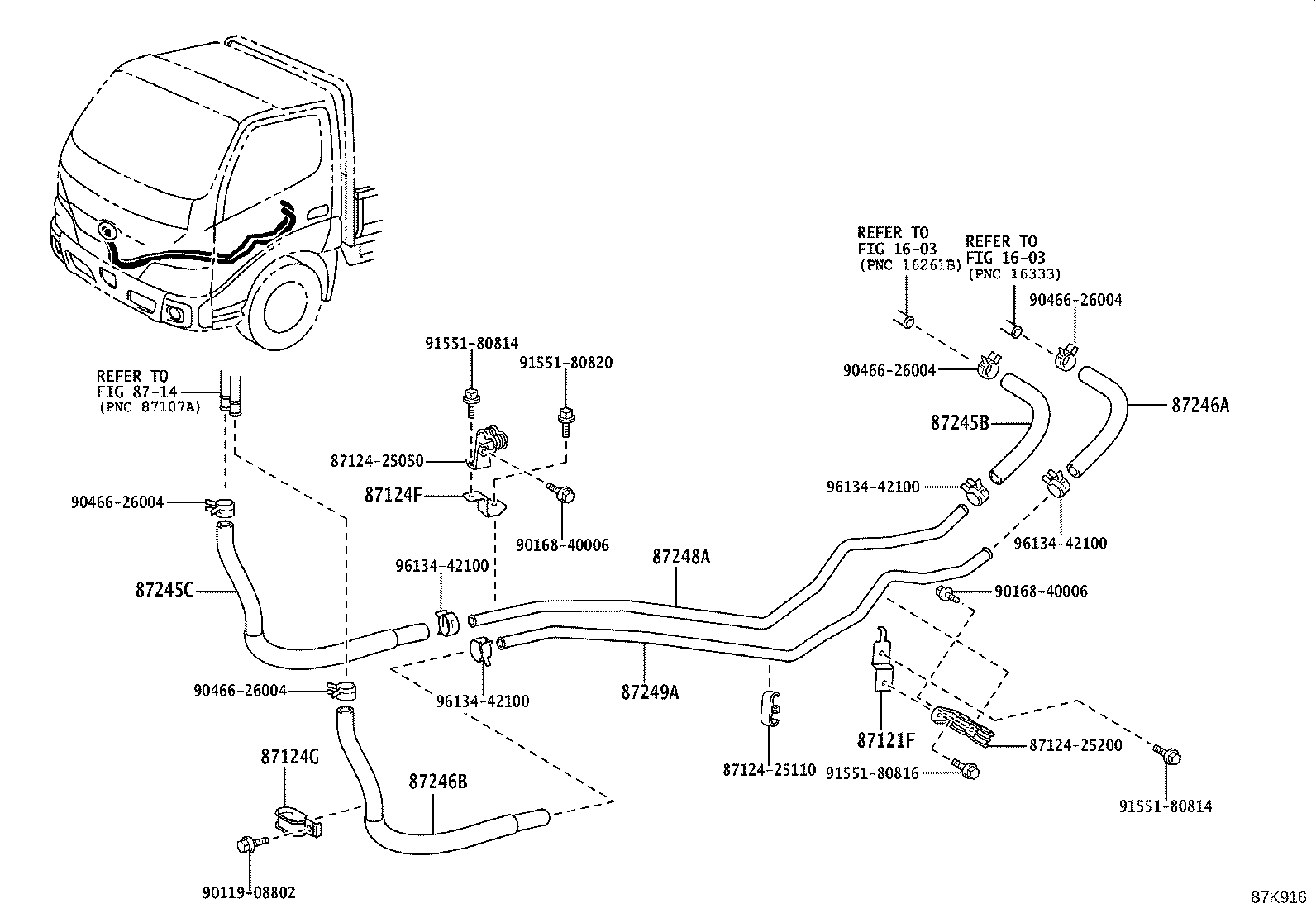

Figure 87K241B 87K241B 2021-08 → — Figure 87K916 87K916 2022-02 → —

Part groups

PNCDescription
87121F Bracket, Heater
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87124L Clamp, Heater Hose, NO.4
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87247M Clip, Hose
87247N Clip, Hose
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
