Toyota DYNA150
1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General
Discontinued model
Data version 1995-10

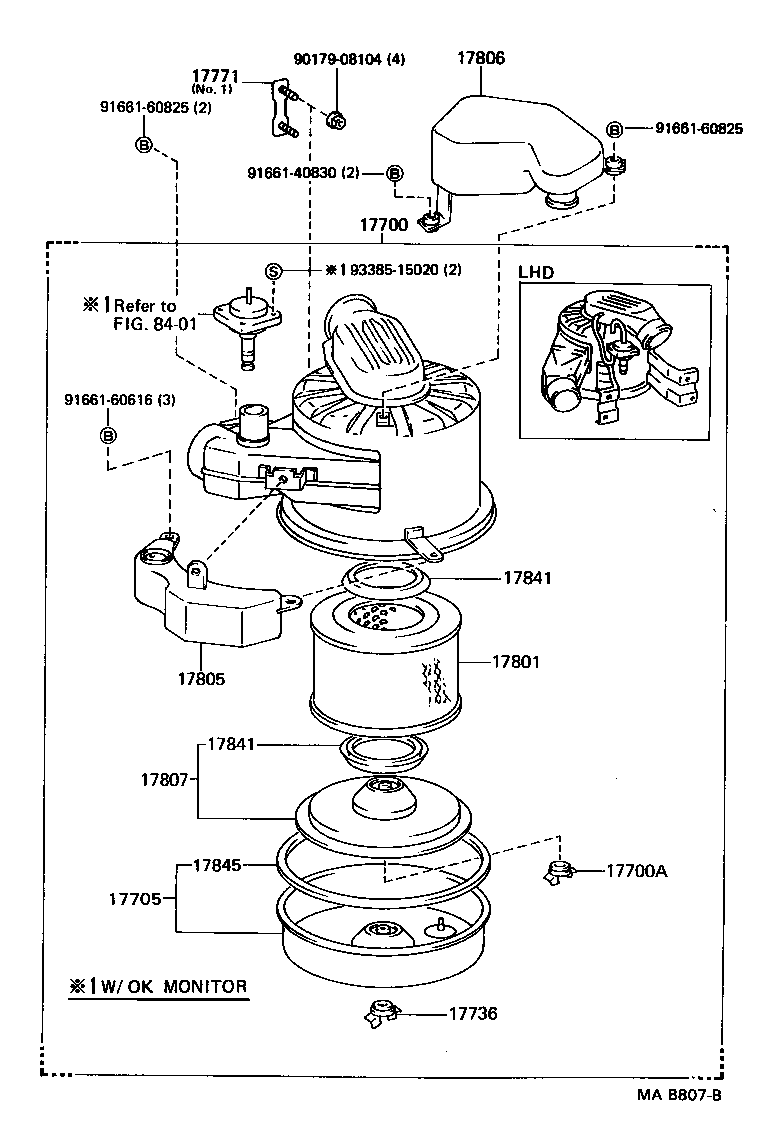

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-54350 |
Cleaner Assy, Air
1987-08 → 1992-08
ended
|
3Y YY61 RHD | — | |
| 17700-54350 |
Cleaner Assy, Air
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17700-54360 |
Cleaner Assy, Air
1987-08 → 1995-05
ended
|
3Y YY52,61 LHD | — | |
| 17700-54380 |
Cleaner Assy, Air
1987-08 → 1988-08
ended
|
2L LY60 RHD | — | |
| 17700-54390 |
Cleaner Assy, Air
1987-08 → 1988-08
ended
|
2L LY60 LHD | — | |
| 17700-54540 |
Cleaner Assy, Air
1988-08 → 1995-05
ended
|
3L LY61 RHD | — | |
| 17700-54550 |
Cleaner Assy, Air
1988-08 → 1995-05
ended
|
3L LY61 LHD | — | |
| 17700-71110 |
Cleaner Assy, Air
1992-08 → 1995-05
ended
|
3Y YY61 WT | — | |
| 17700-71110 note |
Cleaner Assy, Air
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1987-08 → 1995-05
ended
|
2L,3L LY6# | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17701-54200 |
Cap Sub-assy, Air Cleaner
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17701-54200 |
Cap Sub-assy, Air Cleaner
1987-08 → 1995-05
ended
|
2L LY60 | — | |
| 17705-54260 |
Cap Sub-assy, Air Cleaner
1988-08 → 1995-05
ended
|
3L LY61 | — | |
| 17736 — Nut, Air Cleaner Case | ||||
| 90175-06003 |
Nut, Air Cleaner Case
1987-08 → 1995-05
ended
|
2L,3L LY6# | — | |
| 90175-06003 |
Nut, Air Cleaner Case
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17771 — Bracket, Air Cleaner Inlet Duct | ||||
| 17771-54010 note |
Bracket, Air Cleaner Inlet Duct
1987-08 → 1992-08
ended
|
2L LY60 | — | |
| 17771-54010 note |
Bracket, Air Cleaner Inlet Duct
1987-08 → 1992-08
ended
|
3Y YY52,61 | — | |
| 17771-54010 note |
Bracket, Air Cleaner Inlet Duct
1992-08 → 1995-05
ended
|
3Y YY61 WT | — | |
| 17771-54010 note |
Bracket, Air Cleaner Inlet Duct
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17771-54010 note |
Bracket, Air Cleaner Inlet Duct
1992-08 → 1995-05
ended
|
3Y YY52,61 ST | — | |
| 17771-54050 note |
Bracket, Air Cleaner Inlet Duct
1988-08 → 1995-05
ended
|
3L LY61 | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1993-02 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1993-02 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1993-02 → 1995-05
ended
|
3Y YY61 LHD T3;3Y +2 | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1987-08 → 1995-05
ended
|
2L LY60 | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1987-08 → 1993-02
ended
|
3Y YY52,61 | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1987-08 → 1993-02
ended
|
3L LY61 | — | |
| 17771-71010 note |
Bracket, Air Cleaner Inlet Duct
1993-02 → 1995-05
ended
|
3L LY61 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-31060 |
Element Sub-assy, Air Cleaner Filter
1992-08 → 1995-05
ended
|
3Y YY61 WT | — | |
| 17801-31060 note |
Element Sub-assy, Air Cleaner Filter
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17801-54070 |
Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-08
ended
|
2L LY60 | — | |
| 17801-54070 |
Element Sub-assy, Air Cleaner Filter
1987-08 → 1992-08
ended
|
3Y YY52,61 | — | |
| 17801-54070 |
Element Sub-assy, Air Cleaner Filter
1992-08 → 1995-05
ended
|
3Y YY52,61 ST | — | |
| 17801-58010 |
Element Sub-assy, Air Cleaner Filter
1988-08 → 1995-05
ended
|
3L LY61 | — | |
| 17805 — Connector Sub-assy, Intake Air | ||||
| 17805-54130 |
Connector Sub-assy, Intake Air
1988-08 → 1995-05
ended
|
3L LY61 LHD | — | |
| 17805-54160 |
Connector Sub-assy, Intake Air
1988-08 → 1995-05
ended
|
3L LY61 RHD | — | |
| 17805-71020 |
Connector Sub-assy, Intake Air
1987-08 → 1992-08
ended
|
3Y YY52,61 | — | |
| 17805-71020 |
Connector Sub-assy, Intake Air
1992-08 → 1995-05
ended
|
3Y YY52,61 ST | — | |
| 17805-72030 note |
Connector Sub-assy, Intake Air
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17805-72030 |
Connector Sub-assy, Intake Air
1992-08 → 1995-05
ended
|
3Y YY61 WT | — | |
| 17806 — Pipe Sub-assy, Air Cleaner, NO.2 | ||||
| 17806-54040 |
Pipe Sub-assy, Air Cleaner, NO.2
1987-08 → 1995-05
ended
|
2L LY60 LHD | — | |
| 17806-54040 |
Pipe Sub-assy, Air Cleaner, NO.2
1987-08 → 1995-05
ended
|
3Y YY52,61 LHD | — | |
| 17806-54070 |
Pipe Sub-assy, Air Cleaner, NO.2
1988-08 → 1995-05
ended
|
3L LY61 LHD | — | |
| 17806-54080 |
Pipe Sub-assy, Air Cleaner, NO.2
1988-08 → 1995-05
ended
|
3L LY61 RHD | — | |
| 17886-71010 |
Pipe Sub-assy, Air Cleaner, NO.2
1992-08 → 1995-05
ended
|
3Y YY61 WT | — | |
| 17886-71010 note |
Pipe Sub-assy, Air Cleaner, NO.2
1992-08 → 1995-05
ended
|
3Y YY61 RHD ST | — | |
| 17807 — Plate Sub-assy, Air Cleaner Filter Set | ||||
| 17807-54010 |
Plate Sub-assy, Air Cleaner Filter Set
1987-08 → 1995-05
ended
|
2L LY60 | — | |
| 17807-54010 |
Plate Sub-assy, Air Cleaner Filter Set
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17807-58010 |
Plate Sub-assy, Air Cleaner Filter Set
1988-08 → 1995-05
ended
|
3L LY61 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-44030 |
Gasket, Filter Element
1988-08 → 1995-05
ended
|
3L LY61 | — | |
| 17841-54010 |
Gasket, Filter Element
1987-08 → 1995-05
ended
|
2L LY60 | — | |
| 17841-54010 |
Gasket, Filter Element
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-54010 |
Gasket, Air Cleaner Cap
1987-08 → 1995-05
ended
|
2L LY60 | — | |
| 17845-54010 |
Gasket, Air Cleaner Cap
1987-08 → 1995-05
ended
|
3Y YY52,61 | — | |
| 17845-56020 |
Gasket, Air Cleaner Cap
1988-08 → 1995-05
ended
|
3L LY61 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
