Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

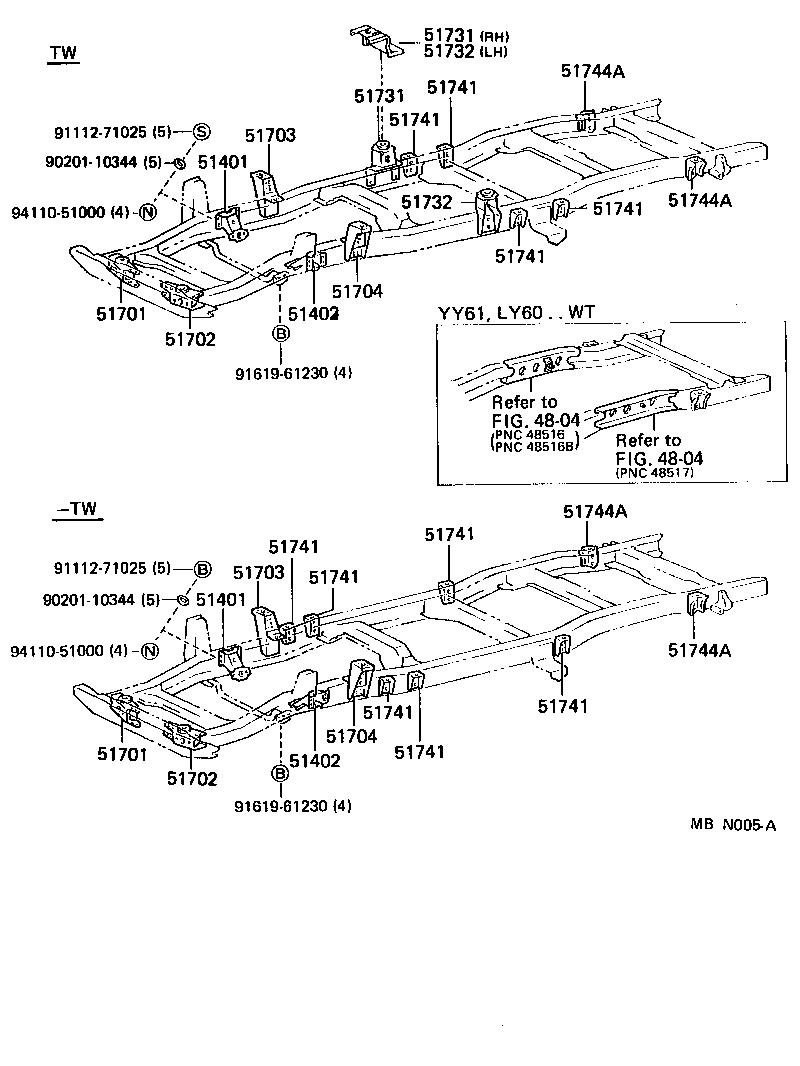

Exploded illustration MBN005A 51731 — BRACKET, CAB REAR MOUNTING, RH (4 parts) 51732 — BRACKET, CAB REAR MOUNTING, LH (3 parts) 51744A — BRACKET, REAR BODY MOUNTING, NO.4 (1 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51731 — BRACKET, CAB REAR MOUNTING, RH (4 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 9111271025 — not listed in this catalogue 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (2 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (1 parts) 9020110344 — not listed in this catalogue 51744A — BRACKET, REAR BODY MOUNTING, NO.4 (1 parts) 51732 — BRACKET, CAB REAR MOUNTING, LH (3 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 9411051000 — not listed in this catalogue 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (1 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (1 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (1 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (1 parts) 9161961230 — not listed in this catalogue 4804 — not listed in this catalogue 4804 — not listed in this catalogue 51744A — BRACKET, REAR BODY MOUNTING, NO.4 (1 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 9111271025 — not listed in this catalogue 51703 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH (2 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 9020110344 — not listed in this catalogue 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (1 parts) 51744A — BRACKET, REAR BODY MOUNTING, NO.4 (1 parts) 9411051000 — not listed in this catalogue 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51704 — BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH (1 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (2 parts) 51701 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH (1 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (1 parts) 51702 — BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH (1 parts) 9161961230 — not listed in this catalogue
MBN005A · 30 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51401-25150 Bracket Sub-assy, Engine Front Mounting, RH
1987-08 → 1995-05 ended
LY6#,YY52,61 —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51401-25150 Bracket Sub-assy, Engine Front Mounting, LH
1987-08 → 1995-05 ended
LY6#,YY52,61 —
51701 — Bracket Sub-assy, Cab Mounting, NO.1 RH
51701-25050 Bracket Sub-assy, Cab Mounting, NO.1 RH
1987-08 → 1995-05 ended
LY6#,YY52,61 —
51702 — Bracket Sub-assy, Cab Mounting, NO.1 LH
51702-25010 Bracket Sub-assy, Cab Mounting, NO.1 LH
1987-08 → 1995-05 ended
LY6#,YY52,61 —
51703 — Bracket Sub-assy, Cab Mounting, NO.2, RH
51703-25090 Bracket Sub-assy, Cab Mounting, NO.2, RH
1987-08 → 1995-05 ended
LY6#,YY61 T2,T3 —
51703-25100 Bracket Sub-assy, Cab Mounting, NO.2, RH
1987-08 → 1995-05 ended
LY6#,YY52,61 TW —
51704 — Bracket Sub-assy, Cab Mounting, NO.2 LH
51704-25030 Bracket Sub-assy, Cab Mounting, NO.2 LH
1987-08 → 1995-05 ended
LY6#,YY61 T2,T3 —
51731 — Bracket, Cab Rear Mounting, RH
51705-25030 note Bracket, Cab Rear Mounting, RH
1987-08 → 1995-05 ended
LY6#,YY61 TW —
51705-25040 note Bracket, Cab Rear Mounting, RH
1987-08 → 1995-05 ended
YY52 —
51705-95400 note Bracket, Cab Rear Mounting, RH
1987-08 → 1995-05 ended
YY61 TW ST;LY6#,YY52 TW —
51705-95400 note Bracket, Cab Rear Mounting, RH
1989-10 → 1995-05 ended
YY61 TW WT —
51732 — Bracket, Cab Rear Mounting, LH
51706-25020 note Bracket, Cab Rear Mounting, LH
1987-08 → 1995-05 ended
LY6#,YY52,61 TW —
51706-95400 note Bracket, Cab Rear Mounting, LH
1987-08 → 1995-05 ended
YY61 TW ST;LY6#,YY52 TW —
51706-95400 note Bracket, Cab Rear Mounting, LH
1989-10 → 1995-05 ended
YY61 TW WT —
51741 — Bracket, Rear Body Mounting, NO.1
51741-25040 Bracket, Rear Body Mounting, NO.1
1987-08 → 1995-05 ended
LY6#,YY52,61 TW —
51741-25040 Bracket, Rear Body Mounting, NO.1
1987-08 → 1995-05 ended
LY6#,YY61 T2,T3 —
51744A — Bracket, Rear Body Mounting, NO.4
51744-25020 Bracket, Rear Body Mounting, NO.4
1987-08 → 1995-05 ended
LY6#,YY52,61 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
