Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

44 part groups · 15 illustrations

Illustrations

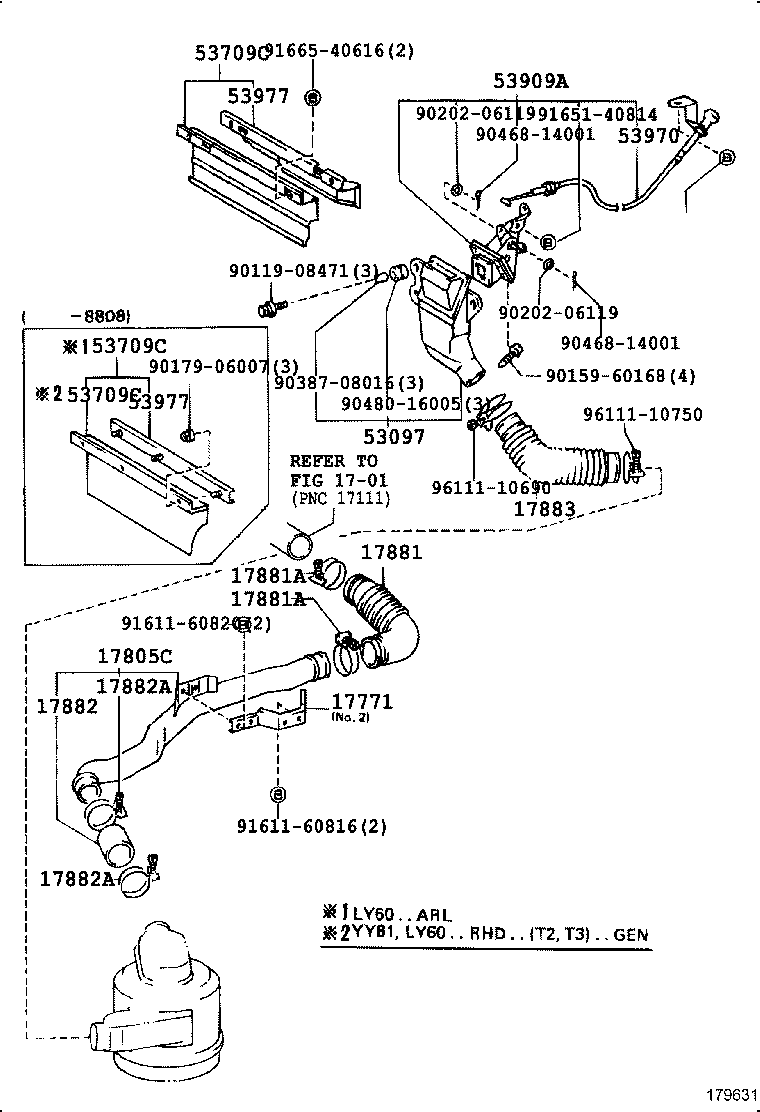

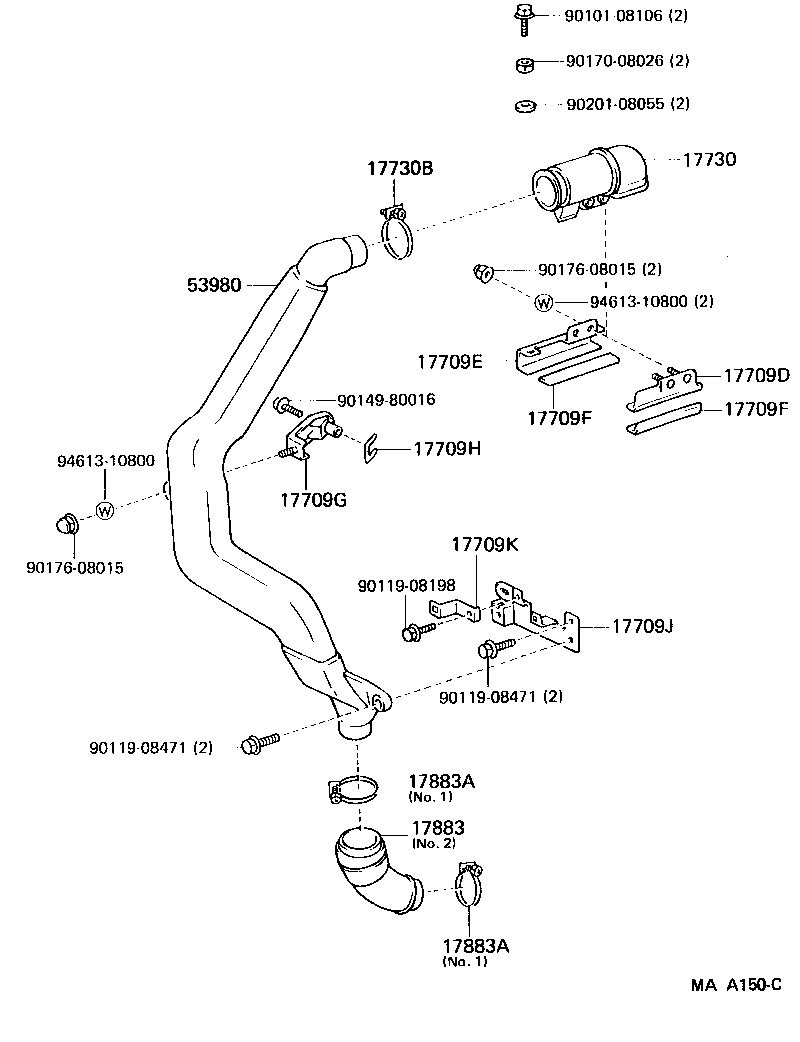

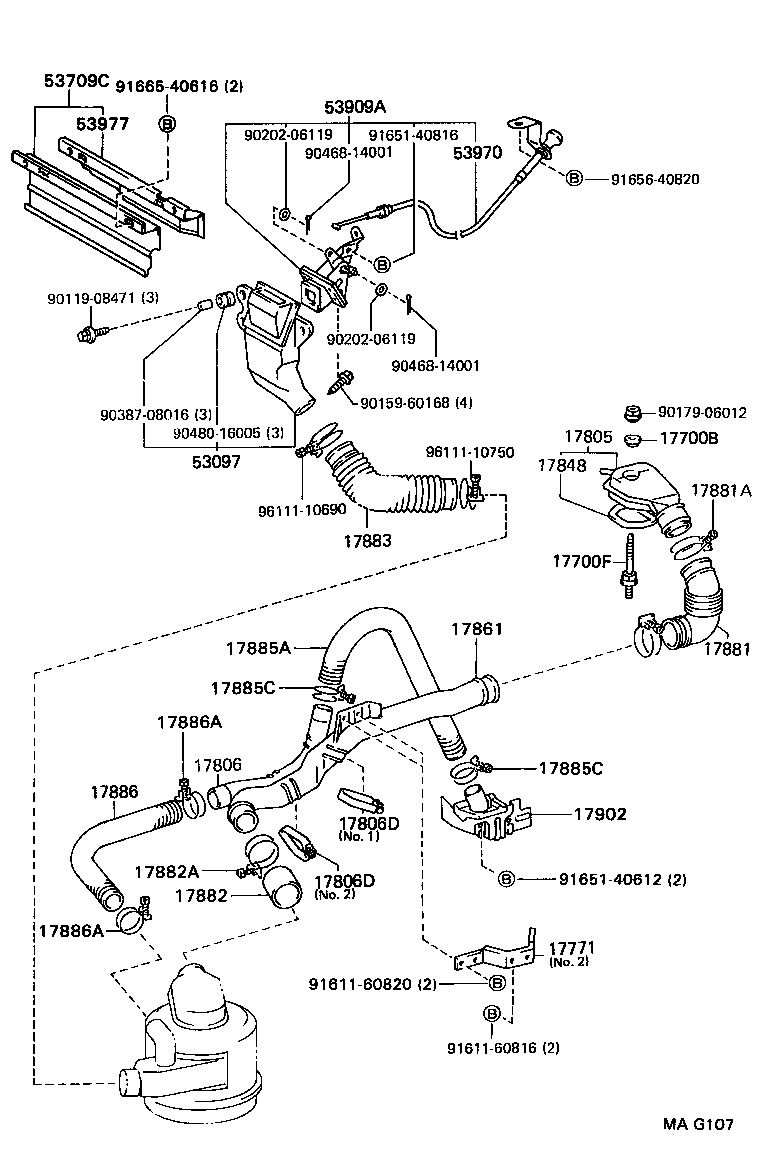

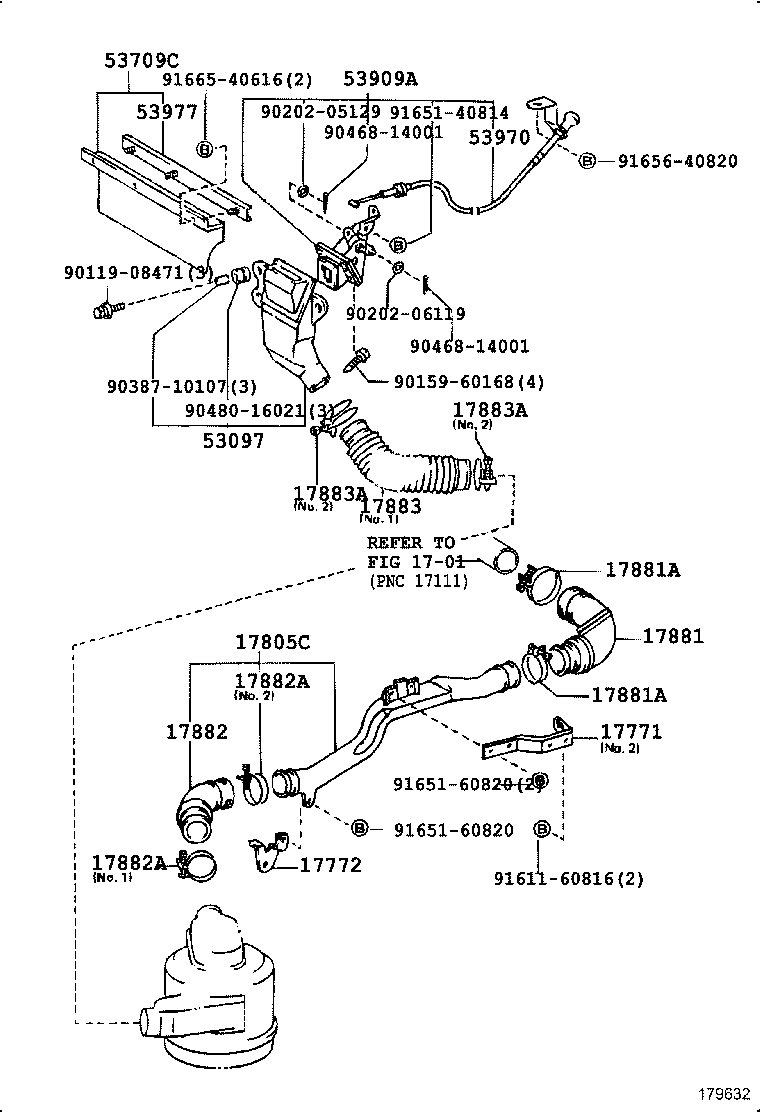

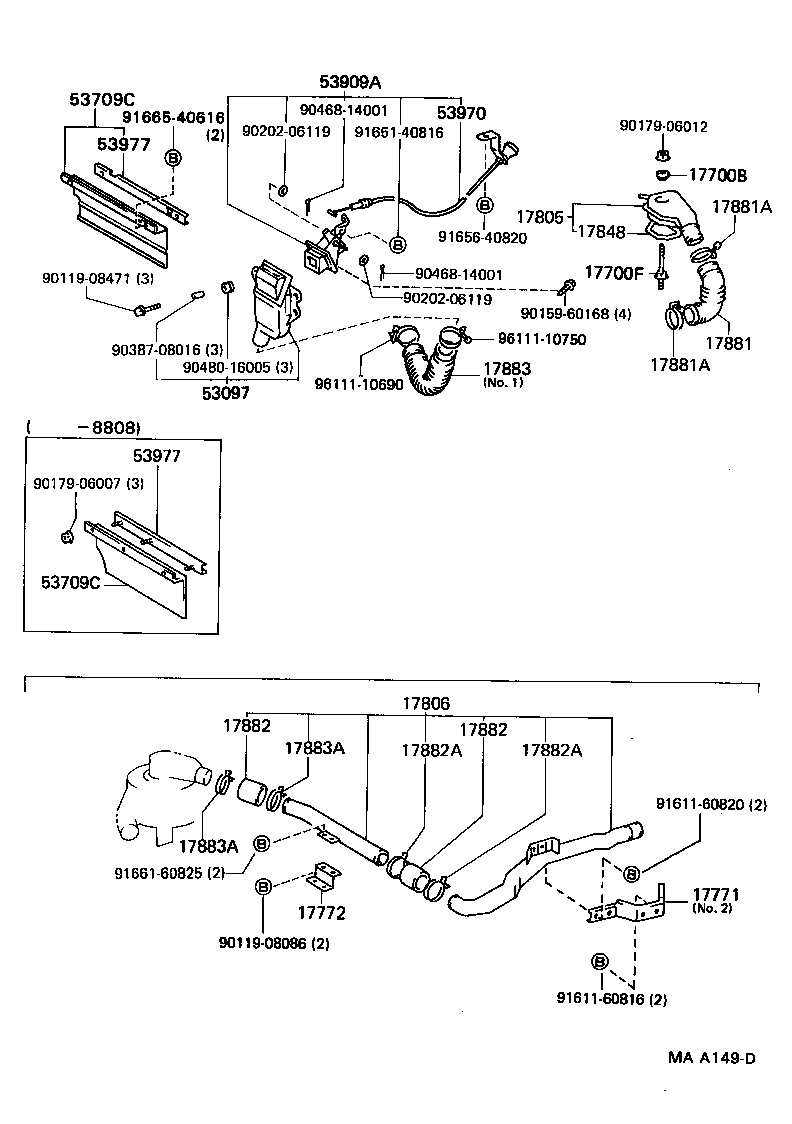

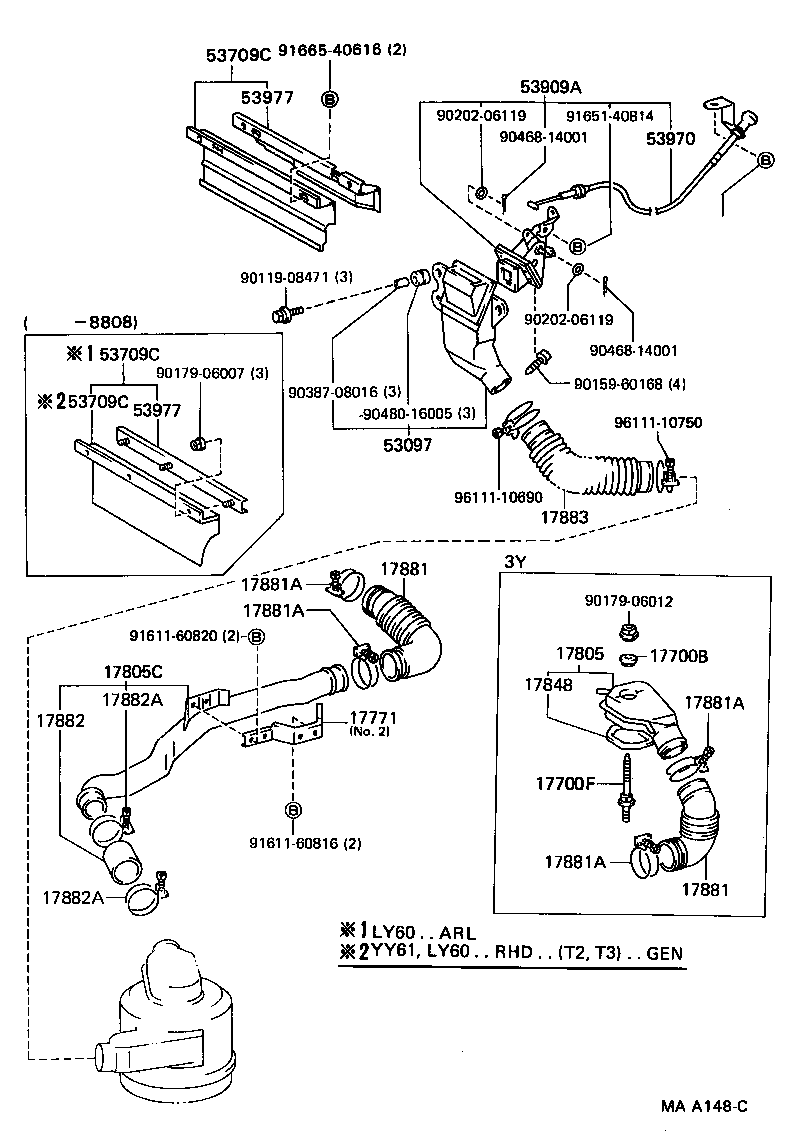

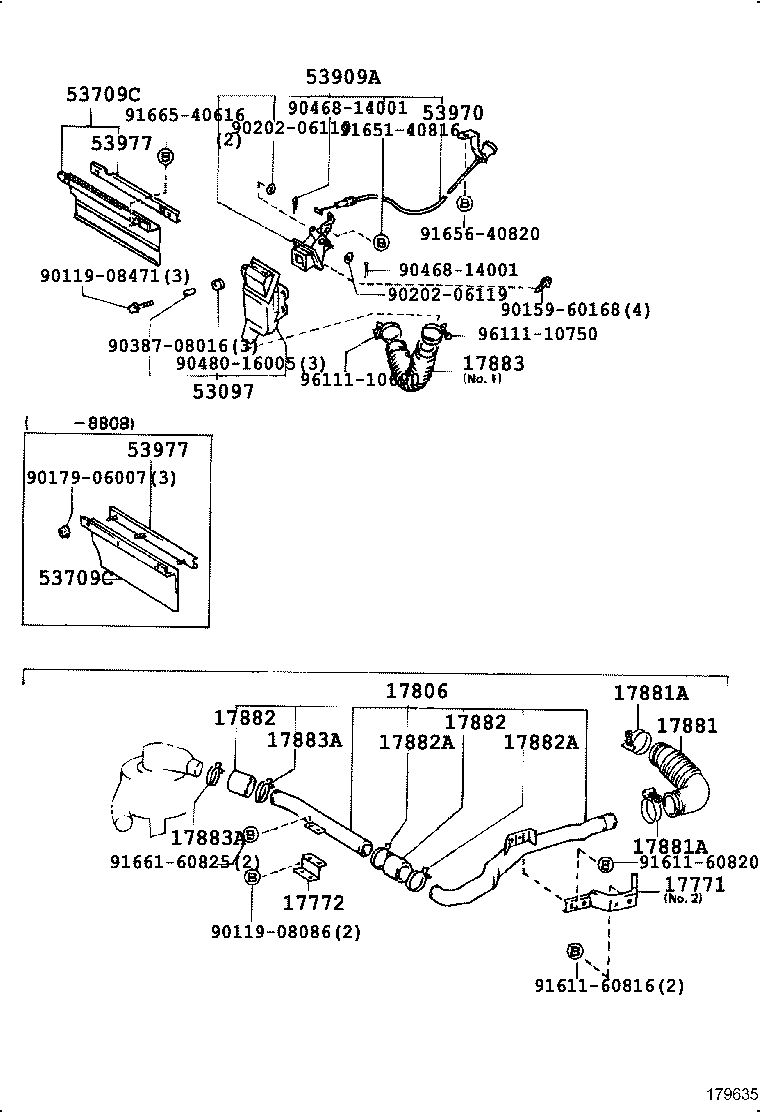

Figure MAA147D MAA147D 1987-08 → 1988-08 Figure 179631 179631 1987-08 → 1988-08 Figure 179635 179635 1987-08 → 1988-08 Figure MAA150C MAA150C 1987-08 → — Figure MAB807B MAB807B 1988-08 → — Figure 179632 179632 1988-08 → — Figure MAA147D MAA147D 1987-08 → 1988-08 Figure MAA147D MAA147D 1988-08 → — Figure MAA148C MAA148C 1987-08 → 1988-08 Figure MAA148C MAA148C 1988-08 → 1992-08 Figure MAA148C MAA148C 1992-08 → — Figure MAG107 MAG107 1992-08 → — Figure MAA149D MAA149D 1987-08 → 1988-08 Figure MAA149D MAA149D 1988-08 → — Figure MAA150C MAA150C 1987-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709F Pad, Air Cleaner Inlet, NO.2
17709G Bracket Sub-assy, Air Cleaner Inlet Pipe
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17736 Nut, Air Cleaner Case
17771 Bracket, Air Cleaner Inlet Duct
17772 Bracket, Intake Air Connector, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885A Hose, Air Cleaner, NO.5
17885C Clamp(FOR AIR CLEANER HOSE, NO.5)
17886 Hose, Air Cleaner, NO.6
17886A Clamp(FOR AIR CLEANER HOSE, NO.6)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
53097 Inlet Sub-assy
53709C Cover Sub-assy, Air Cleaner Inlet
53909A Bracket Sub-assy, Air Cleaner Shutter, NO.1
53970 Cable Assy, Air Cleaner Inlet Shutter Control
53977 Plate, Air Cleaner Inlet Cover
53980 Inlet Assy, Air Cleaner Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
