Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 6 illustrations

Illustrations

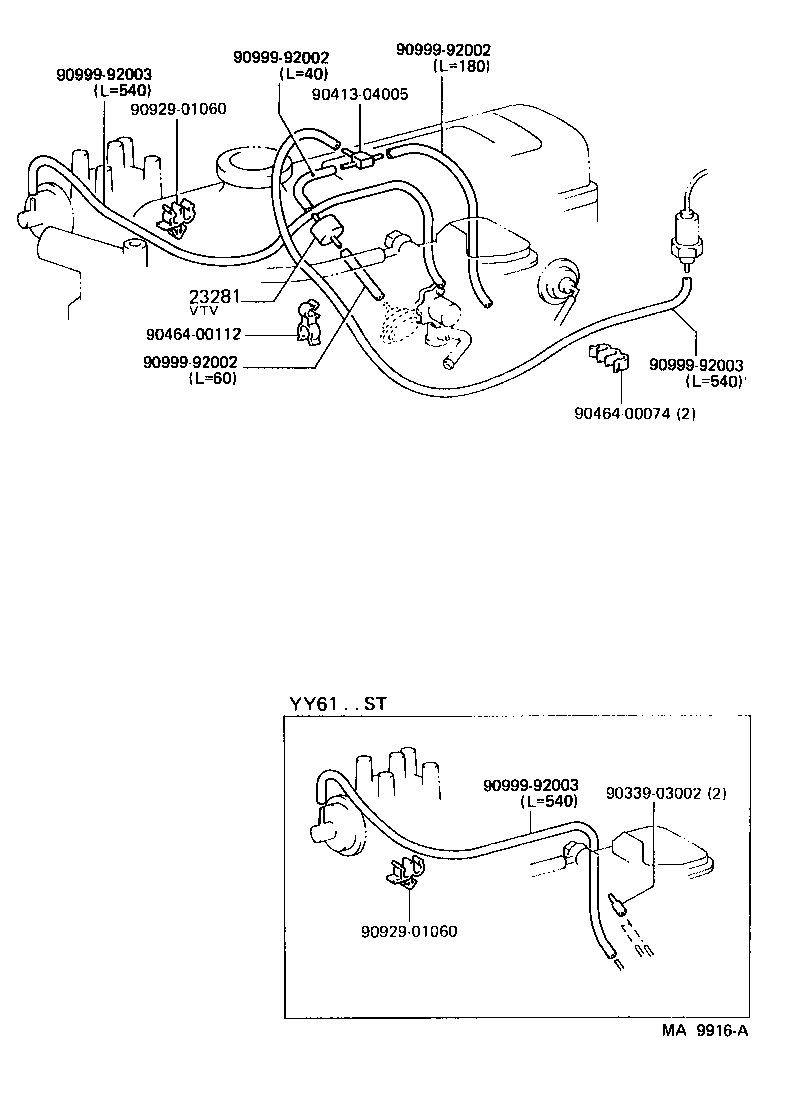

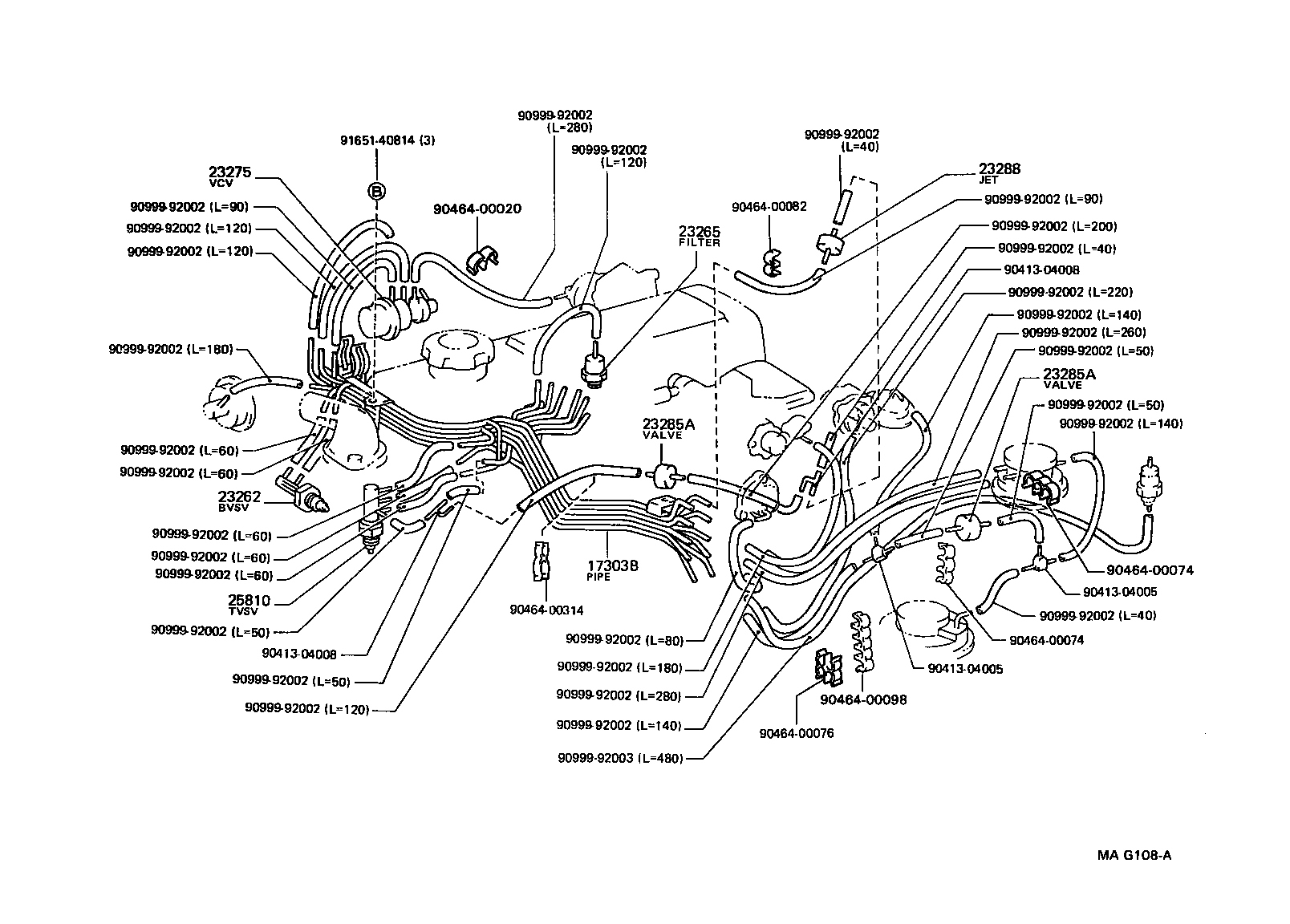

Figure MA9504B MA9504B 1987-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MA9916A MA9916A 1987-08 → 1992-08 Figure MA9916A MA9916A 1992-08 → — Figure MAG108A MAG108A 1992-08 → — Figure MA9917A MA9917A 1987-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
