Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 2 illustrations

Illustrations

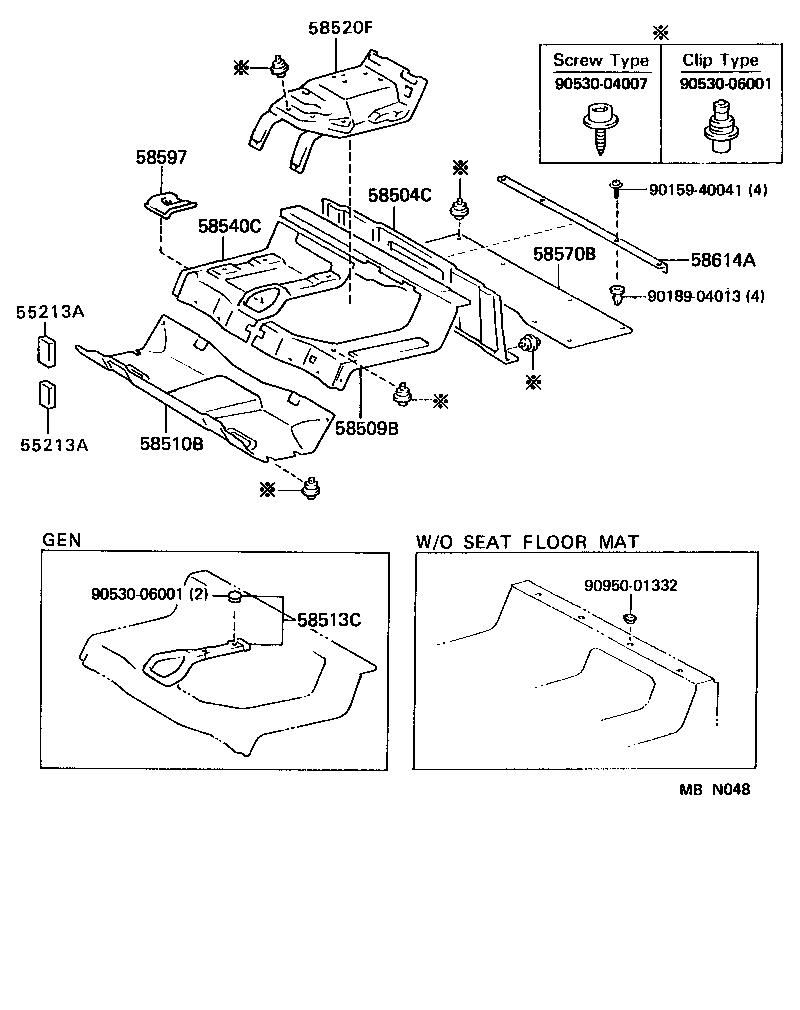

Figure MBN046B MBN046B 1987-08 → — Figure MBN048 MBN048 1987-08 → —

Part groups

PNCDescription
55213A Pad, Dash Panel Silencer
58504C Mat Sub-assy, Header
58509B Mat Sub-assy, Seat Floor
58510B Mat, Front Floor, Front
58513C Mat, Floor, Front Center
58520F Mat Assy, Engine Cover
58540C Mat Assy, Floor, Rear
58570B Mat Assy, Rear Floor
58597 Plate, Seat Track Set
58614A Plate, Mat Set, NO.4
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
