Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

28 part groups · 4 illustrations

Illustrations

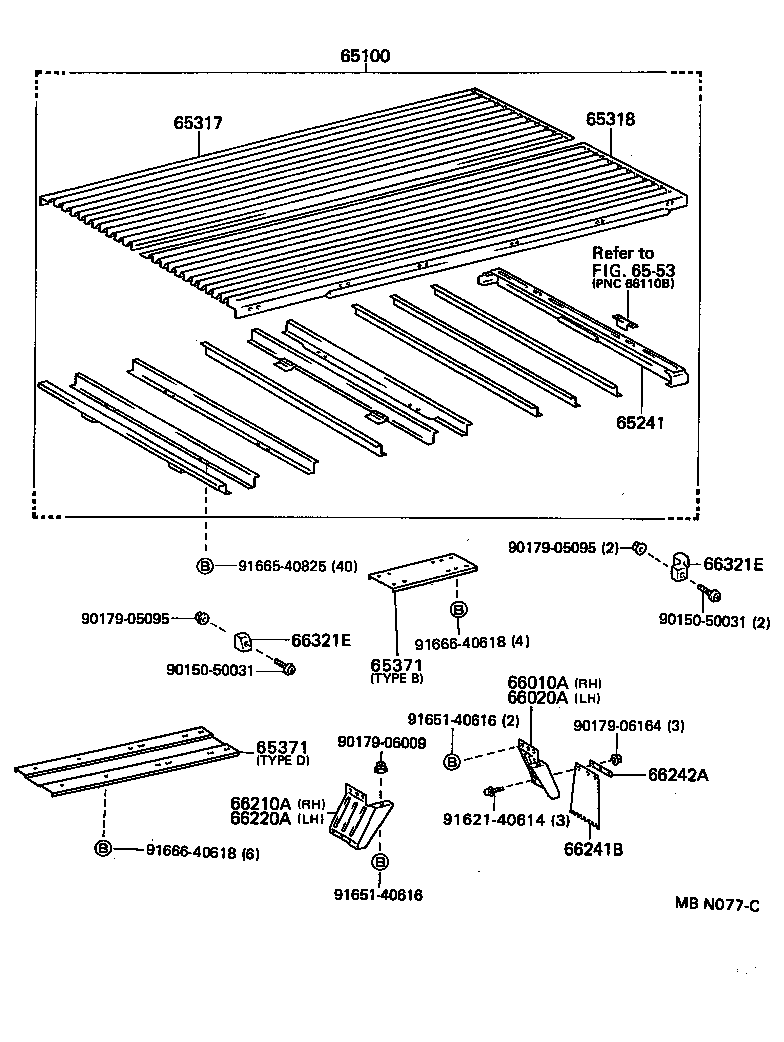

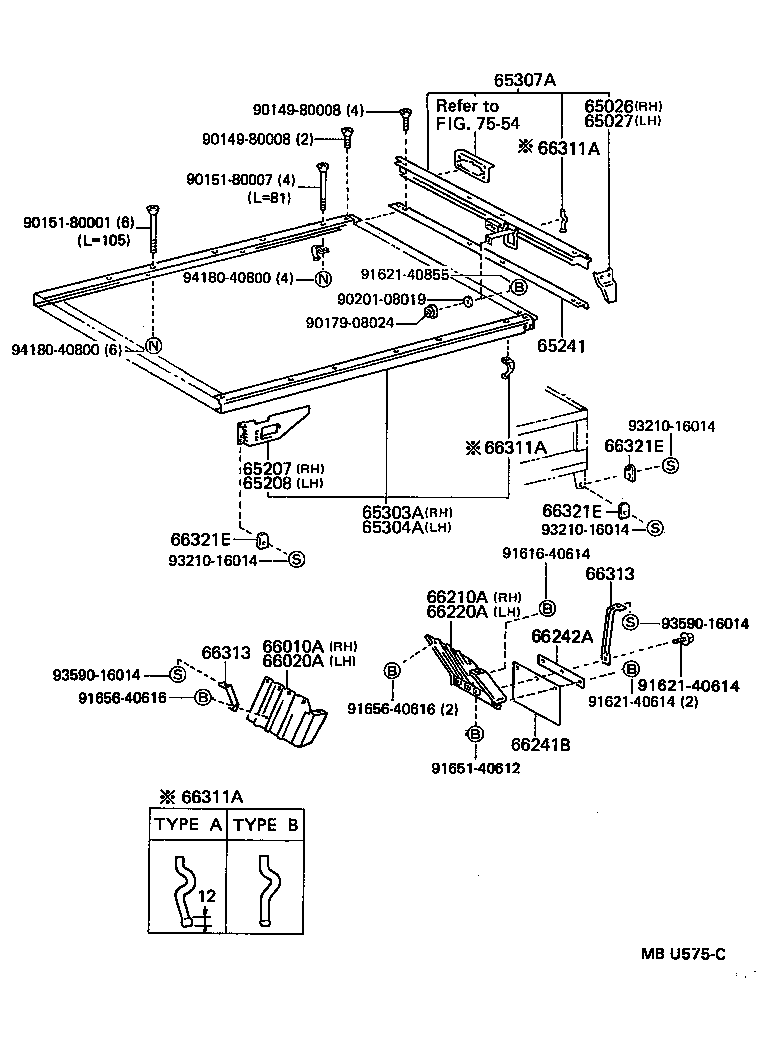

Figure MBN075C MBN075C 1987-08 → — Figure MBN077C MBN077C 1987-08 → — Figure MBN080A MBN080A 1987-08 → — Figure MBU575C MBU575C 1989-10 → —

Part groups

PNCDescription
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65207 Bracket Sub-assy, Guard Frame, RH
65208 Bracket Sub-assy, Guard Frame, LH
65241 Sill, Rear Cross
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65329 Bracket, Rear Fender
65371 Insulator, Rear Floor
65372 Stay, Rear Floor Insulator
66010A Fender Assy, Rear NO.2 RH
66016 Gusset Sub-assy, Gate Hinge, RH
66017 Gusset Sub-assy, Gate Hinge, LH
66020A Fender Assy, Rear NO.2 LH
66210A Fender Assy, Rear NO.1 RH
66220A Fender Assy, Rear NO.1 LH
66241B Baffle, Rubber
66242A Plate, Baffle Rubber
66311A Hook, Rope, NO.1
66313 Support, Rear Fender
66321E Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
