Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

26 part groups · 3 illustrations

Illustrations

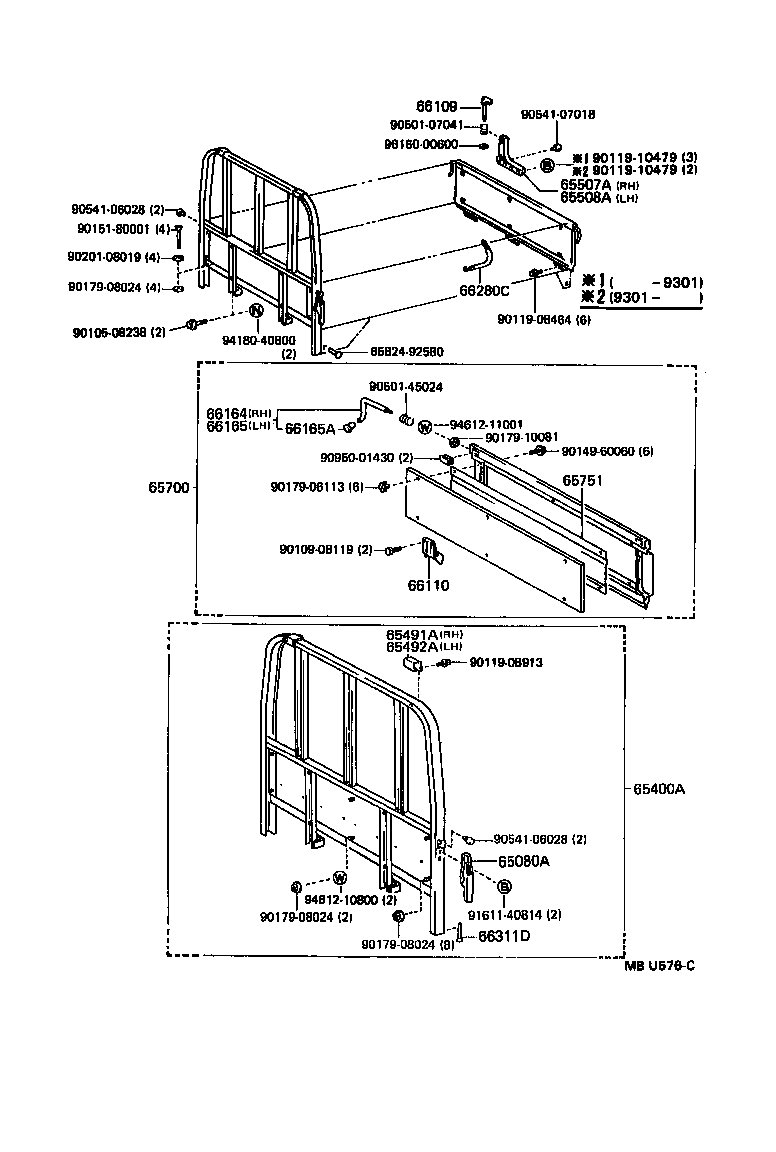

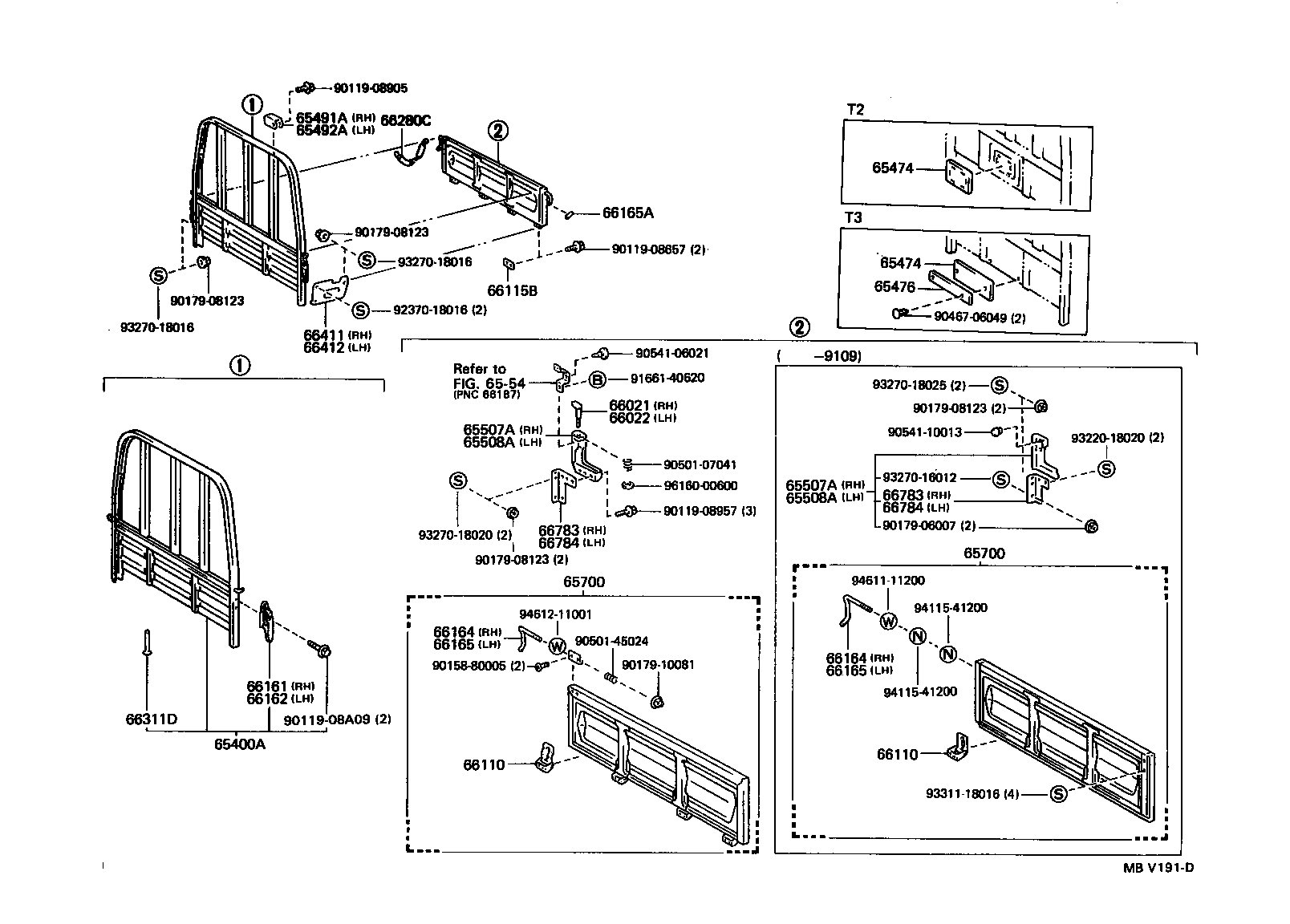

Figure MBN087A MBN087A 1987-08 → — Figure MBU576C MBU576C 1989-10 → — Figure MBV191D MBV191D 1987-08 → —

Part groups

PNCDescription
65080A Handle Assy, Side Gate Latch
65400A Guard Assy, Rear Body
65474 Insulator, Header
65476 Insulator, Header Board, NO.2
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65751 Panel, Tail Gate
66021 Handle Sub-assy, Side Gate Support Corner, RH
66022 Handle Sub-assy, Side Gate Support Corner, LH
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66115B Retainer, Gate Hinge
66121A Bolt, Tail Gate Male
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280C Chain Assy, Tail Gate
66311D Hook, Rope
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
