Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

21 part groups · 3 illustrations

Illustrations

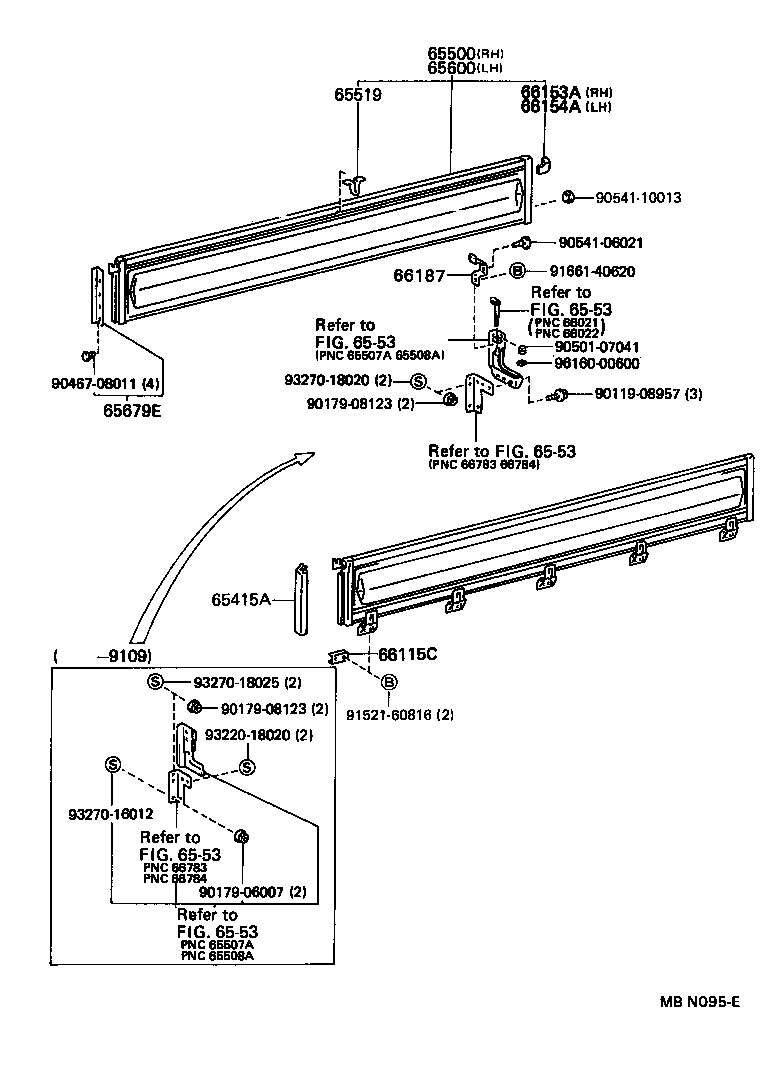

Figure MBN093A MBN093A 1987-08 → — Figure MBN099B MBN099B 1989-10 → — Figure MBN095E MBN095E 1987-08 → —

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65415A Protector, Guard Flame
65500 Panel Assy, Rear Body Side, RH
65519 Bracket, Top Rail
65577 Retainer, Tail Gate Latch Female
65600 Panel Assy, Rear Body Side, LH
65621A Panel, Side Gate
65679E Seal, Side Gate
66110C Hinge Assy, Side Gate, NO.1 RH
66115C Retainer, Gate Hinge
66120C Hinge Assy, Side Gate, NO.1 LH
66153A Latch, Tail Gate Female, RH
66154A Latch, Tail Gate Female, LH
66187 Handle, Side Gate Latch, Center NO.2
66311E Hook, Rope
66332 Cushion, Rubber
66783 Bracket, Side Gate Support, RH
66784 Bracket, Side Gate Support, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
