Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

3 part groups · 3 illustrations

Illustrations

Figure MBN101A

MBN101A 1987-08 → —

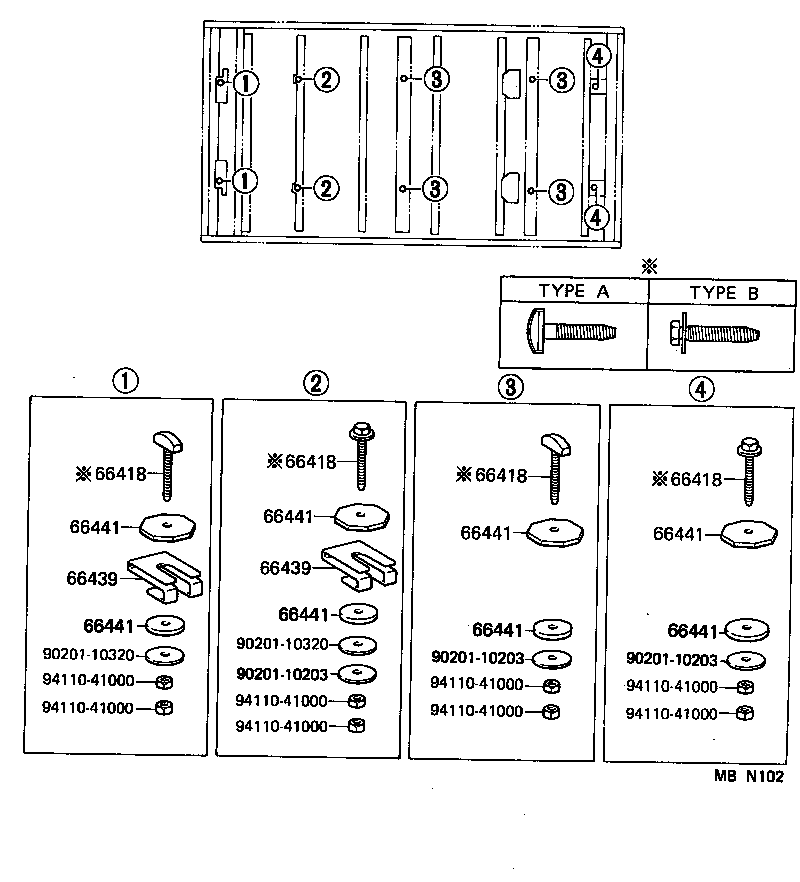

Figure MBN102

MBN102 1987-08 → —

Figure MBN104

MBN104 1987-08 → —

Part groups

PNC	Description
66418	Bolt, Mounting
66439	Shim, Support
66441	Shim, Mounting, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
