Toyota DYNA150

1987-08 → 1995-05 · chassis YY5#,6#,LY6# · catalogue 731350 · General

Discontinued model Data version 1995-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

31 part groups · 3 illustrations

Illustrations

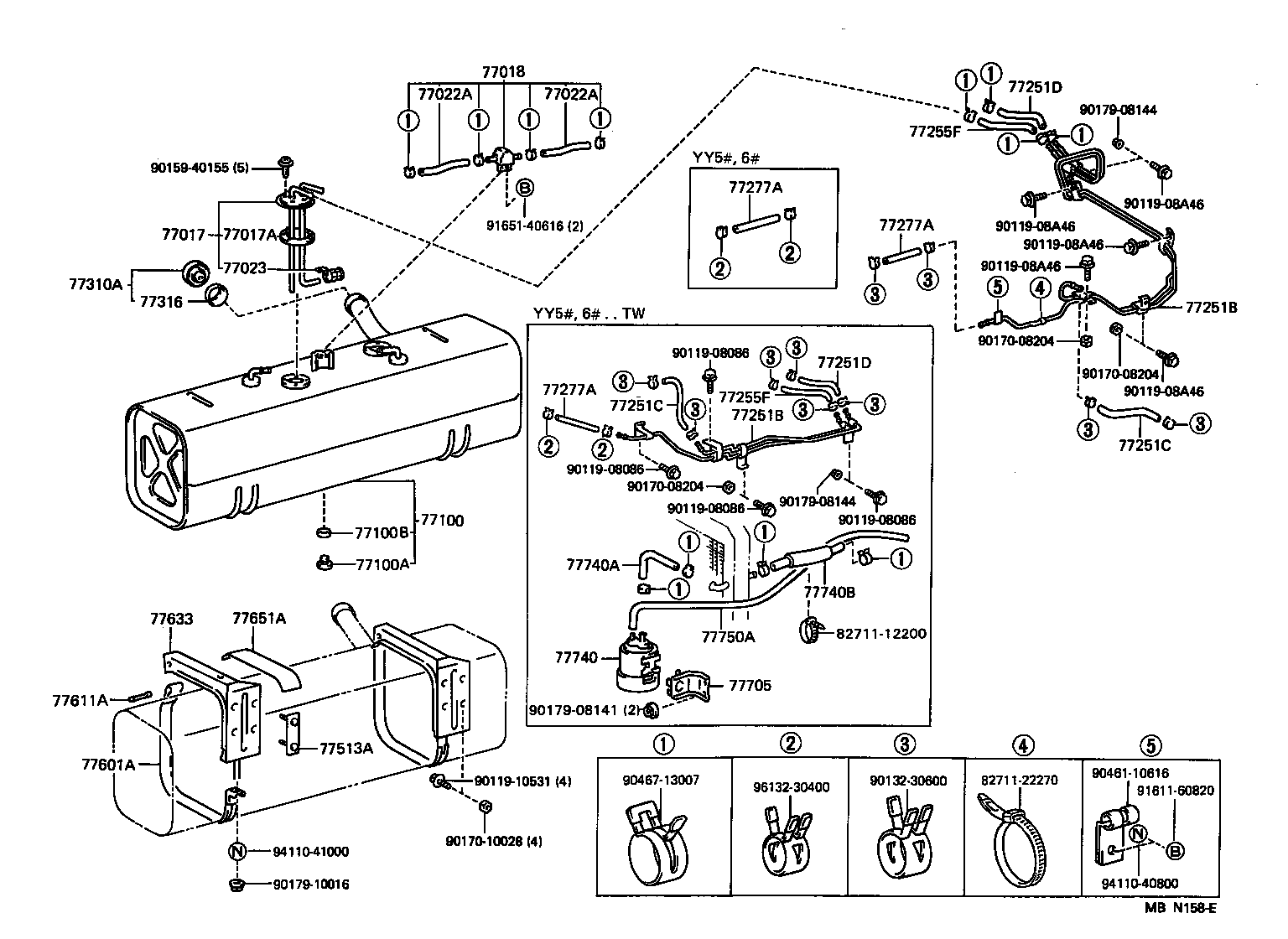

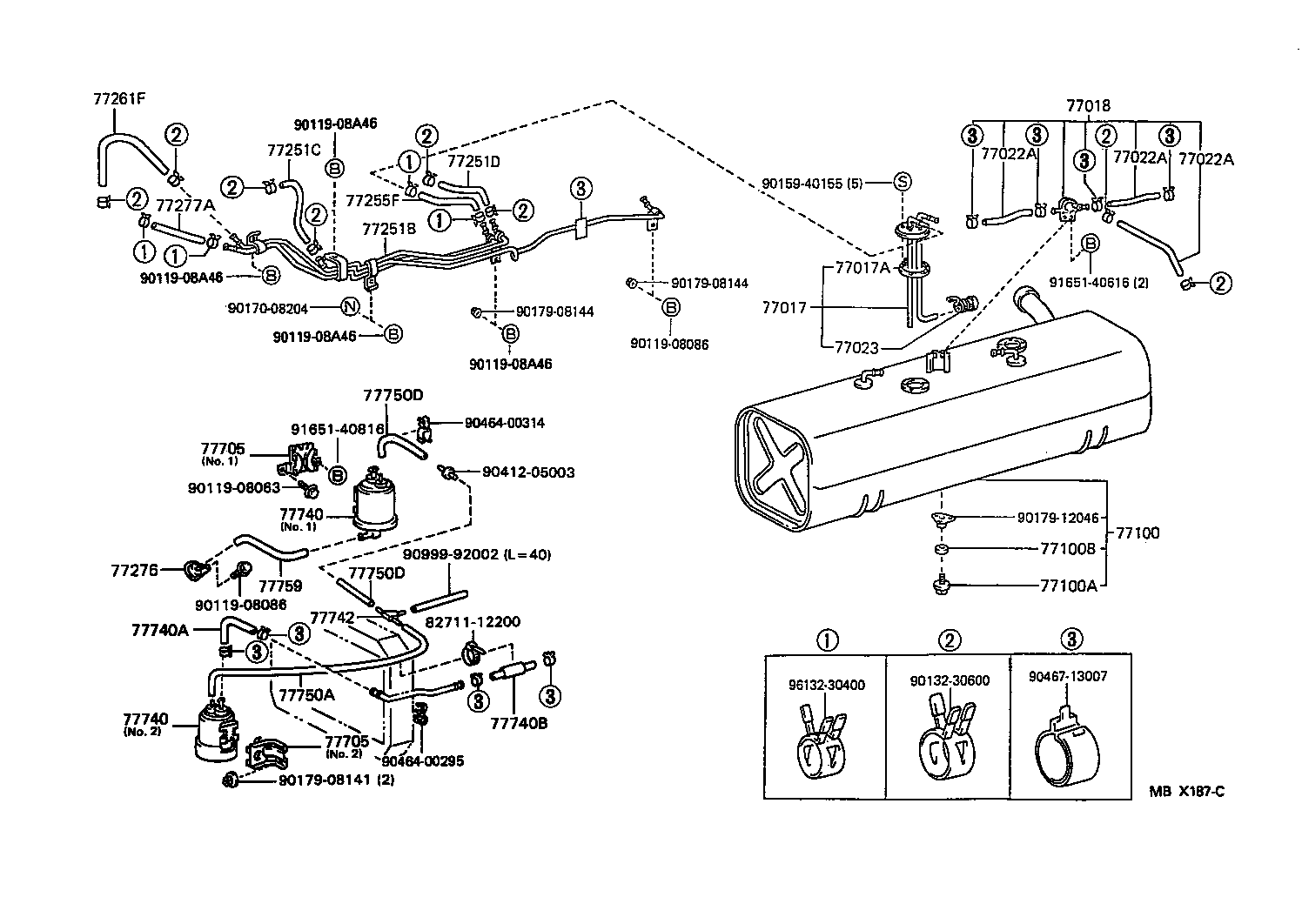

Figure MBN155F MBN155F 1987-08 → — Figure MBN158E MBN158E 1987-08 → — Figure MBX187C MBX187C 1992-08 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77276 Protector, Fuel Hose
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77513A Retainer, Tank Bracket
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77611A Pin (FOR FUEL TANK BAND)
77633 Stay, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77705 Bracket Sub-assy, Charcoal Canister
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77742 Way, 3(FOR CANISTER)
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750D Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
77759 Hose, Charcoal Canister
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
